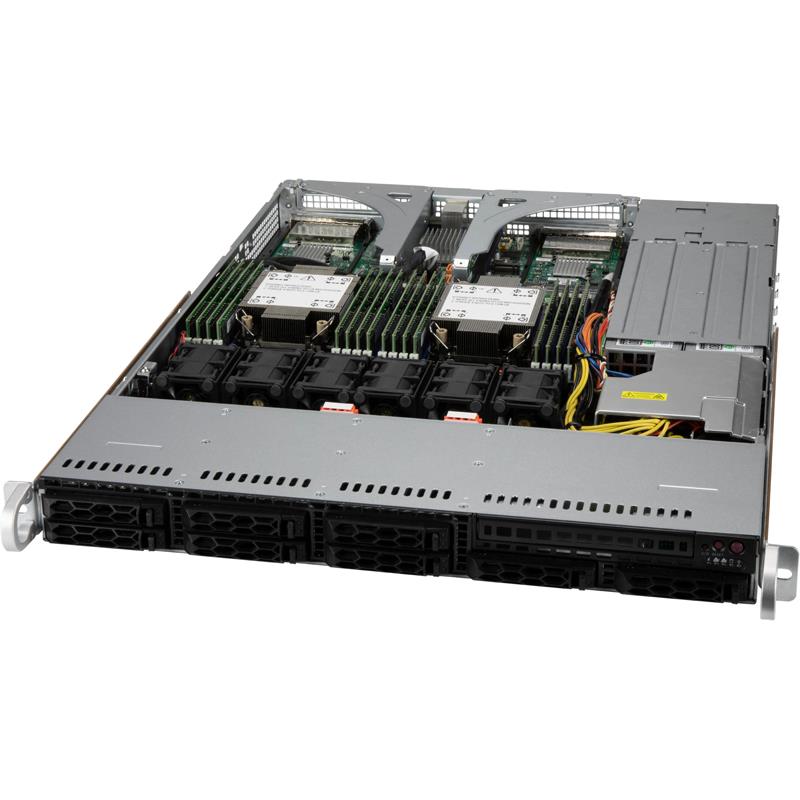

Supermicro CSE-LB13AC2-R860AW 1U Rackmount 800W/860W Power Supply

Equipped with 800W/860W Power Supply Platinum level
Offer 8x hot-swappable SAS3/SATA drive bay drive bays
Optimized for CloudDC motherboard with S-AIOM support
Two Full-height expansion slots, Two S-AIOM expansion slot

1U Rackmount 800W/860W Redundant Platinum Certified Power Supply, Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4", support single and dual Intel / AMD processors, Includes: 8x 2.5in hot-swap SAS3/SATA drive bay, 2x Full-height, 2x S-AIOM expansion slot (CSE-LB13AC2-R860AW)

1. SAS3 12Gb/s and NVMe support 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
2. 8 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
3. SAS or enterprise SATA HDD only recommended
4. 1U SAS/SATA Backplane with SES2 support
5. 1U 860W Redundant power supply Platinum level, 24Pin output
6. 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s)
7. 4 x 40x56mm counter-rotation PWM fan(s)by default, 2 x as optional
8. Support optional 1x Slim SATA DVD or 1x 2.5" HDD with DVD dummy tray kit
9. Support Service Tag for system information

Extra Specifications for Supermicro CSE-LB13AC2-R860AW 1U Rackmount 800W/860W Power Supply

Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Power Supply
Certification	Platinum Certified
Power Efficiency	94+%
Total Output Power and Input	800W with Input 100 - 127Vac
	860W with Input 200 - 240Vac
	860W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	322 x 54.5 x 40.25 mm
Output Type	Backplanes (gold finger)
+12V	Max: 71.6A / Min: 0A (200Vac - 240Vac)
	Max: 66.6A / Min: 0A (100Vac - 127Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	O/P: 12V/80
	+5V Max: 25A
	+3.3V Max: 25A
	-12V Max: 0.6A
	PDB-PT116-SL8824
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	UL/CUL
	UL/CB
Product SKUs
Product SKUs	CSE-LB13AC2-R860AW
Form Factor
Form Factor	1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
Dimensions
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	23.5" (597 mm)
Gross Weight	40 lbs (18.14 kg)
Packaging (W x H x L)	23.7" (602 mm) x 7.7" (196 mm) x 31.8" (808 mm)
Available Color	Black
Expansion Slots
Expansion Slots	2x Full-height expansion slot(s)
	2x S-AIOM expansion slot(s)
Drive Bays
Drive Bays	8x 2.5" hot-swap SAS3/SATA drive bay
Backplane
Backplane	8-Port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD Storage Devices
Front Panel
Button	Power On/Off button
	Unit Identification (UID) button
LED	Power status LED
	HDD activity LED
	2 Network Activity LEDs
	Unit Identification (UID) LED
Systems Cooling
Fans	4x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-LB13AC2-R860AW 1U Rackmount 800W/860W Power Supply

$ 1,153.00$ 1,153.001153.0USD

$ 1,153.00
