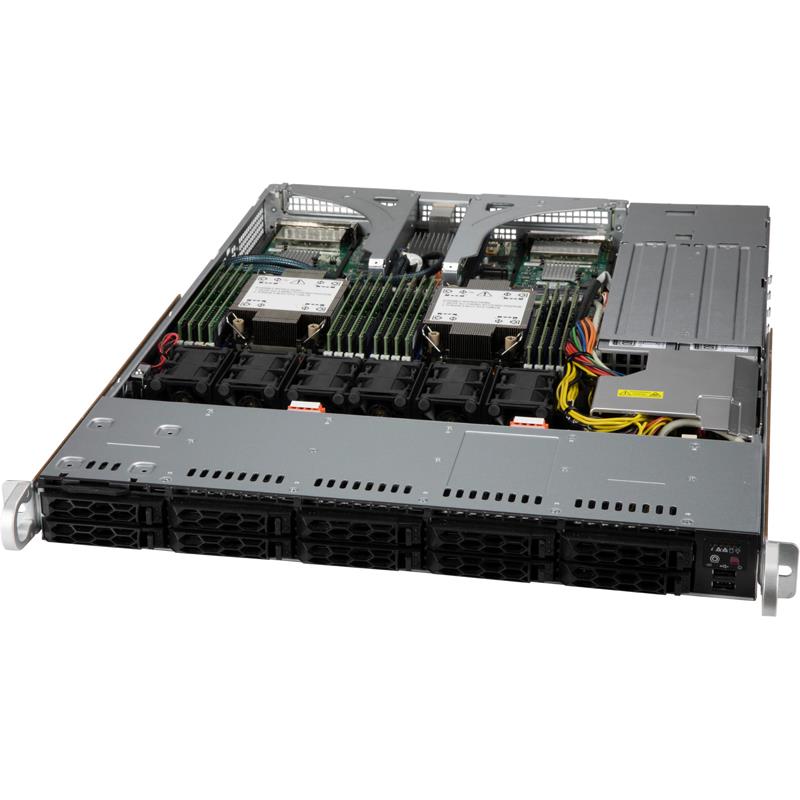

Supermicro CSE-LB16AC10-R860AW 1U Rackmount 800W/860W Power Supply

Optimized for Cloud-DC motherboard with AIOM support
Two Full-height expansion slots, Two AIOM expansion slot
Equipped with 800W/860W Power Supply Platinum Certified
Hybrid Backplane Supports ten SAS3/SATA3/NVMe4 Storage Devices

1U Rackmount 800W/860W Redundant Platinum Certified Power Supply, Optimized for CloudDC motherboard with AIOM support, support MB size up to 12.3" x 13.4", support single and dual Intel / AMD processors, Includes: 10x 2.5in hot-swap SAS3/SATA drive bay, 2x Full-height, 2x AIOM expansion slot (CSE-LB16AC10-R860AW)

Key Features

SAS3 12Gb/s and NVMe support
1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended
1U 10-Slot SFF Backplane Supports SAS3/SATA3/NVMe
1U 860W Redundant power supply Platinum level, 24Pin output
2x full-height & full-length expansion slot(s) 2x AIOM expansion slot(s)
4 x 40x56mm counter-rotation PWM fan(s) by default, 2 x as optional
Support Service Tag for system information

Extra Specifications for Supermicro CSE-LB16AC10-R860AW 1U Rackmount 800W/860W Power Supply

Main Specifications
Device Type	SuperChassis
Form Factor	1U Chassis
Supported Motherboards	Optimized for Cloud-DC motherboard with AIOM support, support MB size up to 12.3" x 13.4"
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm)
Weight	40 lbs (18.14 kg)
Enclosure Color	Black
Processor Support
Processor Support	Dual and Single Intel and AMD processors
Expansion / Connectivity
Expansion Slots Total (Free)	2x Full-height expansion slot, 2x AIOM expansion slot
Expansion Bays Total (Free)	10x 2.5" hot-swap SAS3/SATA drive bay
SAS/SATA Backplane
SAS/SATA Backplane	10-Port 1U SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Front Panel
Buttons	Power On/Off button, Unit Identification (UID) button
LEDs	Power Status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED
Ports	2x USB 2.0 Port
System Cooling
Fans/Air Shroud	4x 40x56mm counter-rotation PWM fan
Environmental
Operating Environment	Operating Temperature Range: 5°C - 35°C (41°F - 95°F)
	Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
	Operating Relative Humidity Range: 8% - 90% (non-condensing)
	Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
Power Supply	800W/860W 1U redundant power supply
Certification	80PLUS Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI, CCC, CE/EMC, UL/CB, UL/CUL
Parts List - (Items Included)
Hard Drive Backplane	1x BPN-SAS3-LB16A-N10
Cable(s)	1x CBL-CDAT-0680-55, 1x CBL-CUSB-1001-57, 2x CBL-PWCD-0160-IS
Fan(s)	4x FAN-0101L4
Front Panel Control	1x FPB-FP116
Drive Tray(s)	10x MCP-220-00188-0B
Mounting Rails	1set MCP-290-00063-0N
Rear Window	1x MCP-240-00173-0N
Power Distributor(s)	1x PDB-PT116-SL8824
Power Supply Number	2x PWS-860P-1R2
Parts	2x MCP-120-00116-0N, 1x MCP-230-00060-0N, 2x MCP-240-00175-0N, 2x MCP-240-00177-0N, 1x MCP-240-00179-0N, 1x MCP-240-00180-0N, 1x MCP-290-00088-0N, 1x MCP-270-11604-0N, 1x MCP-320-00067-0B, 1x MCP-160-00028-0B, 1x MCP-250-00009-0N, 24x MCP-320-00056-0B, 1x MCP-320-00066-0B, 2x MCP-340-00035-0B

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
