| Main Specifications |
| Device Type | SuperChassis |

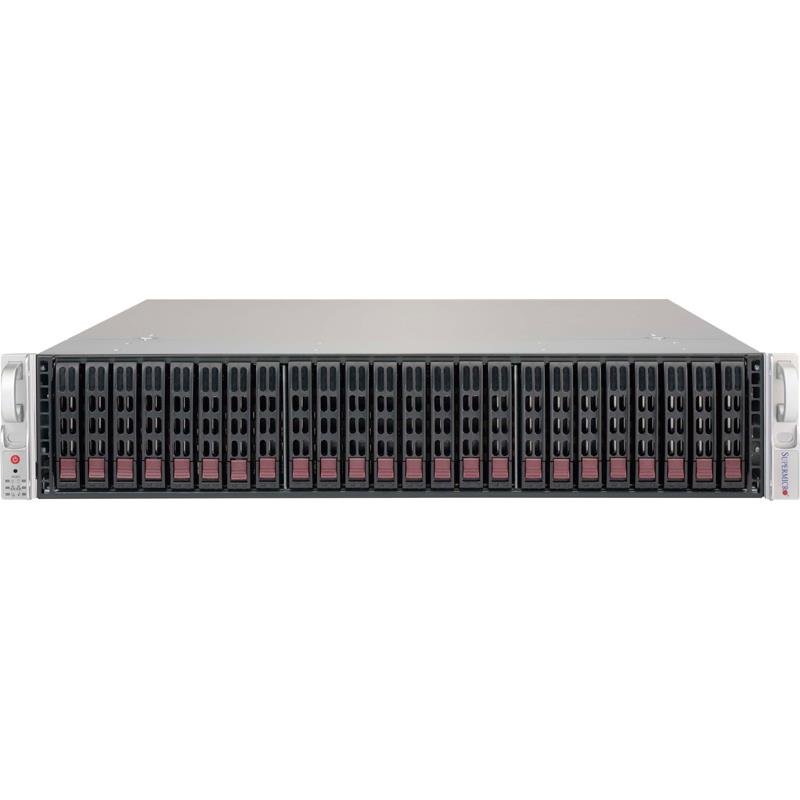

| Form Factor | 2U JBOD storage chassis |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Weight | 61 lbs (27.7 kg) |
| Enclosure Color | Black |
| Expansion / Connectivity |
| Expansion Bays Total (Free) | 24x 2.5" hot-swap HDD bay for JBOD solution |
| On-Board Devices |
| Qualified SAS Controllers | AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included) |
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included) |
| Backplane |
| SAS/SATA HDD Backplane | 24-Port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| System Cooling |
| Fans/Air Shroud | 3x 80x38mm hot-swap cooling fans |
| System Monitoring |
| System Monitoring | IPMI |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 600W / 650W 1U Redundant Power Supply |
| Certification | 80PLUS Platinum Certified |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Bracket(s) | 1x MCP-320-82601-0N, 1x MCP-120-84702-0N, 1x MCP-120-84705-0N |
| Hard Drive Backplane | 1x BPN-SAS3-216EL1 |
| Control Boards | 1x CSE-PTJBOD-CB3 |
| Front Panel Control | 1x FPB-FP826-D, 1x TB826 |
| Drive Tray(s) | 1x MCP-290-82607-0N, 24x MCP-220-00047-0B |
| Mounting Rails | 1x MCP-410-00007-0N, 1x MCP-290-00053-0N, 1x MCP-290-00060-0N |
| Rear Window | 1x MCP-240-82608-0N |
| Power Distributor(s) | 1x PDB-PT216-2824 |
| Power Supply Number | 2x PWS-609P-1R2 |
| Cable(s) | 1x CBL-0071L, 3x CBL-0088, 2x CBL-0160L, 1x CBL-0182L, 1x CBL-0217L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0532 |
| Parts | 1x MCP-230-82602-0N, 1x MCP-290-00088-0N, 7x MCP-120-00062-0N, 1x MCP-260-00011-0N |
