Main Specifications |
Device Type | SuperChassis |

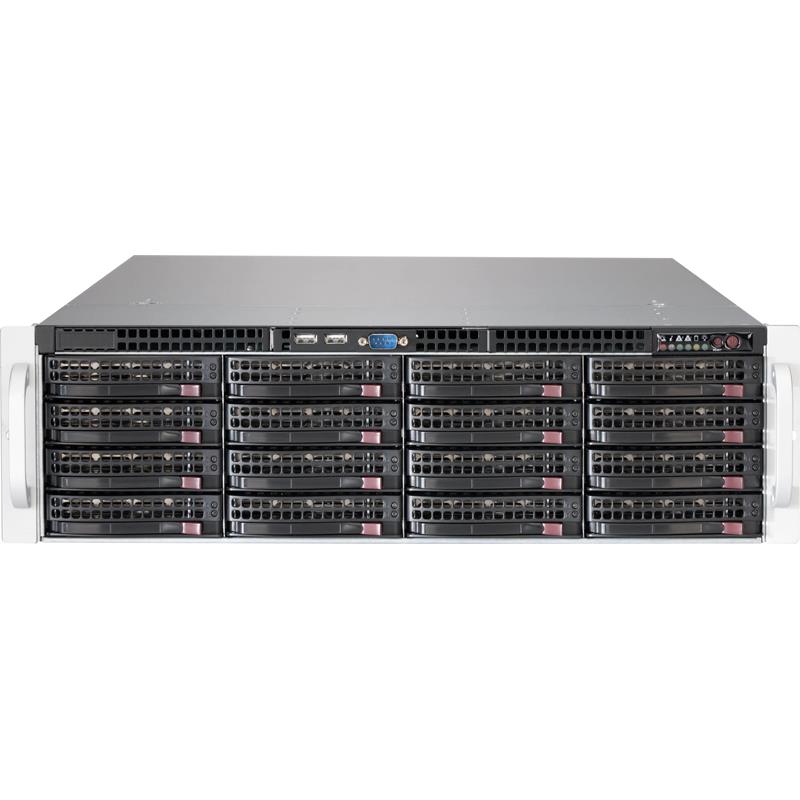

Form Factor | 3U JBOD storage chassis |
Dimensions (WxDxH) | Height 5.2" (132 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
Weight | 75 lbs (34.02 kg) |
Enclosure Color | Black |
Expansion / Connectivity |
Expansion Bays Total (Free) | 16x 3.5" hot-swap HDD bay for JBOD solution |
On-Board Devices |
Qualified SAS Controllers | AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included) |
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included) |
Backplane |
SAS/SATA HDD Backplane | 16-Port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD |
Front Panel |
Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
LEDs | 1 Network Activity LEDs |
System Cooling |
Fans/Air Shroud | 2x 8cm hot-swap exhaust fan(s) & air shroud |
| 3x 8cm hot-swap redundant PWM cooling fan |
System Monitoring |
System Monitoring | IPMI |
Environmental |
Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Power Supply |
Power Supply | 600W / 650W 1U Redundant Power Supply |
Certification | 80PLUS Platinum Certified |
Regulatory (Power Supply) |
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-39001-0N |
Bracket(s) | 1x MCP-120-84702-0N, 1x MCP-120-84706-0N |
Hard Drive Backplane | 1x BPN-SAS3-836EL1 |
Control Boards | 1x CSE-PTJBOD-CB3 |
Fan(s) | 2x FAN-0125L4, 3x FAN-0126L4 |
Drive Tray(s) | 1x MCP-220-00007-01, 16x MCP-220-00075-0B |
Mounting Rails | 1x MCP-410-00007-0N, 1x MCP-290-00053-0N |
Rear Window | 1x MCP-240-83605-0N |
Power Distributor(s) | 1x PDB-PT826-8824 |
Power Supply Number | 2x PWS-609P-1R2 |
Parts | 1x MCP-230-82501-0N, 7x MCP-120-00061-0N, 1x MCP-290-00088-0N, 1x MCP-290-83603-0N, 1x MCP-290-83605-0N, 1x MCP-290-00007-01, 1set MCP-290-83601-0V, 1x MCP-260-00011-0N |
Cable(s) | 1x CBL-0071L, 1x CBL-0088L, 3x CBL-0296L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0532 |
