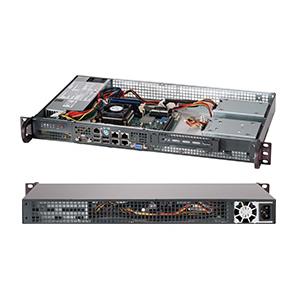

Supermicro CSE-505-203B Server Chassis 1U Rackmount

• Support 3rd Generation Intel Core i7/i5/i3
• Front I/O Ports; 9.8 depth small form factor 1U
• Optimized for Mini-ITX (6.75x 6.75) Motherboard
• Power Switch; Reset Button and 5x LED Indicators

Rackmount Mini 1U w/ 200W 80 Plus Gold Power Supply (PWS-203-1H) w/ PFC and Low-Noise, for motherboard up to 6.75in x 6.75in maximum size) - Internal Drive Bays Configuration : 1x 3.5in Internal Drive Bay with 1x Half-height / Half-length PCI (or) 2x 3.5in Internal Drive Bay (or) 2x 2.5in Internal Drive Bay with 1x Full-height / Half-length PCI (or) 4x 2.5in Internal Drive Bay - (Black)


    140.00 140.00 140.0 USD

    140.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Front I/O Ports
    • Optimized for Mini-ITX (6.75x 6.75) Motherboard
    • Power Switch, Reset Button and 5x LED Indicators
    • 9.8 depth small form factor 1U, 200W Gold level power supply

    Extra Specifications for Supermicro CSE-505-203B Server Chassis 1U Rackmount

    Main Specifications
    Device Type SuperChassis 505-203B
    Dimensions (WxDxH) Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 9.8" (249 mm)- Packaging 25.8 x 6.1 x 18.3 in
    Enclosure Color Black
    Form Factor 9.8"-Depth Mini 1U chassis support for maximum MB Mini-ITX size - 6.75" x 6.75"
    Weight 10 lbs (4.5kg)
    Processor
    Compatible Processors Single Processor Support
    Expansion / Connectivity
    Expansion Slots Total (Free) Up to 1x full-height, half-length PCI expansions slot - NOTE: Riser Card Required, See 'Drive Bays' for possible configurations
    Drive Bays
    Internal 1x 3.5" Internal Drive Bay with - 1x Half-height, Half-length PCI
      OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay
      Ony SAS or enterprise SATA HDD recommended
    Front Panel
    Buttons Power On/Off button, System Reset button
    I/O Ports Standard System I/O - (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)
    LEDs Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED
    Operating Environment / Compliance
    Operating Temperature Range Operating Temperature Range 0°C ~ 40°C (32°F ~ 104°F)
      Non-Operating Temperature Range -40°C ~ 70°C (-4°F ~ 158°F)
      Operating Relative Humidity Range 8% ~ 90% (non-condensing)
      Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
    Power Supply
    Certification 80PLUS Gold Certified
    Power Supply 200W Low Noise AC-DC power supply with PFC
    Regulatory (Power Supply)
    Power Supply Safety / EMC USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified
    Standard Parts List
    Cables CBL-0087, CBL-0260L
    Chassis CSE-505-203B
    Front Panel MCP-230-50501-0N, MCP-270-50501-0N
    I/O Shield MCP-260-00064-0B
    Power Supply PWS-203-1H
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
    Provider:Manufacturer
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 120 days, 2 weeks afterwards
    If you need Technical Support for this item please contact:

    Provider:Supermicro Computer, Inc.
    Type of Support:FULL
    Phone No: 408-503-8029
    URL:Click here for Manufacturer Website
