| Main Specifications |

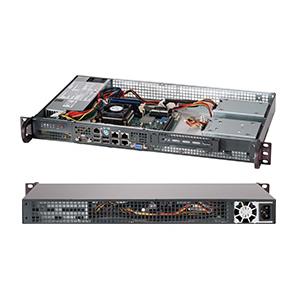

| Device Type | SuperChassis 505-203B |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 9.8" (249 mm)- Packaging 25.8 x 6.1 x 18.3 in |
| Color | Black |
| Form Factor | 9.8"-Depth Mini 1U chassis support for maximum MB Mini-ITX size - 6.75" x 6.75" |
| Weight | 10 lbs (4.5kg) |
| Processor |
| Compatible Processors | Single Processor Support |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Up to 1x full-height, half-length PCI expansions slot - NOTE: Riser Card Required, See 'Drive Bays' for possible configurations |
| Drive Bays |
| Internal | 1x 3.5" Internal Drive Bay with - 1x Half-height, Half-length PCI |
| OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay |
| Ony SAS or enterprise SATA HDD recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| I/O Ports | Standard System I/O - (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED |
| Operating Environment (System) |
| Operating Temperature Range | Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Operating Temperature Range 0C ~ 40C (32F ~ 104F) |
| Non-Operating Temperature Range -40C ~ 70C (-4F ~ 158F) |
| Power Supply |
| Certification | 80PLUS Gold Certified |
| Power Supply | PWS-203-1H |
| Power Device |
| Power Provided | 200W Low Noise AC-DC power supply with PFC |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified |
| Parts List |
| Cables | CBL-0087, CBL-0260L |
| I/O Shield | MCP-260-00064-0B |
| Standard Parts List |
| Chassis | CSE-505-203B |
| Front Panel | MCP-230-50501-0N, MCP-270-50501-0N |
