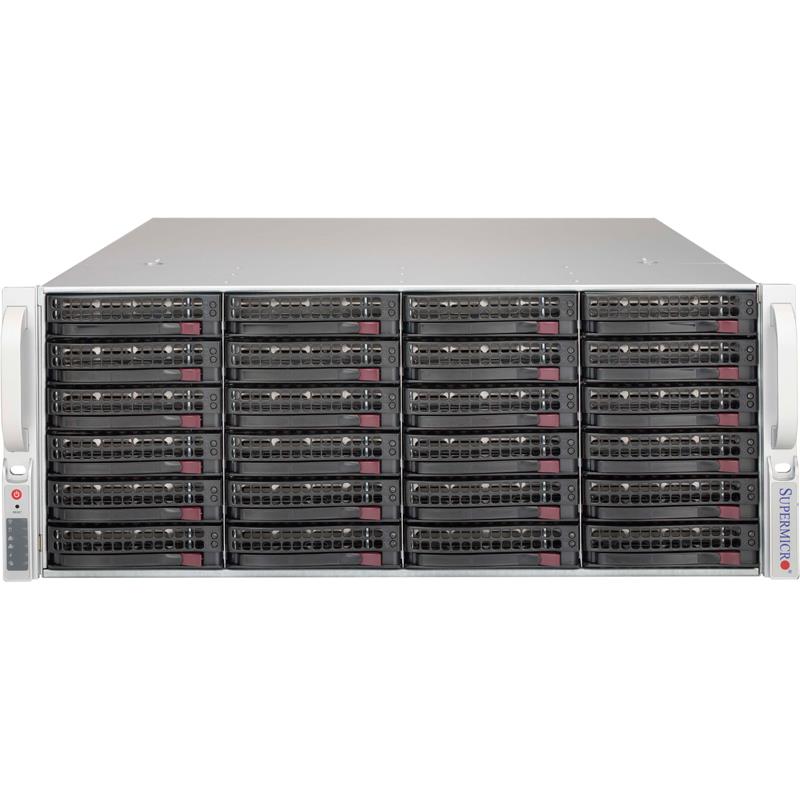

Supermicro CSE-846BE1C-R609JBOD 4U JBOD storage chassis 600W/650W Power Supply

Equipped with 600W Platinum level power supplies
Offers 24x hot-swap 3.5" SAS/SATA hard drive bays
Ideal for Cloud backup, data Replication Applications
IPMI port for Remote System Power on/off, system monitoring

4U JBOD storage chassis 600W/650W Redundant Platinum Certified Power Supply, Includes: 24x 3.5in hot-swap HDD bay for JBOD solution, Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller (CSE-846BE1C-R609JBOD)

Key Features

Cloud Backup, Data Replication, or High-Density Archive Storage Applications
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
600W (1+1) 94% efficient Platinum level power supplies
5 hot-plug redundant cooling fans
Ideal for Cloud backup, data Replication or High-density Archive Storage Applications
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

Extra Specifications for Supermicro CSE-846BE1C-R609JBOD 4U JBOD storage chassis 600W/650W Power Supply

Main Specifications
Device Type	SuperChassis
Form Factor	4U JBOD storage chassis
Dimensions (WxDxH)	Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 26" (660 mm)
Weight	Gross Weight 80 lbs (36.29 kg) - Net Weight 60 lbs (27.22 kg)
Enclosure Color	Black
Expansion / Connectivity
Expansion Bays Total (Free)	24x 3.5" hot-swap HDD bay for JBOD solution
On-Board Devices
Qualified SAS Controllers	AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included)
	AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included)
Backplane
SAS/SATA HDD Backplane	24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Buttons	Power On/Off button, System Reset Button, Unit Identification (UID) button
LEDs	1 Network Activity LEDs
System Cooling
Fans/Air Shroud	2x 8cm hot-swap exhaust fan(s) & air shroud
	3x 8cm hot-swap redundant PWM cooling fan
System Monitoring
System Monitoring	IPMI
Environmental
Operating Environment	Operating Temperature Range: 5°C - 35°C (41°F - 95°F)
	Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
	Operating Relative Humidity Range: 8% - 90% (non-condensing)
	Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
Power Supply	600W / 650W 1U Redundant Power Supply
Certification	80PLUS Platinum Certified
Regulatory Safety / EMC	BSMI, CCC, CE/EMC, FCC
Parts List - (Items Included)
Air Shroud	1x MCP-310-49003-0N
Bracket(s)	1x MCP-120-84702-0N, 1x MCP-120-84706-0N
Backplane	1x BPN-SAS3-846EL1
Control Boards	1x CSE-PTJBOD-CB3
Front Panel Control	1x MCP-280-82601-0N
Drive Trays	24x MCP-220-00075-0B
Mounting Rails	1set MCP-290-00057-0N, 1x MCP-410-00007-0N
Rear Window	1x MCP-240-84602-0N
Fan(s)	2x FAN-0125L4, 3x FAN-0127L4
Power Distributor(s)	1x PDB-PT846-2824
Power Supply Number	2x PWS-609P-1R2
Cable(s)	1x CBL-0071L, 2x CBL-0160L, 1x CBL-0217L, 4x CBL-0296L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0593-01
Parts	1x MCP-230-82501-0N, 7x MCP-120-00061-0N, 1x MCP-290-00088-0N, 1x MCP-290-84603-0N, 1x MCP-290-84608-0N, 1x MCP-260-00011-0N

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	120 days of overnight replacement
