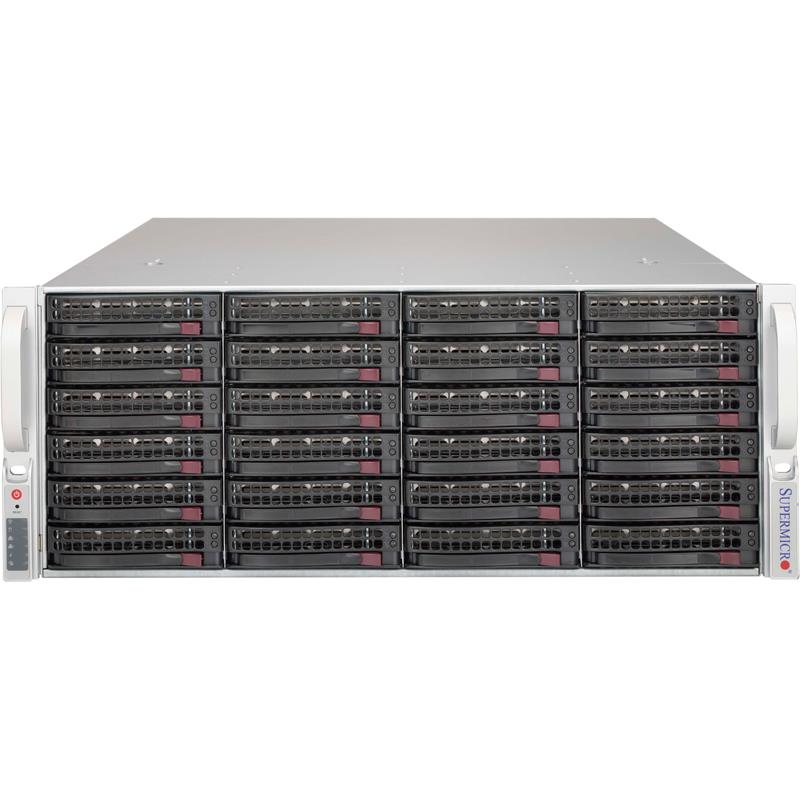

- Supermicro CSE-846BE2C-R609JBOD 4U JBOD Storage Chassis 600W/650W Power Supply
Supermicro CSE-846BE2C-R609JBOD 4U JBOD Storage Chassis 600W/650W Power Supply
Equipped with 600W redundant, efficient power supply
Support NTP for time synchronization & RTC battery backup
Offers 24x hot-swap 3.5" hot-swap HDD bay for JBOD solution
Ideal for Cloud backup or High-density Archive Storage Applications
4U JBOD storage chassis 600W/650W Redundant Platinum Certified Power Supply, Includes: 24x 3.5in hot-swap HDD bay for JBOD solution, Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller (CSE-846BE2C-R609JBOD)
The SC846B JBOD storage enclosure Is designed to scale your Supermicro server storage expansion capacity. In a 4U form factor, it offers twenty-four hot-swap 3.5" SAS/SATA hard drive bays, without compromising superior cooling capabilities. The CSE-846BE2C-R609JBOD model offers two expanders for high availability
Key Features
Cloud Backup, Data Replication, or High-Density Archive Storage Applications
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
600W (1+1) 94% efficient Platinum level power supplies
5 hot-plug redundant cooling fans
Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
Qualified SAS HBA / controller:AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Extra Specifications for Supermicro CSE-846BE2C-R609JBOD 4U JBOD Storage Chassis 600W/650W Power Supply
| Main Specifications | ||
| Device Type | SuperChassis | |
| Form Factor | 4U JBOD storage chassis | |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 26" (660 mm) | |
| Weight | Gross Weight 80 lbs (36.29 kg) - Net Weight 60 lbs (27.22 kg) | |
| Enclosure Color | Black | |
| Expansion / Connectivity | ||
| Expansion Bays Total (Free) | 24x 3.5" hot-swap HDD bay for JBOD solution | |
| On-Board Devices | ||
| Qualified SAS Controllers | AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included) | |
| AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included) | ||
| SAS/SATA Backplane | ||
| SAS/SATA Backplane | 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | 1 Network Activity LEDs | |
| System Cooling | ||
| Fans/Air Shroud | 2x 8cm hot-swap exhaust fan(s) & air shroud | |
| 3x 8cm hot-swap redundant PWM cooling fan | ||
| System Monitoring | ||
| System Monitoring | IPMI | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Non-Operating Temperature Range: -40°C - 60°C (-40°F - 140°F) | ||
| Power Supply | ||
| Power Supply | 600W / 650W 1U Redundant Power Supply | |
| Certification | 80PLUS Platinum Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC | |
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-49003-0N | |
| Bracket(s) | 1x MCP-120-84702-0N, 1x MCP-120-84706-0N | |
| Hard Drive Backplane | 1x BPN-SAS3-846EL2 | |
| Control Boards | 1x CSE-PTJBOD-CB3 | |
| Fan(s) | 2x FAN-0125L4, 3x FAN-0127L4 | |
| Front Panel Control | 1x MCP-280-82601-0N | |
| Drive Trays | 24x MCP-220-00075-0B | |
| Mounting Rails | 1set MCP-290-00057-0N, 1x MCP-410-00007-0N | |
| Rear Window | 1x MCP-240-84602-0N | |
| Power Distributor(s) | 1x PDB-PT846-2824 | |
| Power Supply Number | 2x PWS-609P-1R2 | |
| Cable(s) | 1x CBL-0071L, 2x CBL-0160L, 1x CBL-0217L, 4x CBL-0296L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 8x CBL-SAST-0593-01 | |
| Parts | 1x MCP-230-82501-0N, 7x MCP-120-00061-0N, 1x MCP-290-00088-0N, 1x MCP-290-84603-0N, 1x MCP-290-84608-0N, 1x MCP-260-00011-0N, 1x MCP-290-84604-0N | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
