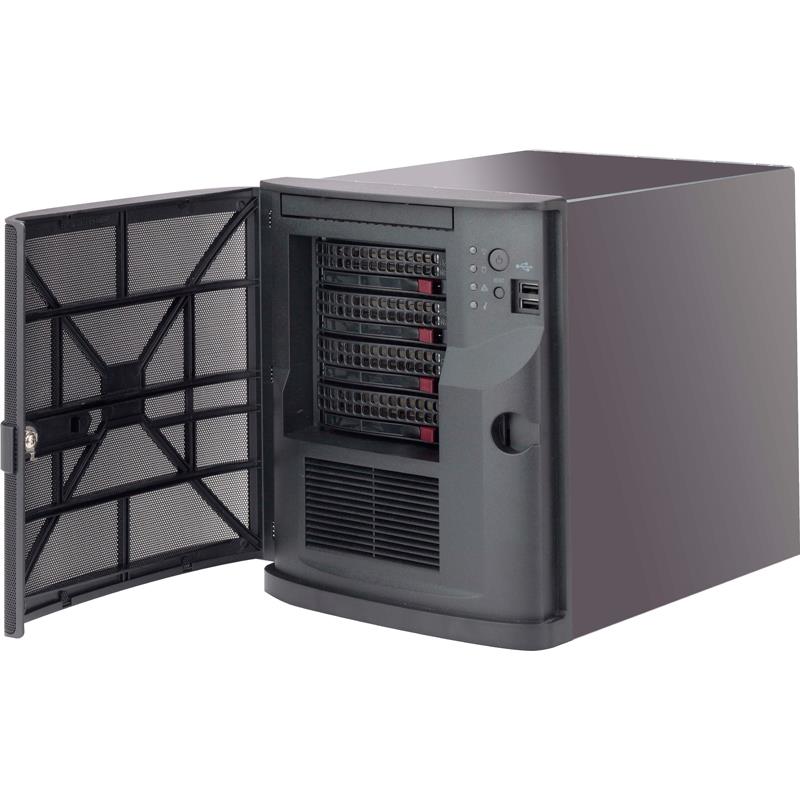

  2. Supermicro CSE-721TQ-350B Compact Mini-Tower Chassis 350W Power Supply
Supermicro CSE-721TQ-350B Compact Mini-Tower Chassis 350W Power Supply
Supermicro CSE-721TQ-350B Compact Mini-Tower chassis 920W Power supply

Supermicro CSE-721TQ-350B Compact Mini-Tower Chassis 350W Power Supply

  • It supports a wide range of Mini-ITX motherboards

  • Offers four hot-swap 3.5" SAS/SATA hard drive bays

  • Includes 350W 80 PLUS Gold-certified power supply

  • Ideal for office, home server, cloud storage applications

Compact Mini-Tower chassis 920W multi-output 80 PLUS Gold-certified Power Supply, Optimized for motherboards sizes 6.75" x 6.75", support single Intel / AMD processors, Includes: 4x 3.5in hot-swap SAS/SATA drive bay, 2x 2.5in fixed drive bay, 1x slim DVD-ROM drive bay, 1x Low Profile Expansion Slots (CSE-721TQ-350B)

$ 261.50$ 261.50261.5USD

$ 261.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Supermicro’s SC721 chassis features a unique and highly-optimized design, allowing most configurations of the chassis to be accomplished without tools or screws. The chassis is equipped with a high-efficiency power supply. A high-performance fan provides ample optimized cooling for FB-DIMM memory modules, and four hot-swap drive bays offer maximum storage capacity (Default Design for 84W TDP CPU).


    Key Features


    • Compact Mini-Tower: D 11"x W 8.27"x H 9.45"

    • Support a wide range of Mini-ITX (6.75"x 6.75") motherboards

    • 4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay

    • 2 USB2.0 ports(front), chassis intrusion switch, Kensington Lock supported

    • 1 low-profile expansion slot for add-on cards

    • 350W 80 PLUS Gold-certified High-efficiency power supply

    Extra Specifications for Supermicro CSE-721TQ-350B Compact Mini-Tower Chassis 350W Power Supply

    Main Specifications
    Device TypeSuperChassis
    Form FactorCompact Mini-Tower Chassis
    Supported MotherboardsSupport wide range of Mini-ITX (6.75"x 6.75") motherboards
    Dimensions (WxDxH)Height 9.45" (240.03 mm) x Width 8.27" (210.06 mm) x Depth 11" (279.4 mm)
    WeightGross Weight 15 lbs (6.8 kg) - Net Weight 13.5 lbs (6.12 kg)
    Enclosure ColorBlack
    Expansion / Connectivity
    Expansion Slots Total (Free)1x Low Profile expansion slot
    Expansion Bays Total (Free)2x 2.5" fixed drive bay, 4x 3.5" hot-swap SAS/SATA drive bay
    Peripheral Bay (Free)1x slim DVD-ROM drive bay
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower status LED, HDD activity LED, 1 Network activity LEDs, Fan Fail/System Over Heat LED
    Ports2x USB 3.0 Ports
    SAS/SATA Backplane
    SAS/SATA Backplane4x3.5" SAS2/SATA3 backplane w/SES-II
    System Cooling
    Fans/Air Shroud1x 12cm rear exhaust fan
    System Monitoring
    System MonitoringChassis intrusion switch
    Environmental
    Operating EnvironmentOperating Temperature Range: 0°C - 40°C (32°F - 104°F)
    Operating Relative Humidity Range: 10% - 85% (non-condensing)
    Non-Operating Relative Humidity Range: 10% - 95% (non-condensing)
    Non-Operating Temperature Range: -20°C - 60°C (-4°F - 140°F)
    Power Supply
    Power Supply350W 1U multi-output power supply
    Certification80PLUS Gold Certified
    Regulatory Safety / EMCBSMI, CCC, FCC class B, TUV/CB, UL/CB
    Parts List - (Items Included)
    Hard Drive Backplane1x CSE-SAS-733TQ
    Fan(s)1x FAN-0124L4
    Drive Trays4x MCP-220-00075-0B
    Power Supply Number1x PWS-353-1H

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
