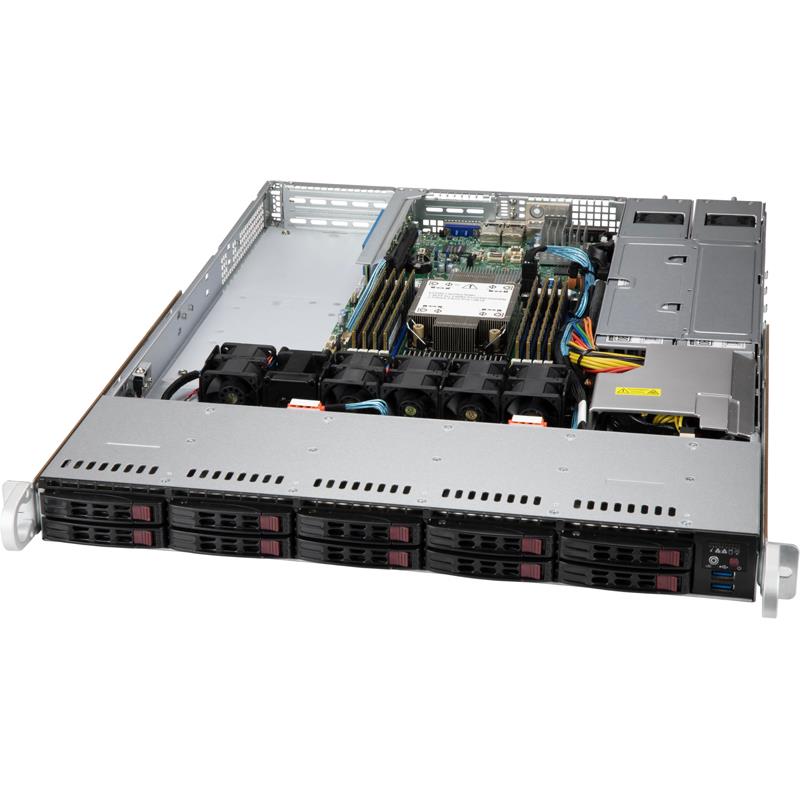

Supermicro CSE-116AC10-R706WB3 1U Rackmount 700/750W Power Supply

Equipped with 700/750W Power Supply Platinum level
Offer ten hot-swappable SAS3/SATA drive bay drive bays
Support proprietary WIO MB size 8x13in and up to 12.3x13in
Two full-height expansion slots, one low-profile expansion slot

1U Rackmount 700/750W Redundant Platinum Certified Power Supply, Optimized for WIO (W series) motherboards, support MB size 8”x13” and up to 12.3”x13”, support single and dual Intel / AMD processors, Includes: 10x 2.5in hot-swap SAS3/SATA drive bay, 2x Full-Height Expansion Slot, 1x Low Profile Expansion Slots (CSE-116AC10-R706WB3)

Supermicro’s SC116 1U chassis features a unique and highly-optimized design. The chassis is equipped with a high-efficiency power supply. High-performance fans provide ample optimized cooling for the dual-processor modules and ten hot-swappable drive bays offer maximum storage capacity in a 1U form factor.

Key Features

1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
10 x 2.5" hot-swap SAS3/SATA drive bay
10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
2 full height expansion slot(s) , 1 low-profile expansion slot(s)
4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling

Extra Specifications for Supermicro CSE-116AC10-R706WB3 1U Rackmount 700/750W Power Supply

Main Specifications
Device Type	SuperChassis
Form Factor	1U Chassis
Supported Motherboards	Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm)
Weight	40 lbs (18.14 kg)
Enclosure Color	Black
Processor Support
Processor Support	Dual and Single Intel and AMD processors
Expansion / Connectivity
Expansion Slots Total (Free)	1x Low-profile expansion slot, 2x Full-height expansion slot
Expansion Bays Total (Free)	10x 2.5" hot-swap SAS3/SATA drive bay
SAS/SATA Backplane
SAS/SATA Backplane	10-Port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible
Front Panel
Buttons	Power On/Off button, Unit Identification (UID) button
LEDs	Power Status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED
System Cooling
Fans/Air Shroud	4x 40x56mm counter-rotation PWM fan
	Optional 2x fans for AOC cooling
System Monitoring
System Monitoring	Chassis intrusion switch
Environmental
Operating Environment	Operating Temperature Range: 5°C - 35°C (41°F - 95°F)
	Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
	Operating Relative Humidity Range: 8% - 90% (non-condensing)
	Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
Power Supply	1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Certification	80PLUS Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL
Parts List - (Items Included)
Air Shroud	1x MCP-310-19002-0N
Hard Drive Backplane	1X BPN-SAS3-116A-N10
Cable(s)	2x CBL-0160L, 1x CBL-0335L, 2x CBL-PWEX-1072, 2x CBL-PWEX-1073
Parts	1x MCP-230-00038-0N, 1x MCP-240-00099-0N, 1x MCP-270-00023-0N, 1x MCP-290-00088-0N, 24x MCP-320-00027-0B, 1x MCP-320-00028-0B, 2x MCP-340-00035-0B, 2x MCP-120-00029-0N, 1x MCP-120-00030-0N
Front Panel Control	1x FPB-FP116-DU3
Drive Tray(s)	10x MCP-220-00047-0B
Mounting Rails	1x MCP-290-00063-0N
Rear Window	1x MCP-240-00098-0N
Power Supply Number	2x PWS-706P-1R

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-116AC10-R706WB3 1U Rackmount 700/750W Power Supply

$ 967.00$ 967.00967.0USD

$ 967.00
