  2. Supermicro CSE-842TQC-903B 4U Rackmount 903W Power Supply

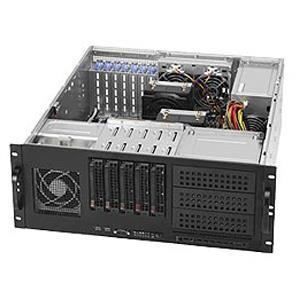

Supermicro CSE-842TQC-903B 4U Rackmount 903W Power Supply
Supermicro CSE-842TQC-903B 4U Rackmount 903W Power Supply

Supermicro CSE-842TQC-903B 4U Rackmount 903W Power Supply

  • Includes seven full-height, full-length PCI slots

  • Five hot-swappable 3.5" SAS/SATA hard drives

  • Design for single and dual Intel/AMD processors

  • Equipped with a 900W high-efficiency power supply

4U Rackmount 903W Multi-output Platinum Certified with PMBUS Power Supply, Optimized for motherboards sizes 12" x 13" E-ATX/ATX/MicroATX, support single and dual Intel / AMD processors, Includes: 5x 3.5in hot-swap SAS/SATA drive bay, 7x Full-height, Full-length expansion slots (CSE-842TQC-903B)

$ 521.00$ 521.00521.0USD

$ 521.00

Option not available

PreOrder
42 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Supermicro’s SC842 4U chassis features a unique and highly-optimized design for single and dual Intel/AMD processors. The chassis is equipped with a 900 Watt high-efficiency power supply. High-performance fans provide ample optimized cooling for the system. The chassis supports up to five 3.5" SAS/SATA hard drives which offer maximum storage capacity in a 4U form factor.


    Key Features


    • 900W Gold Level Multiple outputs Power Supply

    • 5x SAS3 3.5" HDD Bays

    • 3x 5.25" Peripheral Drive Bays

    • 1x Slim DVD-ROM Drive Bay

    • 5.7x Full-height, Full-length Tool-less Expansion SlotsDual channel Air Duct design

    • 2x Front USB 3.0 Ports & 1x Com port

    • Optional Front Bezel with Removable Air Filter

    • Power Switch, Reset Switch & 6x LED Indicators

    Extra Specifications for Supermicro CSE-842TQC-903B 4U Rackmount 903W Power Supply

    Main Specifications
    Device TypeSuperChassis
    Form Factor4U chassis
    Supported Motherboards4U rackmount chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX
    Dimensions (WxDxH)Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 20.5" (521 mm)
    WeightGross Weight 46 lbs (20.87 kg) - Net Weight 36 lbs (16.33 kg)
    Enclosure ColorBlack
    Expansion / Connectivity
    Expansion Slots Total Free7x Full-height, Full-length expansion slot
    Expansion Bays Total (Free)5x 3.5" hot-swap SAS/SATA drive bay
    Peripheral Bay (Free)3x standard 5.25" drive bay, Optional 1x slim DVD-ROM drive bay
    Backplane
    SAS/SATA HDD Backplane5-Port 4U Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower status LED, HDD activity LED, 2 Network Activity LEDs, Fan Fail/System Over Heat LED
    I/O Ports2x USB 3.0 Port
    System Cooling
    Fans1x 9cm hot-swap cooling fan(s) (Front, 5K RPM)
    2x 8cm hot-swap redundant PWM cooling fan(s) (Rear, 9.4K RPM)
    System Monitoring
    System MonitoringChassis intrusion switch
    Environmental
    Operating EnvironmentOperating Temperature Range: 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Power Supply
    Power SupplyPS2/ATX 900W Multi-output power supply
    Certification80PLUS Gold Level

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
