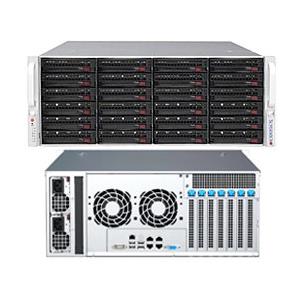

Supermicro CSE-846BE1C8-R1K23B4 4U Rackmount 1200W/1000W Power supply

Supermicro CSE-846BE1C8-R1K23B4 4U Rackmount 1200W/1000W Power supply

  • Support dual and Single Intel and AMD processors

  • Includes seven slots, five hot-swap redundant cooling fans

  • 1200W/1000W Titanium redundant Power Supply W/PMbus

  • Chassis supports up to 24x 3.5" hot-swap SAS/SATA drives

4U Rackmount 1200W/1000W Redundant Titanium Certified W/PMbus Power Supply, Optimized for motherboards sizes EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10"), support single and dual Intel / AMD processors, Includes: 24x 3.5in hot-swap SAS3/SATA drive bay, 7x Full-height, Full-length expansion slots (CSE-846BE1C8-R1K23B4)

$ 2,062.00$ 2,062.002062.0USD

$ 2,062.00

Option not available

    This combination does not exist.

    Add to Cart

    Optimized for enterprise-level high-capacity storage applications, Supermicro's SC846 chassis features 24 hot-swap 3.5" SAS/SATA hard drive trays and 2 fixed internal hard drive bays in a 4U form factor. The design offers maximum HDD per space ratio, high power efficiency, optimized HDD signal trace routing, and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped high-efficiency redundant power supplies and five hot-swap redundant cooling fans the SC846 is a reliable and trouble-free storage system.


    Key Features


    • Optimized chassis cooling with redundant cooling fans and adjustable air shroud

    • 24x 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput

    • Redundant 1200W Titanium Level power supply

    • E1C8: Single SAS3 (12Gbps) expander plus 8 x NVMe backplane

    • Mini SAS HD (SFF 8643) connectivity on backplane

    • Palletized packaging for easy shipping and handling

    Extra Specifications for Supermicro CSE-846BE1C8-R1K23B4 4U Rackmount 1200W/1000W Power supply

    Main Specifications
    Device TypeSuperChassis
    Form Factor4U chassis
    Supported MotherboardsEE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10")
    Dimensions (WxDxH)Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 26" (660 mm)
    Weight75 lbs (34.02 kg)
    Enclosure ColorBlack
    Processor
    Compatible ProcessorsDual and Single Intel and AMD processors
    Expansion / Connectivity
    Expansion Slots Total Free7x Full-height, Full-length expansion slot
    Expansion Bays Total (Free)24x 3.5" hot-swap drive bay
    Peripheral Bay (Free)Optional 2x 2.5" hot-swap drive bay
    Optional 2x 2.5" internal fixed drive bay
    Optional 1x 3.5" internal fixed drive bay
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED
    System Cooling
    Fans/Air Shroud3x 8cm hot-swap redundant PWM cooling fan
    2x 80mm rear hot-swap exhaust PWM fan
    System Monitoring
    System MonitoringChassis intrusion switch
    Environmental
    Operating EnvironmentOperating Temperature Range: 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Power Supply
    Power Supply1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    Certification80PLUS Platinum Level Certified
    Regulatory Safety / EMCBSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL
    Parts List - (Items Included)
    Air Shroud1x MCP-310-49003-0N
    Backplane1x BPN-SAS3-846EL1-N8
    Fan(s)3x FAN-0185L4, 2x FAN-0212L4
    Front Panel Control1x FPB-TB826-T
    Drive Tray(s)24x MCP-220-00075-0B
    Mounting Rails1set MCP-290-00057-0N, 1x MCP-410-00007-0N
    Rear Window1x MCP-240-84604-0N
    Power Distributor(s)1x PDB-PT846-2824
    Power Supply Number2x PWS-1K23A-1R
    Cable(s)1x CBL-0071L, 2x CBL-0160L, 5x CBL-PWEX-1078
    Parts7x MCP-120-00116-0N, 1x MCP-230-82501-0N, 1x MCP-290-84606-0V, 1x MCP-290-84608-0N, 1x MCP-290-84615-0V, 1x MCP-270-84601-0N, 1x MCP-290-00088-0N, 1x MCP-290-84604-0N

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
