Main Specifications |

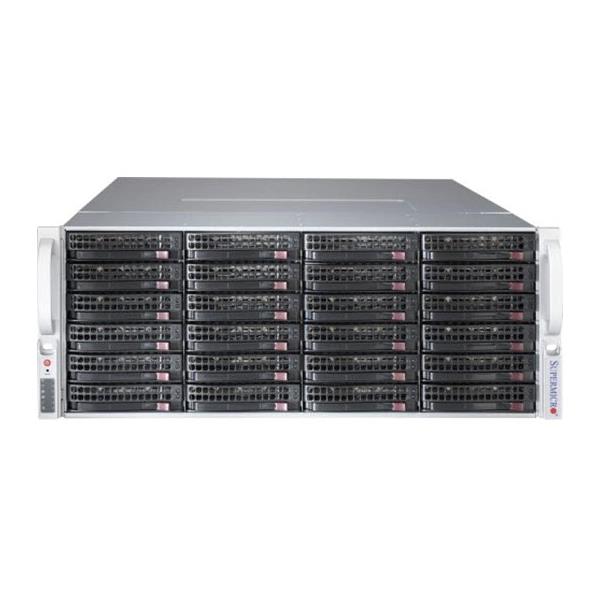

Device Type | SuperChassis |
Form Factor | 4U chassis |
Supported Motherboards | Motherboard support size of 12" x 10", 13.68" x 13", 9.6" x 9.6" |
Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 27.5" (699 mm) |
Weight | 91 lbs (41.28 kg) |
Enclosure Color | Black |
Processor Support |
Processor Support | Dual and Single Intel and AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7x low-profile expansion slots |
Expansion Bays Total (Free) | 36x 3.5" hot-swap SAS/SATA drive bay with SES3 , Optional 2x 2.5" hot-swap drive bay |
Peripheral Bay (Free) | Optional 4x 2.5" internal fixed drive bay, Optional 2x 3.5" internal fixed drive bay |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED |
System Cooling |
Fans/Air Shroud | 7x 80mm high-performance fan |
System Monitoring |
System Monitoring | Chassis intrusion switch |
Environmental |
Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Power Supply |
Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
Certification | 80PLUS Titanium Certified |
Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-49004-0N |
Hard Drive Backplane | 1x BPN-SAS3-826EL1-N4, 1x BPN-SAS3-846EL1 |
Front Panel Control | 1x FPB-TB826-T |
Drive Trays | 36x MCP-220-00075-0B, 1x MCP-220-84708-ASM |
Mounting Rails | 1x MCP-410-00007-0N, 1set MCP-290-00057-0N |
Power Distributor(s) | 1x PDB-PT847-8824 |
Power Supply Number | 2x PWS-1K23A-1R |
Cable(s) | 1x CBL-0071L, 2x CBL-0160L, 7x CBL-PWEX-1079 |
Parts | 7x MCP-120-00115-0N, 1x MCP-230-84705-0N, 1x MCP-270-84703-0N, 1x MCP-290-00095-0N, 1x MCP-290-84606-0V, 1x MCP-290-84615-0V |
