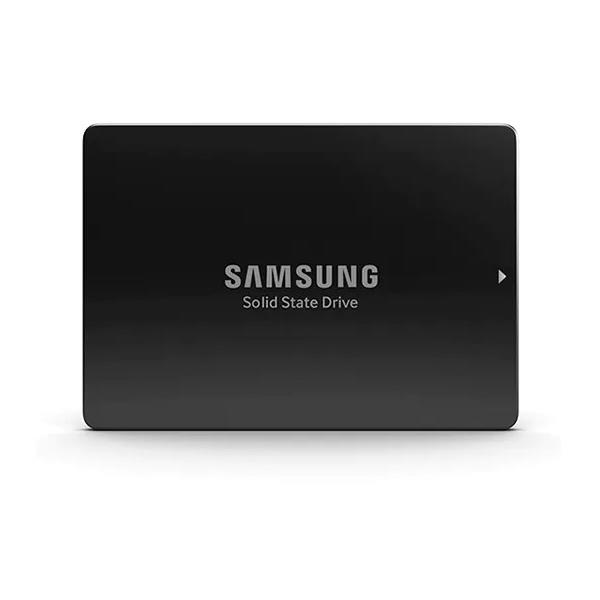

- Samsung MZ7L3480HCHQ-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM893 Series
Samsung MZ7L3480HCHQ-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM893 Series
Suitable for mainstream read-intensive applications
Ideal for high reliability, low power server boot drives
Samsung V6 (128 Layer) TLC, 256-bit encryption engine
Power loss protection, Write endurance levels of 1.3 DWPD
Hard Drive 480GB SSD SATA 6Gb/s 2.5in 7mm TLC 1.3DWPD PM893 Series - OEM
Enterprise Power Loss Protection
Samsung’s PM893 SSDs include enterprise power loss protection (PLP). During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each device. In the event of an unexpected power loss, though, the cached data in a storage device’s internal DRAM buffers can be lost. This can occur with unexpected power outages, or when users unplug devices from the system. However, the Samsung PM893 and SSDs have been designed to prevent data loss resulting from unexpected power shutdowns with its PLP architecture. Upon detection of a failure, the SSD immediately uses the stored energy from their PLP capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.
Samsung PM893 SATA SSDs deliver
SATA Compatibility Extend the life of existing SATA-based servers. Expand storage capacity with up to 7.68TB per SSD, extend the life of systems that rely on hardware RAID controllers, or bring your hard disk drive-based server back to life with SSD performance. Flexible Family Portfolio Ten product variants covering a variety of common capacities (240 GB up to 7.68 TB) and write endurance levels of 1.3 DWPD.
Extra Specifications for Samsung MZ7L3480HCHQ-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM893 Series
Main Specifications | ||
Device Type | Solid state drive - internal | |
Capacity | 480GB | |
Form Factor | 2.5in x 7mm | |
Interface | SATA 6Gb/s | |
Dimensions (WxDxH) | 70 x 100 x 7 mm | |
NAND Flash Memory Type | Samsung V6 (128 layer) V-NAND TLC | |
Performance | ||
SSD Endurance | 1.3 DWPD | |
Internal Data Rate | 560 MBps (read) / 530 MBps (write) | |
4KB Random Read | 98000 IOPS | |
4KB Random Write | 31000 IOPS | |
Reliability | ||
Bytes per Sector | 512 | |
Miscellaneous | ||
MTBF | 2M hours | |
Compliant Standards | SATA 3.3 Compliant | |
Features | AES-XTS 256-bit Encryption Engine with TCG Opal 2.0 Compliant Management | |
Environmental | ||
Operating Environment | Temperature (Operating): 0 °C to 70 °C |
Warranty: | 3 years, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
E-mail: | returnservices@wiredzone.com |
If you need Technical Support for this item please contact: | |
Provider: | Samsung |
Type of Support: | FULL |
Phone No.: | 800-SAMSUNG |
URL: | Click here for Manufacturer Website |
