- Seagate ST10000NM017B Hard Drive 10TB SATA3 6Gb/s 7200 RPM 3.5in - Exos 7E10 Series

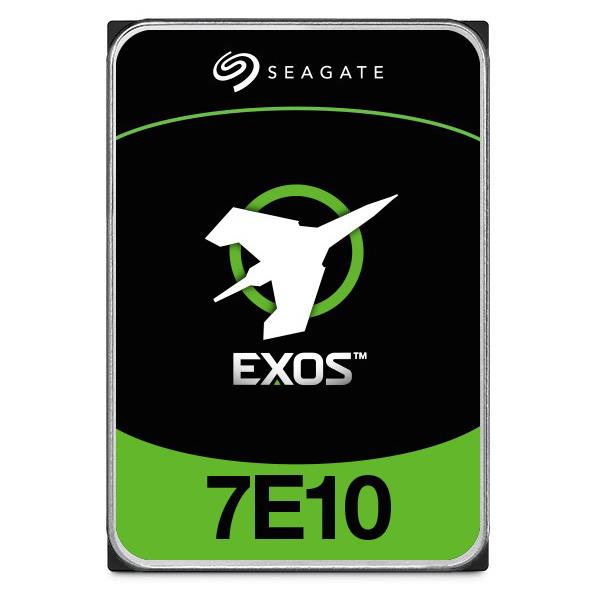

Seagate ST10000NM017B Hard Drive 10TB SATA3 6Gb/s 7200 RPM 3.5in - Exos 7E10 Series
Robust Bulk Data Storage for a 24×7 World
Enhanced Reliability, Data Protection, and Security
Optimized for demanding enterprise bulk data applications
Hard Drive 10TB SATA 6Gb/s 7200 RPM 3.5in 256MB Cache 512e/4KN Exos 7E10 Series - OEM
The Seagate Exos 7E10 enterprise hard drives confidently stores up to 10TB of data without sacrificing performance. The secure, high-capacity, high-performance drives are optimized for demanding enterprise bulk data applications.
key features:
7200 RPM spindle speed.
Full-track multiple-sector transfer capability without local processor intervention.
High instantaneous (burst) data transfer rates (up to 600MB per second).
Native Command Queuing with command ordering to increase performance in demanding applications.
Perpendicular recording technology provides the drives with increased areal density.
PowerChoice for selectable power savings
SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
State-of-the-art cache and on-the-fly error-correction algorithms.
Support for S.M.A.R.T. drive monitoring and reporting.
Supports latching SATA cables and connectors.
Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability.
Worldwide Name (WWN) capability uniquely identifies the drive.
Extra Specifications for Seagate ST10000NM017B Hard Drive 10TB SATA3 6Gb/s 7200 RPM 3.5in - Exos 7E10 Series
| Main Specifications | ||
| Device Type | Hard drive - internal - Standard Model Fast Format (512e/4Kn) | |
| Capacity | 10TB | |
| Form Factor | 3.5-inch | |
| Interface | SATA 6Gb/s | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth 5.787 in | |
| Weight | 1.59 lbs | |
| Reliability | ||
| Reliability Rating @ Full 247 Operation | 0.44% | |
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours per Year | 8760 | |
| Hard Drive | ||
| Buffer Size | 256 MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 | |
| Max Sustainable Transfer Rate | 263MB/s | |
| Average Latency | 4.16 | |
| Rotational Vibration | 12.5 | |
| Expansion / Connectivity | ||
| Interface Ports | Single | |
| Power | ||
| Idle (W) | 7.8 | |
| Requirement | +12V and +5V | |
| Environmental Parameters | ||
| Min Operating Temperature | Temperature, Operating (C): 5C 60C | |
| Shock, Operating Read/Write (Gs): 70/40Gs | ||
| Shock, Nonoperating, 1ms/2ms (Gs): 150/300 | ||
| Miscellaneous | ||
| MTBF | 2,000,000 | |
| Applications | Hyperscale applications/cloud data centers, Massive scale-out data centers, OLTP and HPC applications, High-capacity density RAID storage, Mainstream enterprise external storage arrays, Distributed file systems, including Hadoop and Ceph, Enterprise backup and restore—D2D, virtual tape, Centralized surveillance | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
