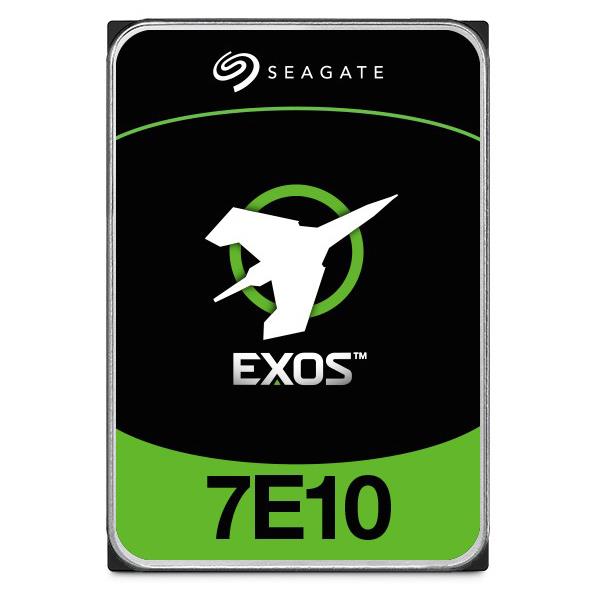

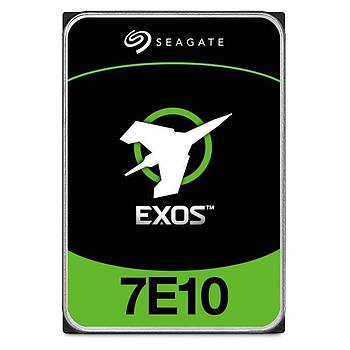

Seagate ST4000NM001B Hard Drive 4TB SAS 12Gb/s 7200 RPM 3.5in, 512n - Exos 7E10 Series
Perpendicular recording technology
Low TCO for demanding 24×7 operations
Vertical, horizontal, or top-down mounting
Optimized for demanding enterprise bulk data applications
Hard Drive 4TB SAS 12Gb/s 7200 RPM 3.5in 256MB Cache 512n Exos 7E10 Series - OEM
Seagate Exos 7E10 SAS drives provide high-performance, high-capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility, and high-density storage requirements.
Standard features
3.0 / 6.0/12.0 Gb Serial Attached SCSI (SAS) interface
128 - deep task set (queue)
Dedicated head load/unload zone
Drive Self Test (DST)
Embedded servo design
Firmware downloadable using the SAS interface
Flawed logical block reallocation at format time
Idle Read After Write (IRAW)
Industry-standard SFF 3.5-in dimensions
Integrated dual-port SAS controller supporting the SCSI protocol
Jumperless configuration.
No preventive maintenance or adjustments required
Perpendicular recording technology
Power Save
Programmable auto write and read reallocation
Programmable logical block reallocation scheme
Reallocation of defects on command (Post Format)
SAS Power Disable
Seagate RAID RebuildTM
Self-diagnostics performed when power is applied to the drive
Support for SAS expanders and fanout adapters
Supports up to 32 initiators
Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability
User-selectable logical block sizes for 512N (512, 520 or 528 bytes per logical block).
Vertical, horizontal, or top-down mounting
Extra Specifications for Seagate ST4000NM001B Hard Drive 4TB SAS 12Gb/s 7200 RPM 3.5in, 512n - Exos 7E10 Series
| Main Specifications | ||
| Device Type | Hard drive - internal - 512n format | |
| Capacity | 4TB | |
| Form Factor | 3.5-inch | |
| Interface | SAS 12Gb/s | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth 5.787 in | |
| Weight | 1.37 lbs | |
| Reliability | ||
| Reliability Rating @ Full 247 Operation | 0.44% | |
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours per Year | 8760 | |
| Hard Drive | ||
| Buffer Size | 256 MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | |
| Max Sustainable Transfer Rate | 236MB/s | |
| Average Latency | 4.16 | |
| Rotational Vibration | 12.5 | |
| Expansion / Connectivity | ||
| Interface Ports | Dual | |
| Power | ||
| Idle (W) | 6.59 | |
| Requirement | +12 V and +5 V | |
| Environmental Parameters | ||
| Min Operating Temperature | Shock, Operating Read/Write (Gs): 70/40Gs | |
| Shock, Nonoperating, 1ms/2ms (Gs): 150/300 | ||
| Temperature, Operating (C): 5C 60C | ||
| Miscellaneous | ||
| MTBF | 2,000,000 | |
| Applications | Hyperscale applications/cloud data centers, Massive scale-out data centers, OLTP and HPC applications, High-capacity density RAID storage, Mainstream enterprise external storage arrays, Distributed file systems, including Hadoop and Ceph, Enterprise backup and restore—D2D, virtual tape, Centralized surveillance | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
