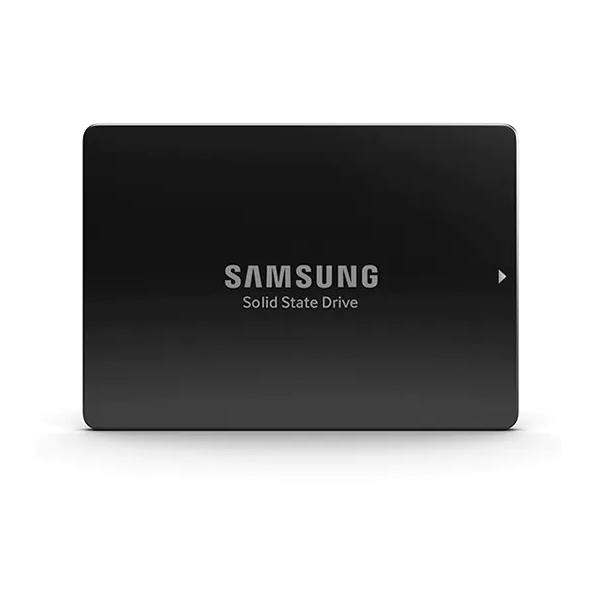

- Samsung MZ7L3480HBLT-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM897 Series
Samsung MZ7L3480HBLT-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM897 Series
Write endurance level of 3.0 DWPD
AES-XTS 256-bit encryption engine
Ideal for mixed read/write workloads
Include enterprise power loss protection
Hard Drive 480GB SSD SATA 6Gb/s 2.5in 7mm TLC 3.0DWPD Samsung PM897 Series - OEM
Samsung PM897 SSDs include enterprise power loss protection (PLP). During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each device. In the event of an unexpected power loss, though, the cached data in a storage device’s internal DRAM buffers can be lost. This can occur with unexpected power outages, or when users unplug devices from the system. However, the Samsung PM897 SSDs have been designed to prevent data loss resulting from unexpected power shutdowns with its PLP architecture. Upon detection of a failure, the SSD immediately uses the stored energy from their PLP capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.
Extra Specifications for Samsung MZ7L3480HBLT-00A07 Hard Drive 480GB SSD SATA3 6Gb/s 2.5in - PM897 Series
Main Specifications | ||
Device Type | Solid state drive - internal | |
Capacity | 480GB | |
Form Factor | 2.5in | |
Interface | SATA 6Gb/s | |
NAND Flash Memory Type | Samsung V6 (128 layer) V-NAND TLC | |
Dimensions (WxDxH) | 70 x 100 x 7 mm | |
Weight | 0.35 oz | |
Performance | ||
Internal Data Rate | 550 MBs (read) / 470 MBs (write) | |
4KB Random Read | 97000 IOPS | |
4KB Random Write | 32000 IOPS | |
Endurance DWPD | 3DWPD | |
Reliability | ||
Bytes per Sector | 512 Bytes | |
Environmental Parameters | ||
Operating Temperature | 0-70C | |
Miscellaneous | ||
Features | AES-XTS 256-bit Encryption Engine with TCG Opal 2.0 Compliant Management |
Warranty: | 3 years, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
E-mail: | returnservices@wiredzone.com |
If you need Technical Support for this item please contact: | |
Provider: | Samsung |
Type of Support: | FULL |
Phone No.: | 800-SAMSUNG |
URL: | Click here for Manufacturer Website |
