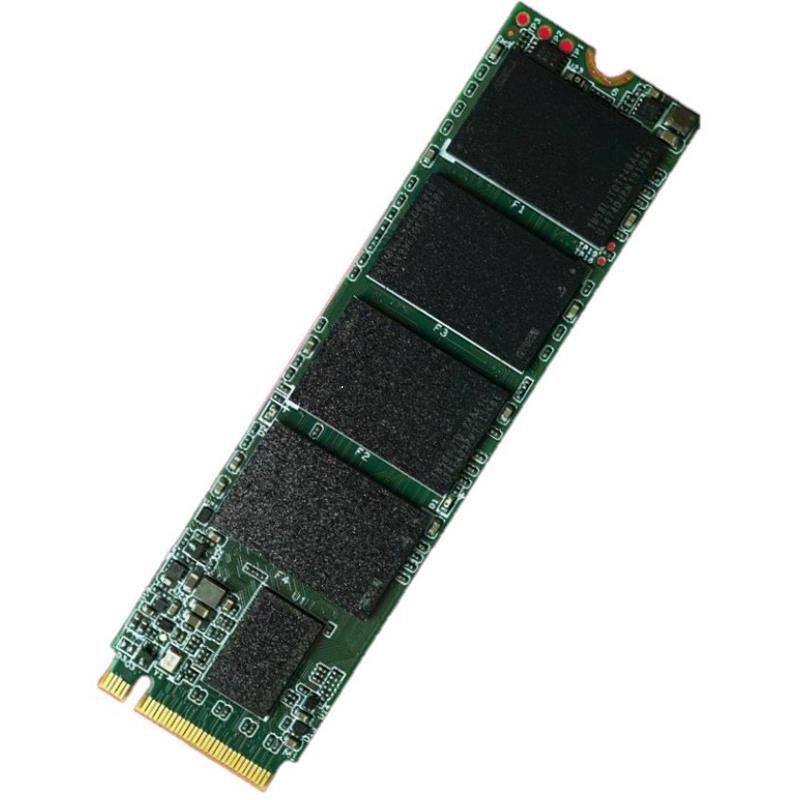

InnoDisk DEM28-C12DD1GWAQF-B051 512GB NVMe Solid-State Drive PCIe 3.0 x4 M.2 AES-256 Encryption - (P80) 3TE6 Series

InnoDisk DEM28-C12DD1GWAQF-B051 512GB NVMe Solid-State Drive PCIe 3.0 x4 M.2 AES-256 Encryption - (P80) 3TE6 Series

  • 3D TLC NAND Flash, LDPC ECC engine supported

  • Supports PCIe Gen III x 4, compliant with NVM 1.3

  • Embedded AES-256 bit engine, Hybrid Write Mode

The NVMe Solid-State Drive Features 512GB PCIe 3.0 x4 M.2 2280 Optimized For IoT Servers 3D Triple-Level Cell (TLC) WideTemp InnoDisk (P80) 3TE6 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    Innodisk M.2 (P80) 3TE6 is an NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80) 3TE6 supports PCIe Gen III x 4 and it is compliant with NVM 1.3 providing excellent top and also outstanding sustained performance. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-End data path protection that secures the data transmission between host system and NAND Flash. In addition, with embedded AES-256 bit engine, your data can be further secured.


    Features


    • PCIe Gen. III x4, NVMe 1.3

    • DRAM-less Solution

    • Less Controller Heat

    • Anti-vibration mechanical design

    • Hybrid Write Mode

    • LDPC ECC engine supported

    • iPowerGuard Protection

    Extra Specifications for InnoDisk DEM28-C12DD1GWAQF-B051 512GB NVMe Solid-State Drive PCIe 3.0 x4 M.2 AES-256 Encryption - (P80) 3TE6 Series

    Main Specifications
    Device TypeNVM Express DRAM-less SSD
    Capacity512GB
    Form FactorM.2 2280
    InterfacePCIe Gen 3.0 x4, NVMe 1.3
    NAND Flash Memory Type3D TLC NAND
    Performance
    Internal Data Rate2,000 MBps (read) / 1,850 MBps (write)
    Power
    Power Consumption5W
    Miscellaneous
    MTBF3 million hours
    FeaturesThermal Sensor, Embedded AES-256 bit engine
    Environmental Parameters
    Vibration Tolerance20G @7~2000Hz
    Shock Tolerance1500G @ 0.5ms
    Min Storage Temperature-40°C ~ +85°C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
