- NVIDIA Mellanox MBF2H332A-AEEOT Network Adapter 25GbE HHHL

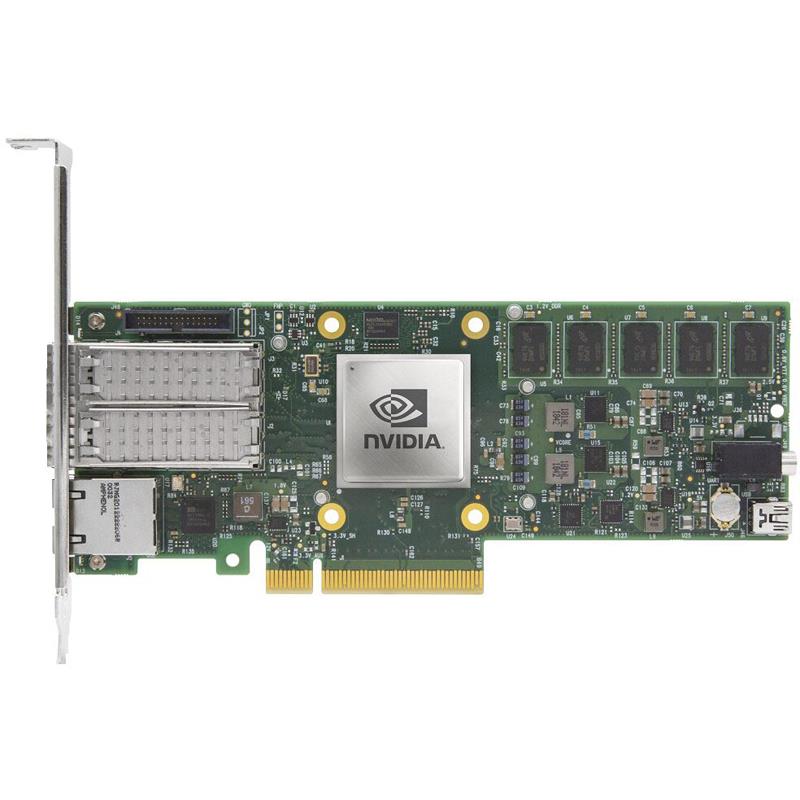

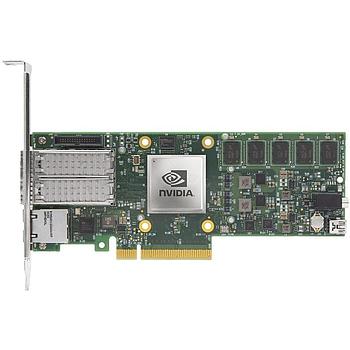

NVIDIA Mellanox MBF2H332A-AEEOT Network Adapter 25GbE HHHL
SHA 256-bit hardware acceleration
Dual-port Ethernet network controller
Includes 16GB DDR4 memory on-board
NVMe SNAP storage emulation Applications
BlueField-2 Network Adapter Card, Gen 3.0/4.0 x8 25GbE 2x SFP56 Connector, 2.5GHz Core Speed, Includes 16GB on-board Crypto enabled HHHL (half height, half length)
NVIDIA Mellanox BlueField-2 SmartNIC delivers advanced functionality, unmatched performance, and agility for today’s most demanding workloads. By combining the industry-leading ConnectX-6 Dx network adapter with an array of Arm cores, BlueField-2 delivers a perfect blend of hardware and software accelerations. BlueField-2 brings agile and high-performance solutions for security, machine learning, cloud, edge computing and storage applications while reducing total cost of ownership.
BlueField-2 SmartNIC features the second generation BlueField-2 Data Processing Unit (DPU)—an innovative and high-performance programmable networking engine. The DPU integrates an array of eight powerful 64-bit Armv8 A72 cores interconnected by a coherent mesh with a DDR4 memory controller and a dual-port Ethernet network controller.
BlueField-2 SmartNIC supports dual QSFP56 ports at link speeds of 10/25/50/100 GbE or a single port of 200 GbE, a 1 GbE out-of-band management port for the Arm subsystem, and includes an integrated 16-lane PCIe Gen 3.0/4.0 switch.
BlueField-2 SmartNIC complete portfolio includes a variety of form factors including HHHL (half-height, half-length), FHHL (full-height, half-length), and Open Compute Project Spec 3.0 (OCP 3.0 Small Form Factor).
At the heart of BlueField-2 SmartNIC is the industry-leading ConnectX-6 Dx network adapter with unprecedented built-in hardware functionality, performance and resiliency. BlueField-2 hardware accelerations include advanced RDMA/RoCE capabilities as well as innovative cryptography, storage and networking accelerations. Relying on these built-in offloads, the BlueField-2 powerful array of Arm cores can be programmed for sophisticated custom accelerations and control path manipulations. BlueField-2 also benefits from the rich Arm ecosystem to deliver complete solutions to cloud operators and service providers.
Key Features
Best-in-class hardware offloads with Arm processing power, including:
ASAP2 - Accelerated Switch and Packet Processing
NVMe SNAP storage emulation
IPsec/TLS data-in-motion
AES-XTS data-at-rest
A regular expression (RegEx) and DPI accelerations
SHA 256-bit hardware acceleration
Hardware Root of Trust (RoT)
1 GbE out-of-band management port
Extra Specifications for NVIDIA Mellanox MBF2H332A-AEEOT Network Adapter 25GbE HHHL
Main Specifications | ||
Device Type | Network adapter - 2 ports | |
Form Factor | HHHL Tall Bracket | |
Interface | Gen 3.0/4.0 x8 | |
Connectivity | ||
Connectors | 2x SFP56 | |
Processor / Memory | ||
Core Clock Speed | Core Speed: 2.5GHz | |
Memory Specifications | ||
Memory Types | 16GB on-board | |
Networking | ||
Hardware-based I/O Virtualization | SR-IOV, Up to 1K Virtual Functions, Up to 56 Physical Functions per host, VirtIO, Multi-function per port, VMware NetQueue support, Virtualization hierarchies, Virtualizing physical functions on a physical port, 1K ingress and egress QoS levels, Guaranteed QoS for VMs |
