- Supermicro AOC-CTG-i2T 2-Port 10 Gigabit 10GbE Ethernet Adapter

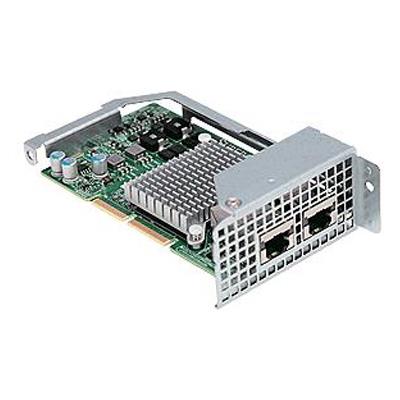

Supermicro AOC-CTG-i2T 2-Port 10 Gigabit 10GbE Ethernet Adapter
2-Port 10 Gigabit 10GbE Ethernet Adapter - PCI-E 2.1 x8, Intel X54010GbE Controller, Dual RJ-45 connectors with speed up to 10Gb/port, 2U Micro-LP - Includes BKT-0067 and BKT-0068L Brackets (Integration service with a SuperServer REQUIRED)
• Dual RJ45 Connectors
• 2U MicroLP Form Factor
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• Intel® QuickData Technology
• VMDq, Next-Generation VMDq, and
PC-SIG SR-IOV for Virtualized Environments
• Jumbo Frames Support up to 9 KB
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE)
• Support the most popular Network Operating Systems (NOSs)
• Support RJ-45 Category-6 or 6A
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-CTG-i2T 2-Port 10 Gigabit 10GbE Ethernet Adapter
| Add-on Card | ||
| Add-on Card | The Supermicro AOC-CTG-i2T is one of the lowest power and most cost effective 10GBase-T adapter solutions in today's data center marketplace. The auto-negotiation feature between 1GbE and 10GbE provided by the AOC-CTG-i2T offers users the backwards compatibility they need for a smooth transition to 10GbE. It reliably addresses the demanding needs of bandwidth intensive applications at a fraction of the cost of traditional 10GbE adapters by utilizing cost-effective RJ-45 connectors at a much longer cabling distance. The Supermicro AOC-CTG-i2T 10GbE adapter is truly a best-in-class solution for advanced data centers. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-CTG-i2T.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-CTG-i2T.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download Site ]:https://www.supermicro.com/wdl/Networking_Drivers/ | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ Download Site ]:https://www.supermicro.com/wdl/Networking_Drivers/ | |
| Compatibility Matrices | ||
| Servers | Supermicro MicroCloud and Twin Server Systems with microLP expansion slot See MicroLP Compatibility Matrix :https://www.supermicro.com/support/resources/aoc/microLP_compatibility.cfm | |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Specification | ||
| Specification | • General - Intel® X540 10GbE controller with integrated 10GBase-T copper PHYs - Compact size 2U MicroLP form factor - PCI-E x8 2.1 (2.5GT/s or 5GT/s) interface - Dual RJ-45 connectors with speed up to 10Gb/port - Load balancing on multiple CPUs - Intel® PROSet Utility for Windows® Device Manager - Maximum power consumption: about 13W • I/O Features - Intel® QuickData Technology: DMA engine that enhances data acceleration and lowers CPU usage - Support jumbo frames of up to 9 KB - 802.1q VLAN support - Two integrated independent 10GBase-T interfaces operate at 10GBase-T (10Gb/s) and 1000Base-T (1Gb/s) modes - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize interrupt overhead of and allow load-balancing between multiple cores/CPUs - Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux environments • Performance Features - TCP/UDP Segmentation Offload - IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload - Supports Fibre Channel over Ethernet (FCoE) - Low latency interrupts - DCA support • Virtualization Features - Support for Virtual Machine Device Queues (VMDq and Next-generation VMDq) - L2 Ethernet MAC address and VLAN filters - PC-SIG SR-IOV implementation - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segments - VXLAN through Software • Manageability Features - Preboot eXecuation Environment (PXE) support - Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters - iSCSI remote boot • OS Support - Windows® Server 2012 (x64 edition) - Windows® 8 (x64 edition and 32-bit) - Windows® Server 2008 R2 (x64 edition and 64-bit) - Windows® Server 2008 (x64 edition, 64-bit, and 32-bit) - Windows® 7 (x64 edition and 32-bit) - Windows® Vista (x64 edition and 32-bit) - Windows® Server 2003 (x64 edition, 64-bit, and 32-bit) - VMWare - RedHat EL, SuSe SLES - FreeBSD • Cables Support - RJ-45 Category-6 up to 55m; Category-6A up to 100m • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W) - Card PCB dimensions: 12.3cm (4.8") x 7.0cm (2.75") | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
