- InnoDisk DESSL-32GDK1EC1SFA-B051 SATADOM 32GB Designed With Hardware LDPC ECC Engine - SL 3TE7 Series

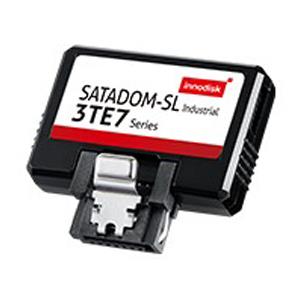

InnoDisk DESSL-32GDK1EC1SFA-B051 SATADOM 32GB Designed With Hardware LDPC ECC Engine - SL 3TE7 Series
Features TRIM, NCQ, and S.M.A.R.T.
SATA III (6.0GHz) Marvell NAND controller
Designed with hardware LDPC ECC engine
Provide high performance and prolong lifespan
SATA3DOM 32GB SATA3 6Gb/sec Built-in Pin 8 VCC Power Supply Flash Type: 3D TLC Vertical - InnoDisk SL 3TE7 Series - OEM
Innodisk SATADOM-SL 3TE7 is characterized by L architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L architecture is L architecture multiplied LDPC (Low-Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SL 3TE7 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Features
SATA III solution for industrial field
Exclusive L architecture
DRAM-less, 100% data integrity
Excellent random performance
Designed with hardware LDPC ECC engine
Built-in Pin 8 power supply
Extra Specifications for InnoDisk DESSL-32GDK1EC1SFA-B051 SATADOM 32GB Designed With Hardware LDPC ECC Engine - SL 3TE7 Series
| Main Specifications | ||
| Device Type | SATADOM | |
| Capacity | 32GB | |
| Form Factor | Vertical | |
| Interface | SATA III 6.0 Gb/s | |
| NAND Flash Memory Type | 3D TLC NAND | |
| Dimensions (WxDxH) | 33.06 x 29.6 x 10.5 | |
| Pin Connector | Built-in Pin 8 power supply | |
| Power | ||
| Power Consumption | 1.4W | |
| Environmental | ||
| Operating Environment | Vibration: 20G@7~2000Hz | |
| Shock: 1500G@0.5ms | ||
| Storage Temperature: -55°C ~ +95°C | ||
| Miscellaneous | ||
| MTBF | 3 million hours | |
| Features | Thermal Sensor, ATA Security, S.M.A.R.T. | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | InnoDisk |
| Type of Support: | FULL |
| Phone No.: | 510-770-9421 |
| URL: | Click here for Manufacturer Website |
