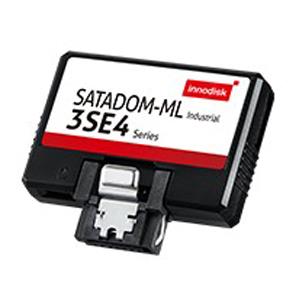

InnoDisk DESML-64GM41SCADBA-B051A SATADOM 64GB - 3SE4 Series
Marvell NAND controller and SLC NAND Flash
Features TRIM, NCQ, and S.M.A.R.T. In addition
Innodisk SATADOM-ML 3SE4 is designed for industrial field
Low Density Parity Check, Real-time wear leveling algorithm
SATA3DOM 64GB SATA3 6Gb/sec Built-in Pin 8 power supply, Flash Type: SLC - InnoDisk SATADOM-ML 3SE4 Series - OEM
Innodisk SATADOM-ML 3SE4 is characterized by L architecture with Marvell NAND controller and SLC NAND Flash. Innodisk’s exclusive L architecture is L architecture multiplied LDPC (Low-Density Parity Check). L (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide excellent performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-ML 3SE4 is designed for industrial field and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA onboard socket on the customer’s system without an additional power cable. Besides, the booting time for operation and the power consumption is less than the hard disk drive (HDD) and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Features
SATA III solution for industrial field
Exclusive L architecture
DRAM-less, 100% data integrity
High IOPS to reduce boot up timing
Designed with hardware LDPC ECC engine
Support Pin7/Pin 8 power supply
Extra Specifications for InnoDisk DESML-64GM41SCADBA-B051A SATADOM 64GB - 3SE4 Series
Main Specifications | ||
Device Type | SATADOM | |
Capacity | 64GB | |
Form Factor | Vertical | |
Interface | SATA III 6.0 Gb/s | |
NAND Flash Memory Type | SLC | |
Dimensions (WxDxH) | 36.7 x 31.2 x 10.7 | |
Pin Connector | Built-in Pin 8 power supply | |
Power | ||
Power Consumption | 1.58W (5V x 315mA) | |
Environmental | ||
Operating Environment | Vibration: 20G@7~2000Hz | |
Shock: 1500G@0.5ms | ||
Storage Temperature: -55°C ~ +95°C | ||
Miscellaneous | ||
Features | S.M.A.R.T., ATA Security |
Warranty: | 5 years, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
E-mail: | returnservices@wiredzone.com |
If you need Technical Support for this item please contact: | |
Provider: | InnoDisk |
Type of Support: | FULL |
Phone No.: | 510-770-9421 |
URL: | Click here for Manufacturer Website |
