100% cable-less, shock resistant, space-saving
SATA III standard interface with excellent performance
Power consumption is less than hard disk drive (HDD)
Smallest form factor is compatible with various design applications

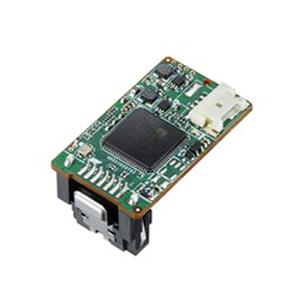

SATA3DOM 8GB SATA3 6Gb/sec Built-in Pin 8 power supply, Flash Type: SLC Horizontal - InnoDisk SATADOM-SH 3SE3 Series - OEM
Innodisk Serial ATA Disk on Module (SATADOM) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-SH 3SE3 is designed as the smallest form factor size that could enhance compatibility with various design applications.
Innodisk’s patented Pin 7 and Pin 8 SATA power supply technologies use the SATA connector itself as a power supply to drive the device without external power cables. It is a 100% cable-less, shock-resistant, space-saving and plug-and-play storage solution that optimizes airflow and makes the best use of limited board space in embedded and rackmount server systems.
Innodisk SATADOM-SH 3SE3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Features
Best boot drive solution for server and embedded system
SATA III interface
High IOPS to reduce boot up timing
Built-in Pin 8 power supply
Intelligent error recovery system
Zero mechanical interference
Anti-vibration mechanical design
iSMART disk health monitoring
| Main Specifications | ||
| Device Type | SATADOM | |
| Capacity | 8GB | |
| Form Factor | Horizontal | |
| Interface | SATA III 6.0 Gb/s | |
| NAND Flash Memory Type | SLC | |
| Dimensions (WxDxH) | 31.59 x 18 x 15.15 | |
| Pin Connector | Built-in 7 and 8 Pin power supply | |
| Power | ||
| Power Consumption | 0.34W (5V x 66.9mA ) | |
| Environmental | ||
| Operating Environment | Vibration: 20G@7~2000Hz | |
| Shock: 1500G@0.5ms | ||
| Storage Temperature: -55°C ~ +95°C | ||
| Miscellaneous | ||
| Features | S.M.A.R.T., ATA Security | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | InnoDisk |
| Type of Support: | FULL |
| Phone No.: | 510-770-9421 |
| URL: | Click here for Manufacturer Website |
