• MicroLP Form Factor
• Single SFP+ Connector
• Advanced Packet Filtering
• Intel QuickData Technology

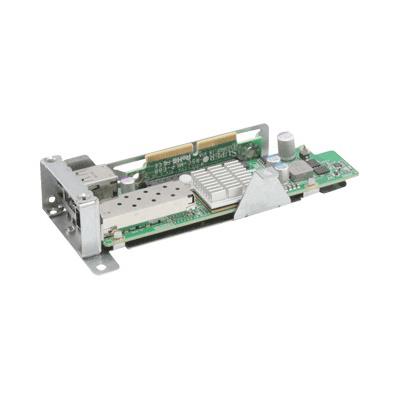

MicroLP 10GbE SFP+ Adapter Card, PCI-E 2.0 x8, Intel 82599EN - 10 Gigabit Ethernet - For MicroCloud and Twin Server Systems with microLP Expansion Slot For system integration / bundle, ONLY
• Intel® 82599EN 10GbE controller
• Supports virtualization features such as VMDq
• Preboot eXecution Environment (PXE) support
• Intel QuickData Technology: DMA engine that enhances
| Main Specifications | ||
| Device Type | Networking card | |
| Dimensions (WxDxH) | Card PCB dimensions (without end brackets): 12.8cm (5.04in) x 5.0cm (1.97in) x 2.35cm (0.93in) | |
| Form Factor | Compact size microLP | |
| Interface (Bus) Type | PCI Express x8 2.0 (up to 5GT/s) | |
| Storage Controller | ||
| Data Transfer Rate | 10 Gigabit | |
| Miscellaneous | ||
| Features | Load Balancing on Multiple CPUs | |
| Fibre Channel over Ethernet (FCoE) Support | ||
| Fibre Channel over Ethernet (FCoE) Support, Intel PROSet Utility for Windows Device Manager | ||
| PC-SIG SR-IOV for Virtualized Environments | ||
| Support both DAC Twin Axial and LC Fiber-Optic SR/LR Cables | ||
| Compatible Servers | Supermicro 12-node MicroCloud, systems with microLP expansion slot | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Included Accessories | Bracket, Riser Card, Driver Disk | |
| Expansion / Connectivity | ||
| Connections | Single SFP+ port and dual USB 2.0 ports | |
| Compatible Slots | 1x PCI Express 2.0 | |
| Environmental Parameters | ||
| Operating Temperature | 0C to 55C (32F to 131F) | |
| Software / System Requirements | ||
| OS Required | Windows 7, 2003, 2008, 2008 R2, Vista, RedHat EL, SuSe SLES, FreeBSD, VMWare | |
| OS Supports | Support for most Network Operating Systems (NOSs) | |
| Networking | ||
| Management Features | iSCSI Remote Boot Support | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
