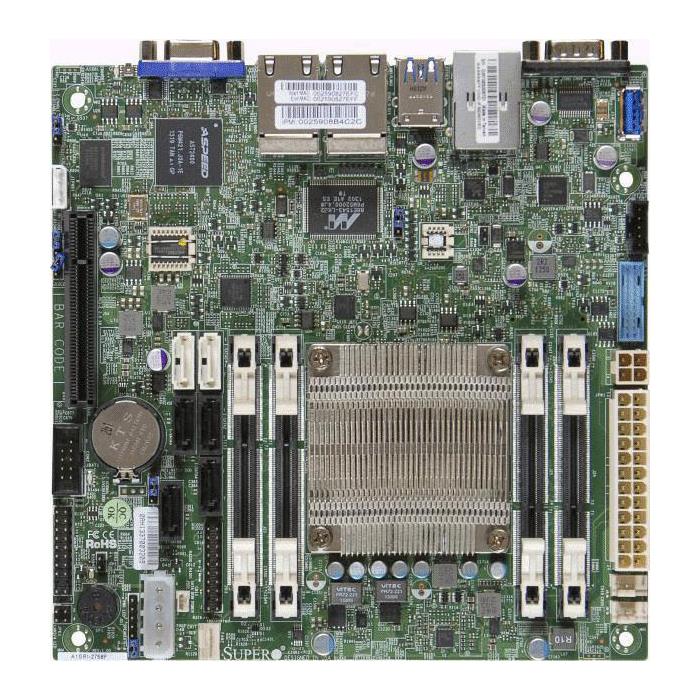

Supermicro A1SAi-2750F Motherboard Mini-ITX w/ Intel Atom C2750

• 1 SATA DOM power connector
• SoC Intel I347 Quad GbE MACs
• SoC controller for 4 SATA2 ports
• Intel Avoton Atom Processor C2750

Motherboard Mini-ITX w/ Intel Atom C2750, System-on-Chip - Supports up to 64GB DDR3 up to 1600MHz (4x 240-pin DDR3 DIMM Socket) - Onboard : C2000 SoC SATA-600 / SATA-300 Controller, C2000 SoC 1354 4x Gigabit Ethernet Controller, IPMI with dedicated LAN, BMC Integrated Aspeed AST2400 VGA, 1x SATA DOM (Disk on Module) power connector - MBD-A1SAi-2750F


    413.00413.00413.0USD

    413.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 1x PCI-E 2.0 x8 slot
    • 2x SATA3 and 4x SATA2 ports
    • Quad LAN with Marvell® Alaska® 88E1543
    • Intel® Atom processor C2750, SoC, FCBGA 1283, 20W 8-Core
    • Up to 32GB DDR3 1600MHz ECC SO-DIMM in 4 DIMM sockets
    • 4x USB 3.0 (2 rear, 1 via header, 1 Type A), 2x USB 2.0 ports (rear)
    • 1x SATA DOM power connector, 2x fast UART 16550 serial (1 rear, 1 header), TPM 1.2 onboard Header

    Extra Specifications for Supermicro A1SAi-2750F Motherboard Mini-ITX w/ Intel Atom C2750

    Main Specifications
    Dimensions (WxDxH) 6.75" x 6.75" (17.145cm x 17.145cm)
    Form Factor Mini-ITX
    Product Type Atom Boards
    Processor
    Installed Brand Intel® Atom™ Processor C2750
    Note CPU TDP 20W (8-Core), FCBGA 1283, System-on-Chip
    System Memory
    DIMM Sizes 8GB, 4GB, 2GB
    Memory Capacity 4x 204-pin DDR3 SO-DIMM socket - Supports up to 32GB DDR3 ECC memory
    Memory Type 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
    Memory Voltage 1.5 V, 1.35 V
    On-Board Devices
    Network Controllers SoC Quad GbE Controller, Marvell® Alaska® 88E1543 Gigabit Ethernet Transceiver, Virtual Machine Device Queues reduce I/O overhead, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    SATA SoC SATA3 (6Gbps), SATA2 (3Gbps)
    USB USB 3.0 - Renesas uPD720201
    Video BMC integrated Aspeed AST2400
    Input / Output
    DOM 1x SATA DOM (Disk on Module) power connector
    LAN 4x RJ45 Gigabit Ethernet LAN ports
    Others TPM 1.2 header
    Serial ATA 2x SATA3 (6Gbps) ports - 4x SATA2 (3Gbps) ports
    Serial Ports 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
    USB 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header) - 2x USB 2.0 ports (2 rear)
    VGA 1x VGA Port
    Expansion / Connectivity
    Expansion Slots Total (Free) 1x PCI-E 2.0 x8 slot
    Chassis Optimized for
    1U Chassis CSE-504-203B, CSE-505-203B
    Mini-iTX Chassis CSE-101i
    System BIOS
    BIOS Features Plug and Play (PnP), DMI 2.3, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI
    BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS
    Operating Environment
    Operating Temperature 0°C to 60°C
    Parts List
    Cables CBL-0044L
    I/O Shield MCP-260-00042-0N
    Motherboard MBD-A1SAi-2750F -B
