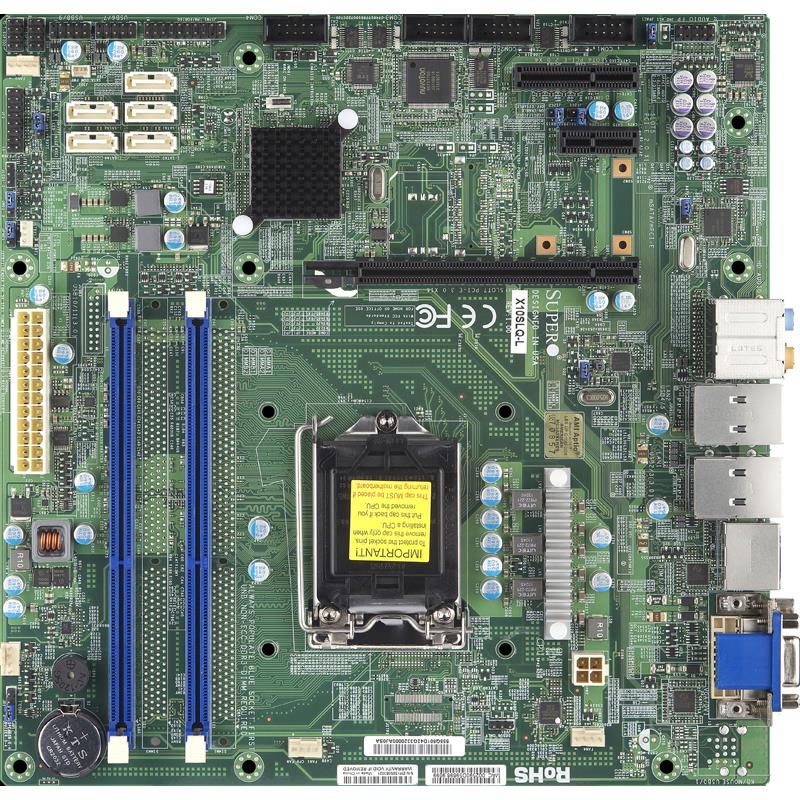

| System Memory |
| DIMM Sizes | 1GB, 2GB, 4GB, 8GB |
| Memory Capacity | Up to 16GB Unbuffered non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots |
| up to 16GB UDIMM non ECC |
| Memory Voltage | 1.35V, 1.5V |
| Memory Type | 1600MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | Intel® Q87 Express |
| Network Controllers | Single LAN with Intel® PHY I217LM Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| SATA | Intel® Q87 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | 7.1 HD Audio header and rear I/O |
| Graphics | 3 Independent Displays |
| Intel® HD 4600 Graphics |
| Input / Output |
| SATA | 5 SATA3 (6Gbps) port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 6 USB 2.0 ports (2 rear + 4 headers) |
| 2 USB 3.0 ports (2 rear) |
| Video Output | 3 Independent Displays |
| 1 VGA port, 1 HDMI port, 1 DVI - D port, |
| Serial Port / Header | 4 COM Ports (4 headers) 4 fast UART 16550 serial |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | ACPI 5.0 |
| USB Keyboard support |
| DMI (SMBIOS) 2.7 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Product SKUs |
| Product SKUs |
| Physical Stats |
| Form Factor | uATX |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor/Cache |
| CPU | Intel® 4th Generation Core i3 series, Intel® 4th Generation Core i5 series, Intel® 4th Generation Core i7 series, Intel® Celeron®, Intel® Pentium®v. |
| Single Socket LGA 1150 supported, CPU TDP support Up to 95W TDP |
| Expansion Slots |
| PCI-E | 1 PCI-E 3.0 x16 (in x16 slot) |
| 1 PCI-E 2.0 x4 |
| 1 PCI-E 2.0 x1 |
| Management |
| Software | AMT, NMI, SuperDoctor® III, vPro, Watchdog |
| Power Configurations | Main Switch Override Mechanism |
| Power-on mode for AC power recovery |
| ACPI Power Management |
| Internal/External modem ring-on |
| PC Health Monitoring |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 4 -fan status, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, Chassis intrusion header, Memory, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Adaptive Thermal Monitor, PECI 3.0 |
| LED | CPU / System Overheat LED, +5V Standby alert LED |
| Other Features | ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, WOL |
| Operating Environment |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
