| System Memory |
| DIMM Sizes | 2GB, 4GB, 8GB |
| Memory Capacity | Up to 16GB Unbuffered non-ECC SO-DIMM, DDR3-1600MHz, in 2 DIMM slots |
| Memory Voltage | 1.35V, 1.5V |
| Memory Type | 1600MHz non-ECC DDR3 SDRAM 64-bit, 204-pin gold-plated SODIMMs |
| On-Board Devices |
| Chipset | Intel® Q87 Express |
| Network Controllers | Single LAN with Intel® Ethernet Connection I217-V Single LAN with Intel® Ethernet Controller I210-AT |
| Graphics | 3 Independent Displays |
| Intel® HD 4600 Graphics |
| SATA | Intel® Q87 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| SATA | 4 SATA3 (6Gbps) port |
| USB | 2 USB 3.0 ports (2 rear) |
| 5 USB 2.0 ports (2 rear + 2 headers + 1 Type A) |
| Video Output | 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - I port, |
| 3 Independent Displays |
| Serial Port / Header | 5 COM Ports (2 rear, 3 headers), 1 RS232/422/485, 4 RS232 5 fast UART 16550 serial |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Product SKUs |
| Product SKUs |
| Physical Stats |

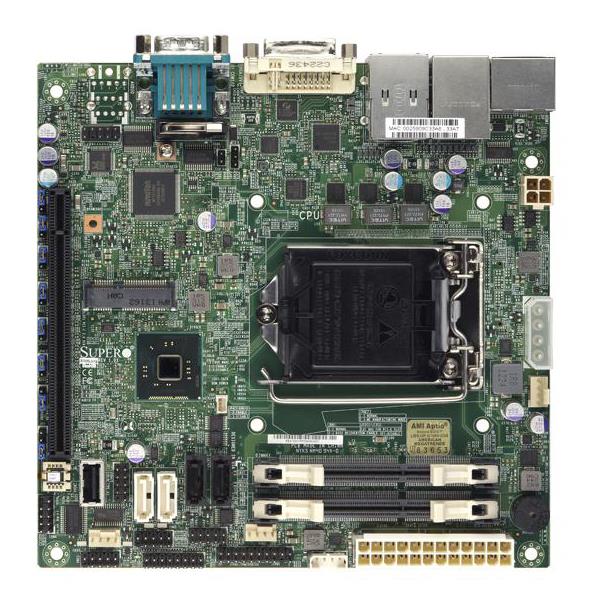

| Form Factor | Mini-ITX |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor/Cache |
| CPU | Intel® 4th Generation Core i3 series, Intel® 4th Generation Core i5 series, Intel® 4th Generation Core i7 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v3. |
| Single Socket LGA 1150 supported, CPU TDP support Up to 91W |
| Expansion Slots |
| PCI-E | 1 PCI-E 3.0 x16 |
| Mini-PCIE with mSATA support |
| Management |
| Software | NMI, SuperDoctor® III, Watchdog |
| Power Configurations | Main Switch Override Mechanism |
| Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, HT, Memory, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT |
| FAN | 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Adaptive Thermal Monitor, PECI 3.0 |
| LED | CPU / System Overheat LED, +5V Standby alert LED |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, RoHS, System level control, WOL |
| Operating Environment |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
