| Main Specifications |
| Device Type | SuperWorkstation |

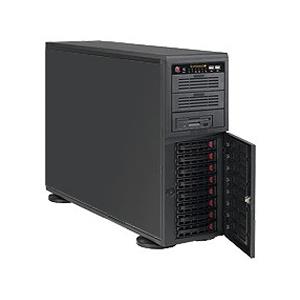

| Form Factor | 4U Rackmountable / Tower - SC743TQ-865-SQ, Optional Rackmount Kit (CSE-PT26) |
| Dimensions (WxDxH) | Height 7.0" (178mm) x Width 17.2" (437mm) x Depth 25.5" (648mm) |
| Weight | 63 lbs (28.6kg) |
| Enclosure Color | Black |
| Supported Motherboards | Super C7X58 |
| Processor |
| Compatible Processors | Intel Core i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition, Intel Core i7 series, Intel Xeon 5600/5500 series, Intel Xeon 3600/3500 series |
| Compatible Socket | LGA 1366 Socket |
| System Bus | QPI (up to 6.4 GT/s) |
| System Memory |
| Memory Capacity | Supports up to 24 GB 1600 / 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory, Three Channel memory bus, 6 DIMM slots |
| Memory Type | 1600 / 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory), Supports Intel x4 and x8 Single Device Data Correction (SDDC) |
| System Memory (per Node) |
| DIMM Sizes | 256MB, 512MB, 1GB, 2GB, 4GB |
| Memory Voltage | 1.5 V |
| On-Board Devices |
| Chipset | Intel X58 Express chipset, ICH10R |
| SATA RAID | Intel ICH10R SATA 3.0Gbps Controller, RAID 0, 1, 5, 10 support |
| Network Controllers | Dual Intel 82574L Gigabit Ethernet Controller, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Super I/O | Winbond 83627DHG chip |
| Clock Generator | CK505 |
| USB | 8x USB rear ports, 2x USB on-board, 1x USB internal header (2 ports), Total 12 USB 2.0 Compliant |
| Input / Output |
| Audio | Realtek ALC883 7.1 HD audio |
| Serial ATA | 6 Serial ATA ports, 6 SATA hard drives supported |
| Floppy | 1 Floppy port; 1.44 MB support |
| LAN | 2x RJ45 LAN ports |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 2 Fast UART 16550 serial header |
| IEEE 1394a | 2x headers, 1x external connector |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 (x16) PCI-E 2.0 slots, 1 (x4) PCI-E slot (using x8 slot) |
| 1x 32-bit PCI slot |
| Expansion Bays Total (Free) | 6x SATA Hot-swap Drives, 2x Spare Trays |
| Peripheral Bay (Free) | 2x 5.25" Peripheral Drive Bay, 1x 5.25" Bay For Floppy Drive |
| System BIOS |
| BIOS Type | 4Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | DMI 2.3, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat / Fan Fail LED |
| Ports | 2x USB Ports |
| SAS/SATA Backplane |
| SAS/SATA Backplane | SC743 SATA Backplane w/ Enclosure Management |
| System Cooling |
| Fans/Air Shroud | 2x 8cm Hot-swappable PWM Cooling Fans |
| 1x 9cm Hot-Swappable Rear Exhaust PWM Fan |
| 1x Active heatsink w/ heatpipe |
| Power Supply |
| Power Supply | 865W AC power supply (cooling-redundant) w/ PFC |
| Certification | 80 PLUS |
