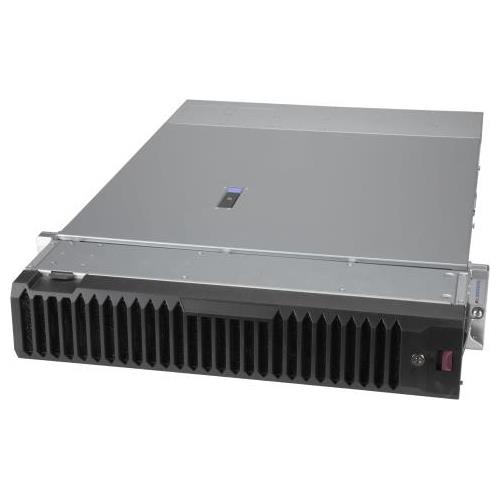

- Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Cloud Computing
• Network Function Virtualization (NFV)
• 5G Networking
Barebone 2U Rackmount SuperServer, Dual Socket P+ (LGA-4189), Intel Xeon Scalable Processors 3rd Generation. Up to 8TB in 32DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series (up to 12TB with DRAM), Chipset: Intel C621A, 6x 2.5in hot-swap NVMe/SATA drive bays (6x 2.5in NVMe hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity optional with 2 AIOM networking slots, 2000W AC Power Supply w/ PMBus, (CSE-HE211-R000NFP+Super X12DHM-6)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default); 1 PCIe 4.0 x16 expansion slots (Optional)
4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6. 6 heavy duty hot-swap fans with optimal fan speed control Front I/O, tool-less design
7. Redundant 2000W redundant AC power supplies
Extra Specifications for Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 4x 1GbE BaseT with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HE211-R000NFP | |
| Note | Standard sliding rail kit: Post to Post 19.1" ~ 26.4“ | |
| 2U Front Bezel | ||
| Replaceable UL900-2004 certified air filter | ||
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 22.6" (574mm) | |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) | |
| Weight | Net Weight: 34.4 lbs (15.6 kg) | |
| Gross Weight: 47.4 lbs (21.5 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | LAN1 activity | |
| System information | ||
| LAN2 activity | ||
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe OR 2 M.2 SATA3 | ||
| System Cooling | ||
| Fans | 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz | ||
| +12V | Max: 83A (100Vac-127Vac) | |
| Max: 150A (200Vac-220Vac) | ||
| Max: 165A (220Vac-230Vac) | ||
| Max: 166A (220Vac-240Vac) | ||
| Max: 166A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) | ||
| Note | Operating Relative Humidity: 5% to 85% with excursion of | |
| Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-220HE-FTNR-NEBS | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 2.0 port(s) (2 front) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 or x8 FHFL slot(s) | |
| 1 PCIe 4.0 x8 FHFL slot(s) | ||
| 2 PCIe 4.0 x8FHFL slot(s) | ||
| 2 PCIe 4.0 x8 FHHL slot(s) | ||
| Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Add on Cards | AOC-A100G-B2CM | $ 609.50 | 1 | AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS | ||
| Add on Cards | AOC-A25G-b2SM | 1 | AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS | |||
| Add on Cards | AOC-E810-XXVDA4 | $ 861.00 | 1 | Intel E810-XXVDA4 PCIe 4-port 25GbE SFP28 Gen4x16, RoHS | ||
| Add on Cards | AOC-S3908L-H8IR-16DD | $ 702.00 | 1 | Boardcom 3908L SAS controller | ||
| Add on Cards | AOC-STG-I4S | $ 374.50 | 1 | Standard LP 4-port 10G SFP+ | ||
| Add on Cards | AOC-STG-I4T | $ 610.50 | 1 | PCIe Low Profile form factor, Quad 10GBase-T Ports (RJ45), | ||
| Add on Cards | AOC-STGF-I2S | $ 242.00 | 1 | Std LP 2-port 10G SFP+, Intel X710 | ||
| Add on Cards | GPU-NVTA100-40-PS | 1 | NVIDIA A100 40GB CoWoS HBM2 PCIe 4.0-- Passive Cool | |||
| CPU | P4X-ICX6338T-SRKXF | 2 | ICX 6338T 2P 24C/48T 2.1G 36M 11.2GT 165W 4189 M1 | |||
| Memory | MEM-DR416L-CL06-ER32 | 4 | Micron 16GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR416L-SL02-ER32 | 4 | Samsung 16GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR432L-CL05-ER32 | 4 | Micron 32GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR432L-HL03-ER32 | 4 | Hynix 32GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR432L-SL02-ER32 | 4 | Samsung 32GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR464L-CL03-ER32 | 4 | Micron 64GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR464L-HL02-ER32 | 4 | Hynix 64GB DDR4-3200 ECC RDIMM | |||
| Memory | MEM-DR464L-SL01-ER32 | 4 | Samsung 64GB DDR4-3200 ECC RDIMM | |||
| Storage | HDS-I2T0-SSDSC2KG480G8 | 1 | Intel D3-S4610 480GB SATA 6Gb/s 3D TLC 2.5" 7mm 3DWPD Rev.2 | |||
| Storage | HDS-IMT0-SSDSCKKB960G8 | 1 | Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD | |||
| Storage | HDS-IUN0-SSDPE2KE032T8 | 1 | Std LP 2-port 10G SFP+, Intel X710 | |||
| Storage | HDS-M2T-MTFDDAK960TDS1AW | 1 | Micron 5300 PRO 960GB, SATA, 2.5", 3D TLC, 1.5DWPD | |||
| Storage | HDS-S2T1-MZ7LH960HAJR05 | 1 | Samsung PM883 960GB SATA 6Gb/s V4 TLC 2.5" 7mm (1.3 DWPD) | |||
| Storage | HDS-SMN1-MZ1LB960HAJQ07 | 1 | Samsung PM983 960GB NVMe PCIe3x4 V4 M.2 22x110mm (1.3 DWPD) | |||
| Storage | HDS-SUN1-MZQLB960HAJR07 | 1 | Samsung PM983 960GB NVMe PCIe3x4 V4 TLC 2.5" 7mm (1.3 DWPD) | |||
| TPM security module | AOM-TPM-9670V-S-P | 1 | SPI capable vertical TPM 2.0 provisioned for server,RoHS |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
