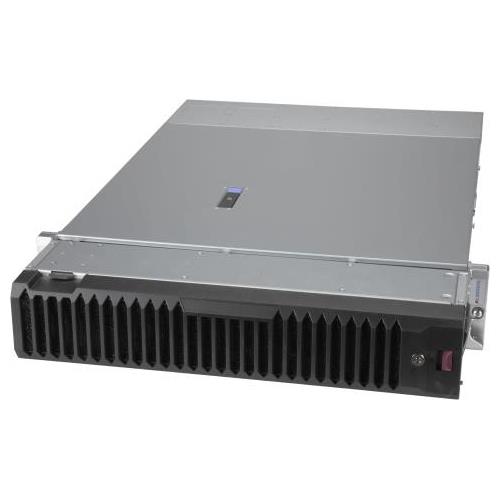

- Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• 5G Core and Edge
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Rackmount SuperServer, Dual Socket P+ (LGA-4189), Intel Xeon Scalable Processors 3rd Generation. Up to 8TB in 32DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series (up to 12TB with DRAM), Chipset: Intel C621A, 6x 2.5in hot-swap NVMe/SATA drive bays (6x 2.5in NVMe hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity optional with 2 AIOM networking slots, 2000W AC Power Supply w/ PMBus, (CSE-HE211-R000NFP+Super X12DHM-6)
1. Dual-socket LGA-4189 3rd Gen Intel Xeon Scalable processors
2. 32 DIMM slots supporting up to 8TB DRAM and up to 8TB Optane PMem (12TB max combined)
3. Three PCIe 4.0 x16 GPU/accelerator slots (default) plus one optional PCIe 4.0 x16 slot
4. Two AIOM (OCP 3.0) networking slots for flexible connectivity
5. Up to six 2.5" hot-swap drive bays with NVMe/SATA support
6. Six heavy-duty hot-swap fans with optimized cooling and front I/O, tool-less design
7. Redundant 2000W AC power supplies
Extra Specifications for Supermicro SYS-220HE-FTNR-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 4x 1GbE BaseT with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HE211-R000NFP | |
| Note | Standard sliding rail kit: Post to Post 19.1" ~ 26.4“ | |
| 2U Front Bezel | ||
| Replaceable UL900-2004 certified air filter | ||
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 22.6" (574mm) | |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) | |
| Weight | Net Weight: 34.4 lbs (15.6 kg) | |
| Gross Weight: 47.4 lbs (21.5 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | LAN1 activity | |
| System information | ||
| LAN2 activity | ||
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe OR 2 M.2 SATA3 | ||
| System Cooling | ||
| Fans | 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz | ||
| +12V | Max: 83A (100Vac-127Vac) | |
| Max: 150A (200Vac-220Vac) | ||
| Max: 165A (220Vac-230Vac) | ||
| Max: 166A (220Vac-240Vac) | ||
| Max: 166A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) | ||
| Note | Operating Relative Humidity: 5% to 85% with excursion of | |
| Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-220HE-FTNR-NEBS | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 2.0 port(s) (2 front) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 or x8 FHFL slot(s) | |
| 1 PCIe 4.0 x8 FHFL slot(s) | ||
| 2 PCIe 4.0 x8FHFL slot(s) | ||
| 2 PCIe 4.0 x8 FHHL slot(s) | ||
| Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DHM-6 | 1 | Super X12DHM-6 Motherboard | |
| Motherboard / Chassis | CSE-HE211-R000NFP | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-AIOM-2X8-P | 1 | 2nd AIOM board (cable solution) for Hyper-E2Usystem,RoHS | |
| Add-on Card / Module | AOM-HE211-AIOM-P | 1 | AIOM connection for Hyper-E 2U system,RoHS | |
| Add-on Card / Module | AOM-HS119-IO-P | 1 | Hyper IO Board,RoHS | |
| Backplane | BPN-NVME4-HE211N-S6 | 1 | 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS | |
| Cable | CBL-GNZ4-1221LP-85 | 1 | Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R | |
| Cable | CBL-PWEX-1136-40 | 2 | MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-SAST-1218LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85 | |
| Cable | CBL-SAST-1222LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM, | |
| Cable | CBL-SAST-1223LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85 | |
| Cable | CBL-SAST-1226LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM, | |
| Cable | CBL-SAST-1229LP-85 | 3 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85 | |
| Cable | CBL-SAST-1230LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O | |
| Cable | CBL-SAST-1232LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O | |
| Cable | CBL-SAST-1243LP-85 | 1 | SlimlineLP x8 (STR to STR),INT,30CM,85 OHM,RoHS | |
| Cable | CBL-SAST-1249LP-85 | 1 | SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8 | |
| Cable | CBL-PWEX-1142-40 OR | 1 | MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS | |
| Cable | CBL-PWEX-1142B-40 | 0 | MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS | |
| Cable | CBL-OTHR-1117 OR | 1 | 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS | |
| Cable | CBL-CDAT-1060-30 | 0 | 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS | |
| Cable | CBL-CDAT-1290F | 1 | [NR] FRONT CNTL,20 TO 20 PIN,P0.5,FLAT,90CM,STD,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1104-8 | 1 | [NR] 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM | |
| Fan | FAN-0215L4 | 6 | 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers | |
| Front Bezel | MCP-210-21101-0B | 1 | 2U Black Front Bezel with NEBs Filter for HE211 Front Chassi | |
| Power Supply | PWS-2K08F-1R | 2 | 1U 2000W 100-240VAC/50-60Hz, reverse airlfow | |
| Riser Card | RSC-H2-6888G4 | 1 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and three PCI | |
| Riser Card | RSC-H2-68G4 | 2 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078PR | 2 | 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers | |
| *Front Panel | FPB-FP826-T | 1 | Chassis front control board for SC826 | |
| *Drive Tray(s) | MCP-220-00178-0B | 6 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH |
