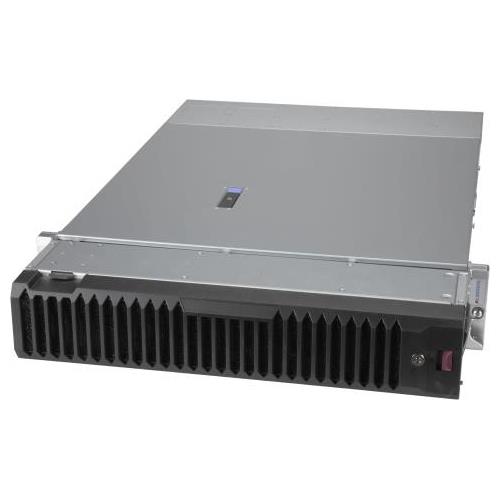

Supermicro SYS-220HE-FTNRD-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• 5G Core and Edge
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Rackmount SuperServer Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Supports up to 270W TDP CPUs (Air Cooled), Up to 4 double-width GPU. Intel C621A Chipset, Up to 8TB in 32DIMM slots, R/LRDIMM, Support Intel Optane persistent memory 200 series (up to 12TB with DRAM), 6x 2.5in hot-swap NVMe/SATA drive bays (6x 2.5in NVMe hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity optional with 2 AIOM networking slots, 1300W Power Supply, (CSE-HE211-R000NFP+Super X12DHM-6)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default); 1 PCIe 4.0 x16 expansion slots (Optional)
4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6. 6 heavy duty hot-swap fans with optimal fan speed control Rear I/O, tool-less design
7. 1300W DC power supplies
Extra Specifications for Supermicro SYS-220HE-FTNRD-NEBS Hyper 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 4x 1GbE BaseT with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HE211-R000NFP | |
| Note | Standard sliding rail kit: Post to Post 19.1" ~ 26.4“ | |
| 2U Front Bezel | ||
| Replaceable UL900-2004 certified air filter | ||
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 22.6" (574mm) | |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) | |
| Weight | Net Weight: 34.4 lbs (15.6 kg) | |
| Gross Weight: 47.4 lbs (21.5 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | LAN1 activity | |
| System information | ||
| LAN2 activity | ||
| Expansion Slots | ||
| Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. | |
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 or x8 FHFL slot(s) | |
| 1 PCIe 4.0 x8 FHFL slot(s) | ||
| 2 PCIe 4.0 x8FHFL slot(s) | ||
| 2 PCIe 4.0 x8 FHHL slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe OR 2 M.2 SATA3 | ||
| System Cooling | ||
| Fans | 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| DC Input | 1300W | |
| +12V | Max: 108.3A | |
| 12V SB | Max: 2.1A / Min: 0A | |
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) | ||
| Note | Operating Relative Humidity: 5% to 85% with excursion of | |
| Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-220HE-FTNRD-NEBS | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 2.0 port(s) (2 front) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DHM-6 | 1 | Super X12DHM-6 Motherboard | |
| Motherboard / Chassis | CSE-HE211-R000NFP | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-AIOM-2X8-P | 1 | 2nd AIOM board (cable solution) for Hyper-E2Usystem,RoHS | |
| Add-on Card / Module | AOM-HE211-AIOM-P | 1 | AIOM connection for Hyper-E 2U system,RoHS | |
| Add-on Card / Module | AOM-HS119-IO-P | 1 | Hyper IO Board,RoHS | |
| Backplane | BPN-NVME4-HE211N-S6 | 1 | 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS | |
| Cable | CBL-GNZ4-1221LP-85 | 1 | Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R | |
| Cable | CBL-PWEX-1136-40 | 2 | MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-SAST-1218LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85 | |
| Cable | CBL-SAST-1222LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM, | |
| Cable | CBL-SAST-1223LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85 | |
| Cable | CBL-SAST-1226LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM, | |
| Cable | CBL-SAST-1229LP-85 | 3 | SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85 | |
| Cable | CBL-SAST-1230LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O | |
| Cable | CBL-SAST-1232LP-85 | 1 | SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O | |
| Cable | CBL-SAST-1243LP-85 | 1 | SlimlineLP x8 (STR to STR),INT,30CM,85 OHM,RoHS | |
| Cable | CBL-SAST-1249LP-85 | 1 | SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8 | |
| Cable | CBL-OTHR-1117 OR | 1 | 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS | |
| Cable | CBL-CDAT-1060-30 | 0 | 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS | |
| Cable | CBL-PWEX-1142-40 OR | 1 | MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS | |
| Cable | CBL-PWEX-1142B-40 | 0 | MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS | |
| Cable | CBL-CDAT-1290F | 1 | [NR] FRONT CNTL,20 TO 20 PIN,P0.5,FLAT,90CM,STD,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1104-8 | 1 | [NR] 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM | |
| Fan | FAN-0215L4 | 6 | 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers | |
| Front Bezel | MCP-210-21101-0B | 1 | 2U Black Front Bezel with NEBs Filter for HE211 Front Chassi | |
| Power Supply | PWS-1K30F-1R | 2 | 1300W -48Vdc single output power supply | |
| Riser Card | RSC-H2-6888G4 | 1 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and three PCI | |
| Riser Card | RSC-H2-68G4 | 2 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078PR | 2 | 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers | |
| *Front Panel | FPB-FP826-T | 1 | Chassis front control board for SC826 | |
| *Drive Tray(s) | MCP-220-00178-0B | 6 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
