| Motherboard |
| Motherboard | Super X13SAE |
| Processor |
| CPU | Single Socket V (LGA-1700) |
| 12th/13th Generation Intel® Core™ Processors |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Up to 128GB: 4x 32 GB DRAM |
| Memory Type: 4400MHz ECC DDR5 UDIMM |
| Memory Voltage | 1.1 V |
| Error Detection | ECC/Non-ECC |
| Note | Support ECC/Non-ECC DDR5 UDIMM. ECC function are supported on Intel Select SKUs. |
| On-Board Devices |
| Chipset | Intel® W680 |
| Network Connectivity | 1x 1GbE BaseT with Intel® i219LM |
| 1x 2.5GbE BaseT with Intel® i225V |
| Input / Output |
| SATA | 8 SATA (3Gbps) port(s) |
| USB | 3 USB 3.2 Gen 1 port(s) (2 front Type A; 1 front Type C) |
| 3 USB 3.2 Gen 2x1 port(s) (3 rear Type A) |
| 1 USB 3.2 Gen 2x2 port(s) (1 rear Type C) |
| Serial Port | 1 COM Port(s) (1 header) |
| Video | 1 HDMI port(s) |
| 1 DisplayPort (s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | SuperDoctor 5 |
| Power Configurations | ACPI 6.0 |
| PC Health Monitoring |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-735D4-668B |

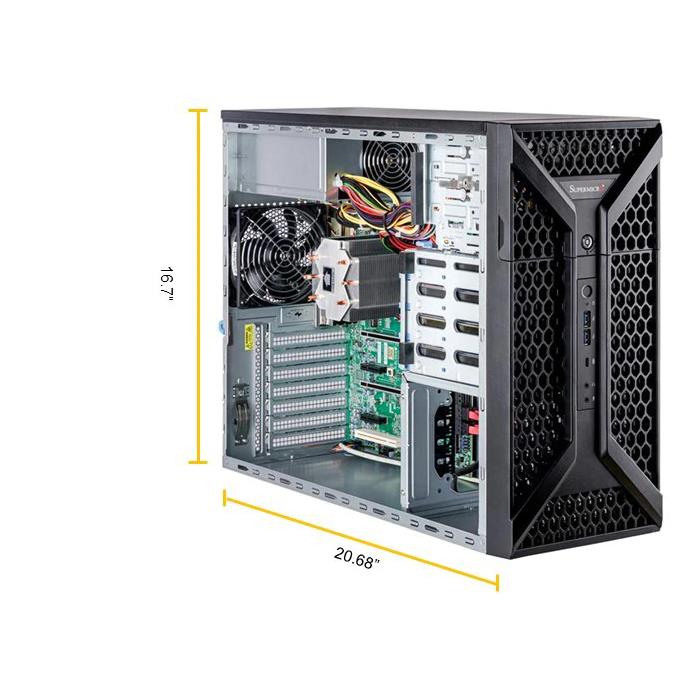

| Dimensions and Weight |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 21.1" (536mm) |
| Package | 11.97" (H) x 21.38" (W) x 25.28" (D) |
| Weight | Gross Weight: 30 lbs (13.61 kg) |
| Net Weight: 28 lbs (12.7 kg) |
| Available Color | Black |

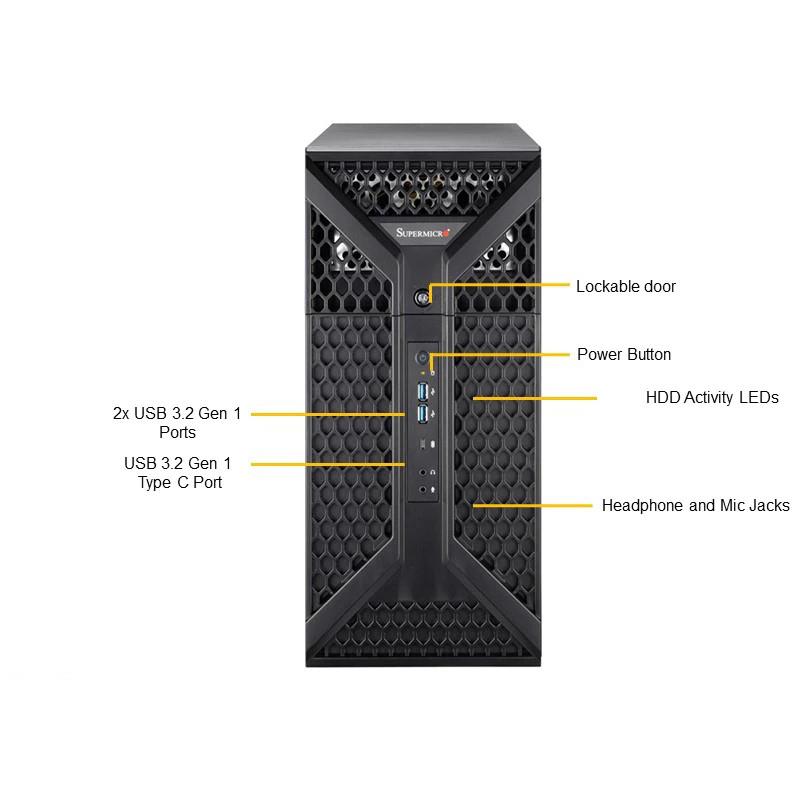

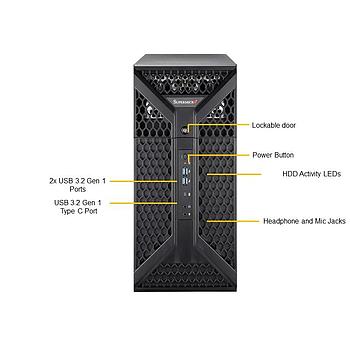

| Front Panel |
| Buttons | Power On/Off |
| LEDs | HDD activity |
| Power On |
| Port | Headphone Jack |
| Microphone Jack |

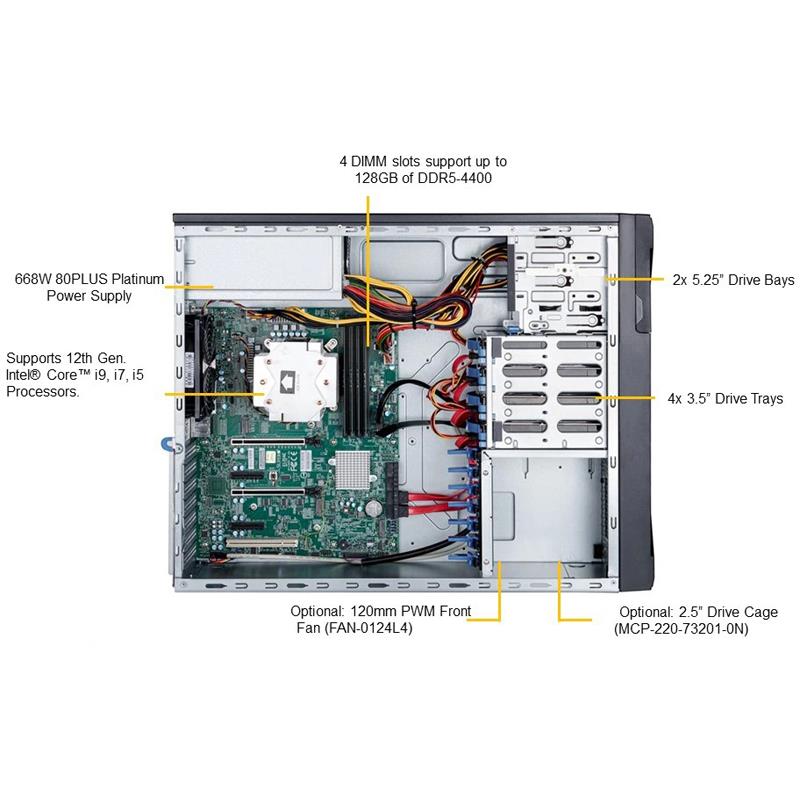

| Drive Bays / Storage |
| Drive Bays | 4x 3.5" SATA drive bays |
| M.2 | 3x PCIe 4.0 x4 (2280 only) |
| Peripheral Bays | 2x 5.25" drive bays |
| System Cooling |
| Fans | 1x 120mm Fan(s) |
| 1x 120mm Fan(s) (optional) |
| Power Supply |
| Dimension (W x H x L) | 150 x 86 x 190 mm |
| AC Input | 100-240Vac / 50-60Hz |
| +12V | Max: 54A (100Vdc-240Vdc) |
| Output Type | PS/2 |
| Certification | Platinum Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SYS-531A-IL |

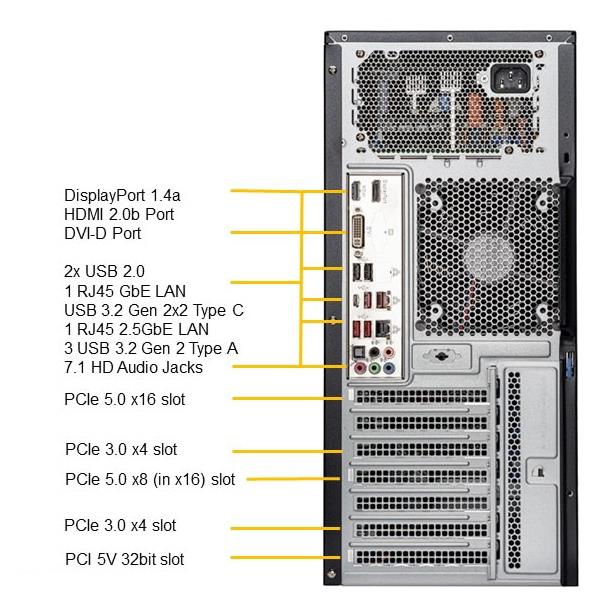

| Expansion Slots |
| PCI-Express (PCIe) | 1 5V PCI 32bit slot(s) |
| 2 PCIe 3.0 x4 slot(s) |
| 2 PCIe 5.0 x16 slot(s) |
