| Main Specifications |

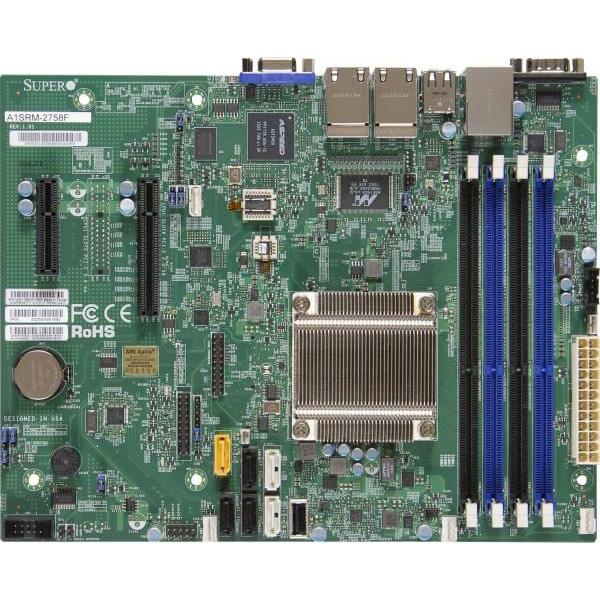

| Built-In | Intel Atom Processor C2758, CPU TDP 20W (8-Core) - FCBGA 1283 |
| Dimensions (WxDxH) | 9.6" x 7.5" (24.4cm x 19.05cm) |
| Form Factor | uATX |
| Product Type | Atom Boards |
| On-Board Devices |
| Chipset | System-on-Chip |
| System Memory |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Capacity | 4x 240-pin DDR3 UDIMM socket, Supports up to 32GB DDR3 ECC or non-ECC memory |
| Memory Type | 1600/1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only |
| Memory Voltage | 1.5 V, 1.35 V |
| On-Board Devices |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| | Aspeed AST 2400 BMC |
| Network Controllers | C2000 SoC I354 Quad GbE Controller (MACs) |
| | Virtual Machine Device Queues reduce I/O overhead |
| | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| SATA | SoC SATA3 (6Gbps), SATA2 (3Gbps) |
| USB | C2000 SoC |
| Video | BMC integrated Aspeed AST2400 |
| Input / Output |
| DOM | 1x SATA DOM (Disk on Module) power connector |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port |
| Others | TPM 1.2 header |
| SATA | 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports |
| Serial Port / Headers | 2x Fast UART 16550 Serial Port (1 rear, 1 via header) |
| USB | 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) |
| VGA | 1x VGA Port |
| Chassis Optimized for |
| 1U Chassis | SC510, SC512, SC813M/TQ |
| 2U Chassis | SC823M/TQ |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x PCI-E 2.0 x8 slot, 1x PCI-E 2.0 x4 slot |
| System BIOS |
| BIOS Features | Plug and Play (PnP), DMI 2.3, ACPI 5.0, USB Keyboard support, SMBIOS 2.7.1, UEFI |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS |
| Operating Environment |
| Operating Temperature | 0°C to 60°C |
| Parts List |
| I/O Cables | CBL-0044L |
| I/O Shield | MCP-260-00042-0N |
