- Supermicro CSE-116AC10-R860CB-N10 1U Rackmount 800W/860W Power Supply

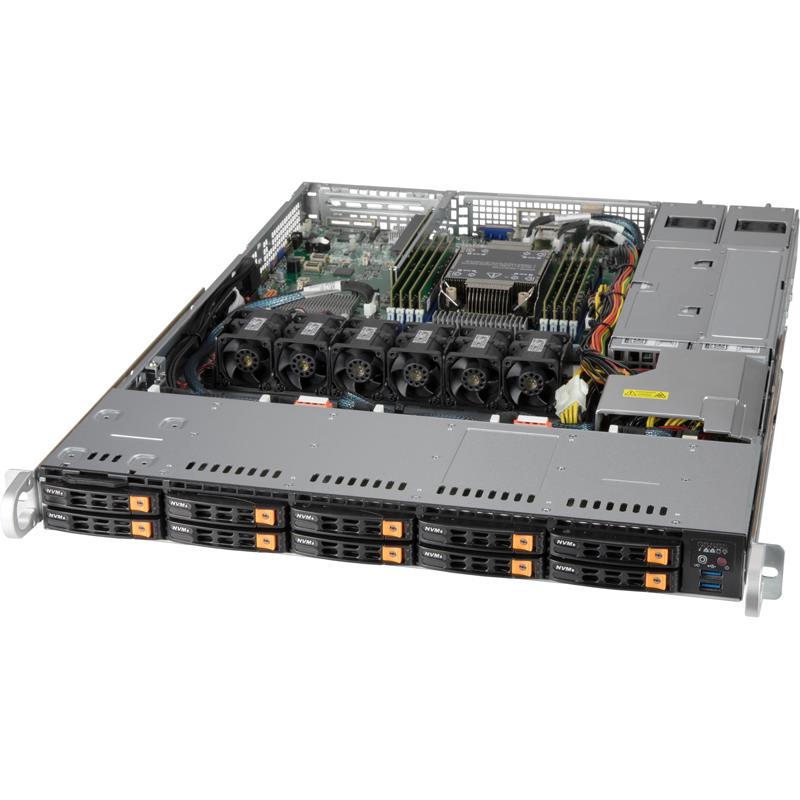

Supermicro CSE-116AC10-R860CB-N10 1U Rackmount 800W/860W Power Supply
Equipped with high-efficiency power supply
Supports maximum motherboard sizes of 12" x 13"
High-performance fans provide ample optimized cooling
Ten hard drive bays for 2.5" hot-swappable NVMe/SAS drives
1U Rackmount 800W/860W Redundant Platinum Power Supply, Optimized for motherboards sizes 12" x 13", support single and dual Intel / AMD processors, Includes: 10x NVMe/SAS drive bay hybrid, 1x Full-Height, Full-length Expansion Slot, (CSE-116AC10-R860CB-N10)
Supermicro's SC116 1U chassis is optimized for high-end, high-performance applications. It is an efficient 1U rackmount design optimized for best price/performance. It includes ten hot-swappable 2.5" SAS/SATA hard drive bays protected with the SES-II safety feature, with optimized cooling for all configurations. Bulk package and quick release slide rails are also available for HPC and data center use
Key Features
23.5" Depth 1U Rackmount Chassis - supports for maximum motherboard sizes of 12" x 13"
10 x 2.5” NVMe/SAS hybrid drive bay - SAS or enterprise SATA HDD only recommended
1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
800W/860W 1U redundant power supply
1 full-height & full-length expansion slot(s)
4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling
Extra Specifications for Supermicro CSE-116AC10-R860CB-N10 1U Rackmount 800W/860W Power Supply
| Main Specifications | ||
| Device Type | SuperChassis 116AC10-R860CB-N10 | |
| Form Factor | 23.5" Depth 1U Rackmount Chassis - support for maximum motherboard sizes of 12" x 13" | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) | |
| Weight | 36 lbs (16.33 kg) | |
| Enclosure Color | Black | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x Full-height, Full-length expansion slot | |
| Expansion Bays Total (Free) | 10x 2.5" NVMe/SAS drive bay hybrid - SAS or enterprise SATA HDD only recommended | |
| Backplane | ||
| SAS/SATA HDD Backplane | 10-Port 1U SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | Power Status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED | |
| I/O Ports | 2x USB 2.0 Port | |
| System Cooling | ||
| Fans/Air Shroud | 4x 40x56mm counter-rotation PWM fan(s), Optional 2x fans for AOC cooling | |
| Power Supply | ||
| Power Supply | 800W/860W 1U redundant power supply | |
| Certification | 80PLUS Platinum Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, UL/CB, UL/CUL | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Humidity Range Operating: 5 - 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-19002-0N | |
| Hard Drive Backplane | 1x BPN-SAS3-LB16A-N10 | |
| Cable(s) | 1x CBL-0335L, 2x CBL-PWCD-0160-IS | |
| Parts | 1x MCP-120-00031-0N, 1x MCP-120-00116-0N, 1x MCP-230-00021-0N, 1x MCP-270-00023-0N, 1x MCP-290-81501-0V, 1x MCP-260-00078-0N, 1x MCP-250-00009-0N | |
| Fan(s) | 4x FAN-0141L4 | |
| Front Panel Control | 1x FPB-FP116-DU3 | |
| Drive Trays | 10x MCP-220-00167-0B | |
| Mounting Rails | 1 set MCP-290-00063-0N | |
| Rear Window | 1x MCP-240-00086-0N | |
| Power Distributor(s) | 1x PDB-PT112-2424 | |
| Power Supply Number | 2x PWS-860P-1R2 | |
