- Supermicro MBI-6119M-C2 MicroBlade Barebone Single Processor

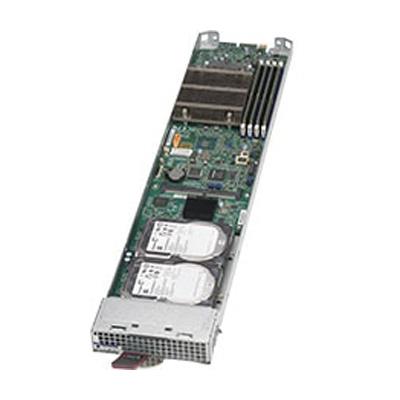

Supermicro MBI-6119M-C2 MicroBlade Barebone Single Processor
• 196 UP nodes per 42U Rack

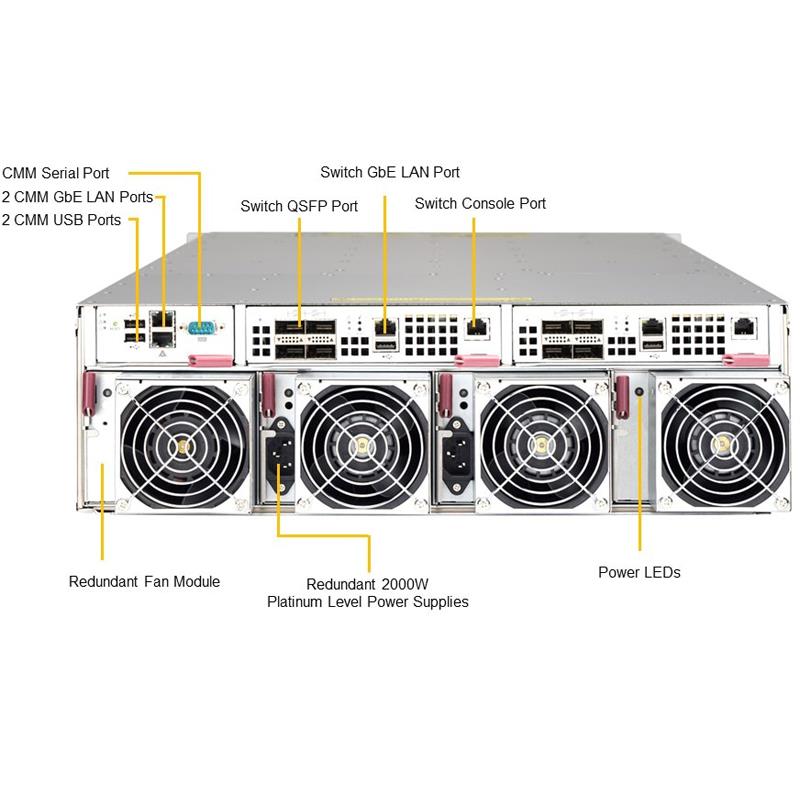

• 28/14 UP nodes in 6U/3U
MicroBlade microServer Single Socket H4 (LGA 1151) Supports Intel Xeon E-2100/E-2200 processor, up to 128GB DDR4-2666MHz UDIMM in 4 DIMM slots, onboard C246 chipset, SAS3 (12Gbps) via Avago 3008, Includes: 2x 2.5in SAS3 (12Gbps) HDD Internal Drive Bays, M.2 Form Factor: 2280/22110, 1x SATA DOM, Dual 1GbE LAN ports via Intel i350, IPMI - BLADE ONLY
1. Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
2. Up to 128GB ECC VLP UDIMM DDR4-2666MHz in 4 DIMM slots
3. Up to 2x 2.5" SAS3 (12Gbps) drives M.2 Interface: 1 PCI-E 3.0 x4 / SATA3 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
5. Avago 3008 SAS3 controller
6. Aspeed AST2500
Extra Specifications for Supermicro MBI-6119M-C2 MicroBlade Barebone Single Processor
| Motherboard | ||
| Motherboard | ||
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series | ||
| Cores | Up to 8 cores, 12 threads | |
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC VLP UDIMM | ||
| Memory Type | 2666MHz ECC DDR4 UDIMM | |
| DIMM Sizes | 32GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C246 chipset | |
| SAS | SAS3 (12Gbps) via Avago 3008 | |
| Network Controllers | Dual 1GbE LAN ports | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| System BIOS | ||
| BIOS Type | 128Mb Flash EEPROM | |
| BIOS Features | SMBIOS 2.7.1 | |
| Plug and Play (PnP) | ||
| APM 1.2 | ||
| Dimensions | ||
| Height | 1.2" (30.48mm) | |
| Width | 4.94" (125.48mm) | |
| Depth | 23.2" (589.28mm) | |
| Weight | Gross Weight: 4.3 lbs (1.95 kg) | |
| Available Colors | Silver Grey | |
| Front Panel | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays | ||
| Internal | 2x 2.5" SAS3 (12Gbps) drives | |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 | |
| M.2 Form Factor: 2280/22110 | ||
| M.2 Key: M-Key | ||
| Others | 1x SATA DOM | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Electromagnetic Compatibility (EMC) | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Europe | EN55022 - Emissions | |
| EN55024 - Immunity | ||
| EN61000-3-2 - Harmonics | ||
| EN61000-3-3 - Voltage Flicker | ||
| CE - EMC Directive 89/336/EEC | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-B2SC1-CPU-P | 1 | MicroBlade Board | |
| MicroBlade Sled | MCP-680-31408-0N | 1 | M628 MicroBlade Modularized Skylake UP | |
| Micro Blade Module Chassis | MCP-620-31409-0NMCP-620-31411-0NMCP-620-31412-0NMCP-640-31409-0N | 1111 | M628 Sled Node Cover with asset tagM628 Modularized Skylake UP 2x 2.5" HDD bracketM628 Sled Front Window with asset tag opening - VerticalM628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base | |
| Air Shroud | MCP-310-31407-0N | 1 | M628 MicroBlade Modularized Skylake UP Air Shroud | |
| Add-on Card | AOM-BPNIO-MSC-P | 1 | AOM-BPNIO-MSC, I/O module for uBlade, RoHS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 52.00 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 52.00 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SATA DOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P1040V | 0 | Low Profile Proprietary Passive CPU Heat Sink for B2SC1 Associated Micro Blade Servers | |||
| SATA DOM | MEM-IDSAHT1-032G | 1 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-064G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-128G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-256G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-016G | 0 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
