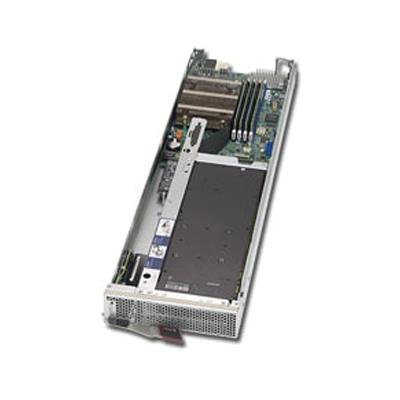

Supermicro SBI-4119MG-X GPU Blade Barebone Single Intel Xeon E-2100 / E-2200 Processors

Supermicro SBI-4119MG-X GPU Blade Barebone Single Intel Xeon E-2100 / E-2200 Processors

Processor Support: Single Intel Xeon E-2100/E-2200
Networking & Management: Dual 10G LAN, 1x IPMI via CMM
Memory Capacity: Up to 128GB UDIMM across 4 DIMM slots
Storage Options: 1x NVMe/SATA3 M.2, 1x SATA DOM, 2x SATA3 ports

GPU Blade Supports Single Socket H4 (LGA 1151), Supporting Intel Xeon E-2100 / E-2200 Series Processors, CPU TDP Support up to 95W. Intel C246 chipset, Up to 128GB in 4 DIMM slots, UDIMM, 2 SATA3 (6Gbps) port, 1x NVMe/SATA3 M.2, 1x SATA DOM, Dual port 10G, 1x IPMI via Chassis Management Module (CMM) - (SBI-4119MG-X + B11SCG-CTF)

1. 100 CPUs per 42U Rack
2. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
3. Intel® C246 chipset
4. 1 NVMe/SATA M.2, 1 SATA DOM, 1 PCI-E 3.0 x16 (Double width GPU) or 2 PCI-E 3.0 x8 (Single width GPU)
5. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
6. Dual port 10G onboard
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2500 BMC

Extra Specifications for Supermicro SBI-4119MG-X GPU Blade Barebone Single Intel Xeon E-2100 / E-2200 Processors

Motherboard
Motherboard	Super
Processor
CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95W
	Intel® Xeon® processor E-2100 / E-2200 series
System Memory
Memory Capacity	4 DIMM slots
	Up to DDR4-2666MHz
	Up to 128GB ECC UDIMM
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset	Intel® C246 chipset
Network Controllers	2x 10GBase-T via Intel® X710
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics	Aspeed AST2500 BMC
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	USB Keyboard support
	Plug and Play (PnP)
	PCI 2.2
	ACPI up to 3.0
Dimensions
Height	6.5"
Width	1.75"
Depth	23.5"
Weight	9.5 lbs (4.3 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button
	KVM button
LEDs	Power LED
	UID / KVM LED
	Network Activity LED
	Fault LED
Connector	SUV (Serial/USB/Video) & KVM Connector
Expansion / Storage
PCI-E	1 PCI-E 3.0 x16 (Double width GPU) or 2 PCI-E 3.0 x8 (Single width GPU)
M.2	1 NVMe/SATA3 M.2
SATA DOM	1 SATA DOM
Input / Output
TPM	1 TPM Header
KVM	1 Front Connector for SMCI KVM Card
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Product SKUs
Product SKUs

Name	Part Number	Price	Add to Cart	Qty.	Description
	Heat Sink	SNK-P1041V	$ 60.50		0	1U Proprietary Passive CPU Heat Sink for 6U 10-blade Microblade Series Servers
	TPM security module(optional, not included)	AOM-TPM-9670V	$ 56.50		1	TPM module (Vertical) TPM 2.0
	TPM security module(optional, not included)	AOM-TPM-9671V	$ 56.50		0	TPM module (Vertical) TPM 1.2.
SuperDOM	-			0	Supermicro SATA DOM Solutions [Details]
Software	SFT-OOB-LIC •			1	OOB Management Package (per node license)
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
