  3. Supermicro SBI-6419P-T3N UP Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation

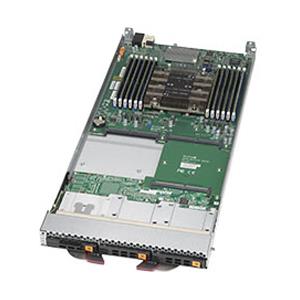

Supermicro SBI-6419P-T3N UP Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation

Supermicro SBI-6419P-T3N UP Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation

  • Up to 384GB RDIMM across 12 DIMM slots

  • 3x 2.5" hot-plug NVMe or SATA3 bays with RAID 0/1/5

  • Supports Intel Xeon Scalable (1st & 2nd Gen) CPUs, up to 28 cores

  • Dual 10G Ethernet ports and IPMI via Chassis Management Module

SuperBlade, Supports Single Socket P (LGA 3647), Supporting Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors, Support CPU TDP up to 205W (Up to 28 Core). Intel C622 chipset, Up to 384GB in 12 DIMM slots, RDIMM, SATA3 RAID 0/1/05, 3x 2.5in NVMe or 3x 2.5in SATA3 drive bays (Hot-Plug), Dual port 10G, 1x IPMI via Chassis Management Module (CMM) - (SBI-6419P-T3N + B11SPE-CPU-TF)

$ 805.00$ 805.00805.0USD

$ 805.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

    1. 98 UP nodes per 42U Rack
    2. Single socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    3. Intel® C622 chipset
    4. 12 DIMMs; up to 384GB VLP ECC DDR4-2933MHz RDIMM
    5. 3 Hot-plug 2.5" NVMe or 3 SATA3 2.5" drive bays
    6. Intel® C622; RAID 0, 1, 5
    7. Dual 10G onboard
    8. IPMI 2.0, KVM over IP, Virtual Media over LAN
    9. Graphics: Aspeed AST2500 BMC

    Extra Specifications for Supermicro SBI-6419P-T3N UP Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation

    Motherboard
    MotherboardSuper
    Processor/Cache
    CPUSingle Socket P (LGA 3647)
    2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡
    Support CPU TDP up to 205W
    CoresUp to 28 Cores
    Note‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity12 DIMM slots
    Up to 384GB VLP ECC DDR4-2933MHz RDIMM
    Memory Type2933/2666/2400MHz ECC DDR4
    VLP RDIMM
    On-Board Devices
    ChipsetIntel® C622 chipset
    SATASATA3 (6Gbps) via Intel C622 RAID 0, 1, 5
    Network ControllersDual 10G LAN with Intel® X722
    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    GraphicsAspeed AST2500 BMC
    System BIOS
    BIOS Type128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS FeaturesUSB Keyboard support
    Plug and Play (PnP)
    PCI 2.2
    ACPI up to 3.0
    Dimensions
    Height9.75"
    Width1.2"
    Depth23.5"
    Weight10.5 lbs (4.8 kg)
    Available ColorsMetallic Silver w/ Black Hard Drive Bays
    Front Panel
    ButtonsPower On/Off button
    KVM button
    LEDsPower LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    ConnectorSUV (Serial/USB/Video) & KVM Connector
    Drive Bays
    Hot-swap3 Hot-Plug 2.5" NVMe or 3 Hot-plug 2.5" SATA3 drive bays
    Input / Output
    TPM1 TPM Header
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Product SKUs
    Product SKUs
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-B11SPE-CPU-TF1Super B11SPE-CPU-TF Motherboard
    Motherboard / ChassisMCP-680-61401-0N16U 14 SuperBlade Processor Blade chassis
    Add-on Card / ModuleAOM-BPNIO-SNE-P1AOM-BPNIO-SC, I/O module for uBlade,RoHS
    Hard Drive TrayMCP-220-00145-0B2Black 2.5" NVMe Hard Drive Tray, orange button
    Air ShroudMCP-310-61402-0B16U 14 SuperBlade B11SPE Processor Tray Air Shroud, Wide
    Air ShroudMCP-310-61403-0B16U 14 SuperBlade B11SPE Processor Tray Air Shroud, Narrow
    NamePart NumberPriceAdd to CartQty.Description
    TPM security module(optional, not included)AOM-TPM-9670V$ 56.501TPM module (Vertical) TPM 2.0
    TPM security module(optional, not included)AOM-TPM-9671V$ 56.500TPM module (Vertical) TPM 1.2.
    SuperDOM-0Supermicro SATA DOM Solutions [Details]
    Heatsink / RetentionSNK-P1037PS$ 53.501Low Profile Proprietary Passive CPU Heat Sink for B11 6U 14 Blade Series SuperServers
    AOCAOC-VROCPREMOD$ 344.500Intel VROC Premium, RAID 0, 1, 5, 10
    AOCAOC-VROCSTNMOD$ 176.000Intel VROC HW key (RSTe) standard upgrade module
    AOCAOC-VROCINTMOD0Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Battery Backup KitBTR-TFM8G-LSICVM02$ 275.001Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit)
    Battery Backup KitMCP-240-00127-0N$ 20.001Broadcom Supercap bracket include screw, same size as 2.5" HDD
    SoftwareSFT-OOB-LIC •1OOB Management Package (per node license)
    SoftwareSFT-DCMS-Single1DataCenter Management Package (per node license)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
