  2. Supermicro SBI-6119PW-C3N Blade Barebone Single Intel Xeon W-32xx Processors

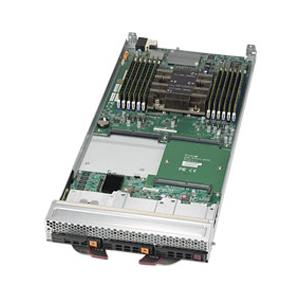

Supermicro SBI-6119PW-C3N Blade Barebone Single Intel Xeon W-32xx Processors

Supermicro SBI-6119PW-C3N Blade Barebone Single Intel Xeon W-32xx Processors

  • Processor Support: Single Intel Xeon W-32xx processor

  • Memory Capacity: Up to 3TB LR/RDIMM in 12 DIMM slots

  • Networking & Management: Dual 10G LAN, 1x IPMI via CMM

  • Storage: Up to 3x NVMe + 1x SAS3/SATA3, HW RAID via Broadcom 3108

SuperBlade, Supports Single Socket P (LGA 3647), Supporting Intel Xeon W-32xx Processors, Support CPU TDP up to 205W. Intel C622 chipset, Up to 3TB in 12 DIMM slots, LR/RDIMM, Broadcom 3108 SAS3 (12Gbps) controller, HW RAID 0/1/5, 3x 2.5in NVMe + 1x 2.5in SAS3/SATA3 drive bays (Hot-Plug) or 3 SAS3/SATA3, Dual 10G LAN, 1x IPMI via Chassis Management Module (CMM) - SBI-6119PW-C3N + B11SPE-CPU-TF)

$ 1,047.00$ 1,047.001047.0USD

$ 1,047.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

    1. 70 CPUs per 42U Rack
    2. Single socket P (LGA 3647) supports Intel® Xeon® W-32xx processors
    3. Intel® C622 chipset
    4. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
    5. 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
    6. Broadcom 3108 HW RAID
    7. Dual 10G onboard
    8. IPMI 2.0, KVM over IP, Virtual Media over LAN
    9. Graphics: Aspeed AST2500 BMC

    Extra Specifications for Supermicro SBI-6119PW-C3N Blade Barebone Single Intel Xeon W-32xx Processors

    Motherboard
    MotherboardSuper
    Processor/Cache
    CPUSingle Socket P (LGA 3647)
    Support CPU TDP up to 205W
    Intel® Xeon® W-32xx processors
    System Memory
    Memory Capacity12 DIMM slots
    Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
    Memory Type2933 † /2666/2400MHz ECC DDR4 RDIMM/LRDIMM
    Note† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    On-Board Devices
    ChipsetIntel® C622 chipset
    SASBroadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5 support; 2GB Cache
    Network ControllersDual 10G LAN with Intel® X722
    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    GraphicsAspeed AST2500 BMC
    System BIOS
    BIOS Type128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS FeaturesUSB Keyboard support
    Plug and Play (PnP)
    PCI 2.2
    ACPI up to 3.0
    Dimensions
    Height9.75"
    Width1.75"
    Depth23.5"
    Weight10.5 lbs (4.76 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    Drive Bays
    Hot-swap2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 or 3 SAS3/SATA3
    Input / Output
    TPM1 TPM Header
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Product SKUs
    Product SKUs
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-B11SPE-CPU-TF1Super B11SPE-CPU-TF Motherboard
    Motherboard / ChassisMCP-680-61002-0N16U 10 SuperBlade UP Blade chassis
    Add-on Card / ModuleAOM-BPNIO-SCE-P1AOM-BPNIO-SC, I/O module for uBlade,RoHS
    Add-on Card / ModuleAOM-BPNIO-BRGE-P1Bridge Board
    Add-on Card / ModuleAOM-BPNIO-SCE-P1I/O module for 6U Super Blade,RoHS , support up to 2 NVMe or 3 SAS
    Hard Drive TrayMCP-220-00170-0B2Black hot swap tool-less NVMe 2.5" HDD tray with orange button for SuperBlade use
    Hard Drive TrayMCP-220-00169-0B1Black hot swap tool-less 2.5" HDD tray for SuperBlade use
    Air ShroudMCP-310-61002-0B16U 10 SuperBlade B11SPE Processor Tray Air Shroud, Wide
    Air ShroudMCP-310-61003-0B16U 10 SuperBlade B11SPE Processor Tray Air Shroud, Narrow
    NamePart NumberPriceAdd to CartQty.Description
    TPM security module(optional, not included)AOM-TPM-9670V$ 56.501TPM module (Vertical) TPM 2.0
    TPM security module(optional, not included)AOM-TPM-9671V$ 56.500TPM module (Vertical) TPM 1.2.
    SuperDOM-0Supermicro SATA DOM Solutions [Details]
    Heatsink / RetentionSNK-P0067PSW$ 79.0011U Proprietary 105-mm Wide Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    AOCAOC-VROCPREMOD$ 344.500Intel VROC Premium, RAID 0, 1, 5, 10
    AOCAOC-VROCSTNMOD$ 176.000Intel VROC HW key (RSTe) standard upgrade module
    AOCAOC-VROCINTMOD0Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    SoftwareSFT-OOB-LIC •1OOB Management Package (per node license)
    SoftwareSFT-DCMS-Single1DataCenter Management Package (per node license)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
