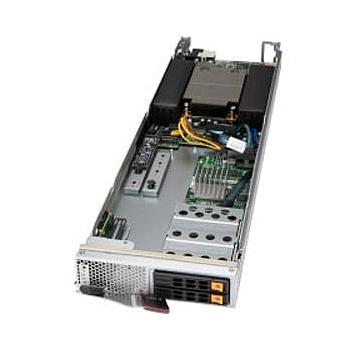

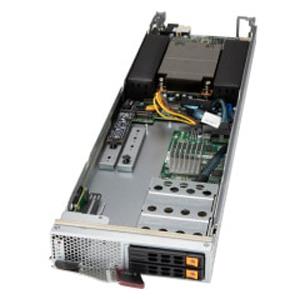

Supermicro SBA-4119S-C2N Blade Barebone Single AMD EPYC 7003/7002 Processors

Supermicro SBA-4119S-C2N Blade Barebone Single AMD EPYC 7003/7002 Processors

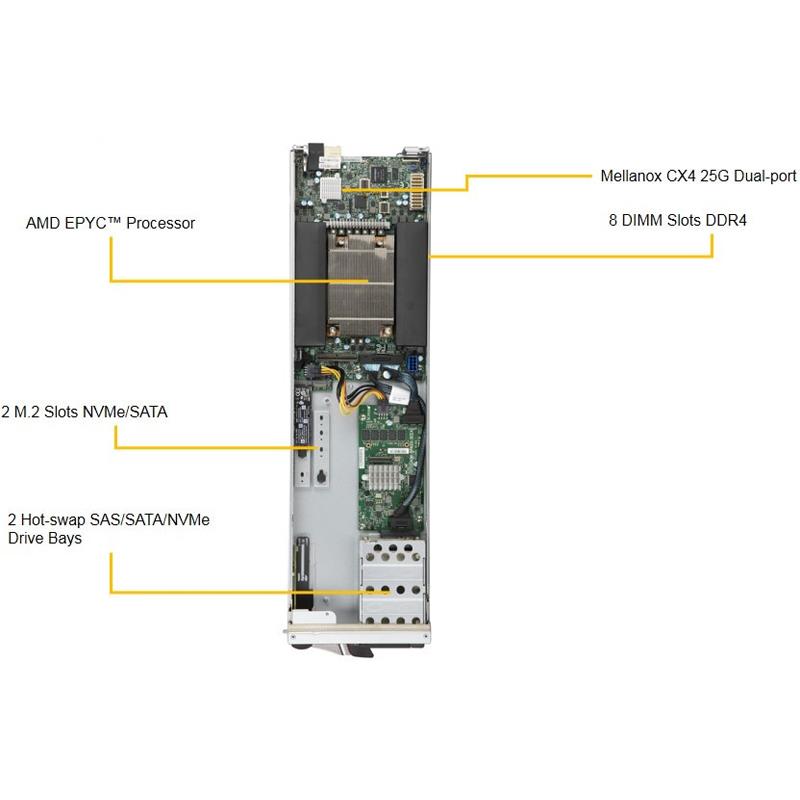

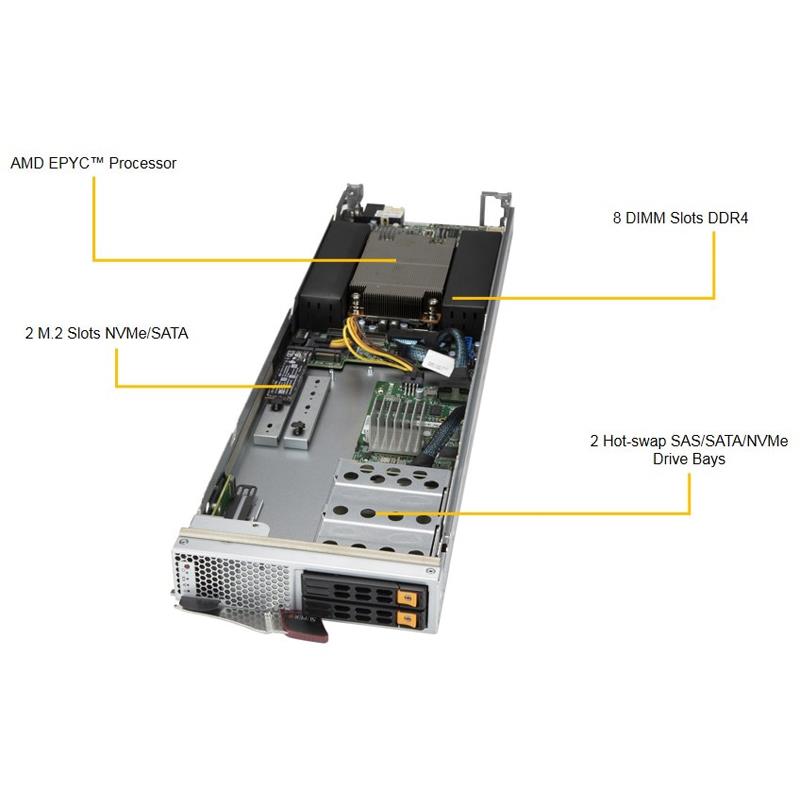

  • Memory Capacity: Up to 2TB DDR4 ECC R/LRDIMM in 8 DIMM slots

  • Processor Support: Single AMD EPYC 7003/7002 CPU (up to 64 cores)

  • Networking & Management: Dual 25GbE via Mellanox CX4, 1x IPMI via CMM

  • Storage Options: 2x Hot-swap 2.5" NVMe/SAS3/SATA3, Broadcom 3108 SAS3

SuperBlade Supports Single Socket SP3, Supporting Single AMD EPYC 7003/7002 Series Processor, Support CPU TDP up to 280W (Up to 64 Core), (7003 Series Processor drop-in support requires BIOS version 2.0 or newer), System on Chip, Up to 2TB in 8 DIMM slots, R/LRDIMM, SAS3 via Broadcom 3108, 2x 2.5in NVMe/SAS3/SATA3 drive bays (Hot-Plug), 2x PCI-E x4 M.2, Dual 25G LAN via Mellanox CX4, 1x IPMI via Chassis Management Module (CMM) - (SBA-4119S-C2N + Super BH12SSi-M25)

$ 1,173.00$ 1,173.001173.0USD

$ 1,173.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

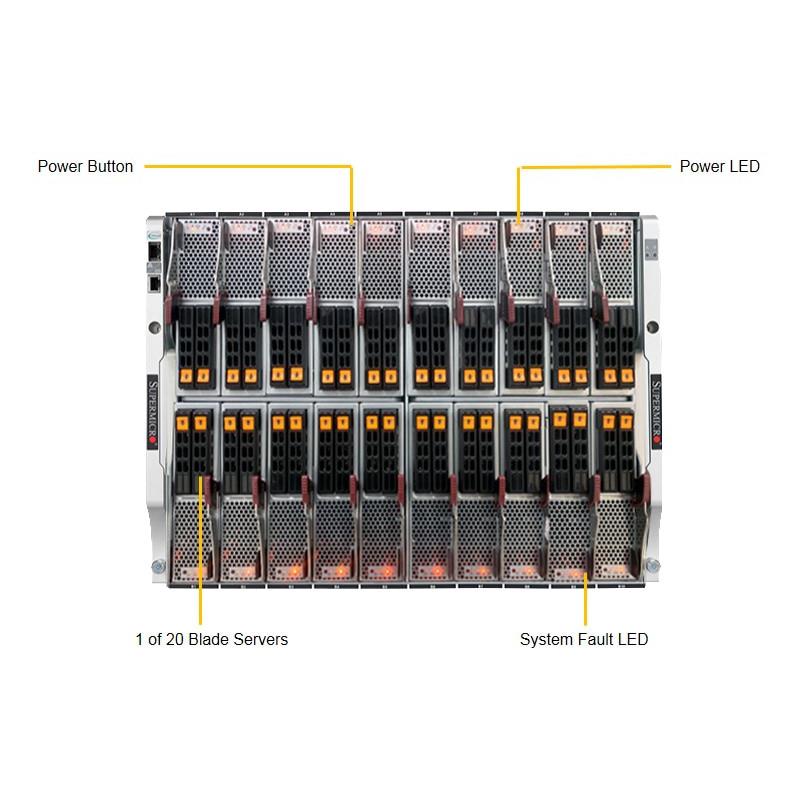

    1. 100 CPUs per 42U Rack
    2. Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    3. TDP up to 280W
    4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM
    5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 2 PCI-E x4 M.2
    6. Dual 25G onboard
    7. IPMI 2.0, KVM over IP, Virtual Media over LAN
    8. Graphics: Aspeed AST2500 BMC

    Extra Specifications for Supermicro SBA-4119S-C2N Blade Barebone Single AMD EPYC 7003/7002 Processors

    Motherboard
    MotherboardSuper BH12SSi-M25
    Processor/Cache
    CPUSingle AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    Socket SP3
    Support CPU TDP up to 280W
    CoresUp to 64 Cores
    System Memory
    Memory Capacity8 DIMM slots
    Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory TypeDDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    ChipsetSystem on Chip
    SASProvided via SAS3 (Broadcom 3108) backplane
    Network ControllersDual 25G onboard via Mellanox CX4

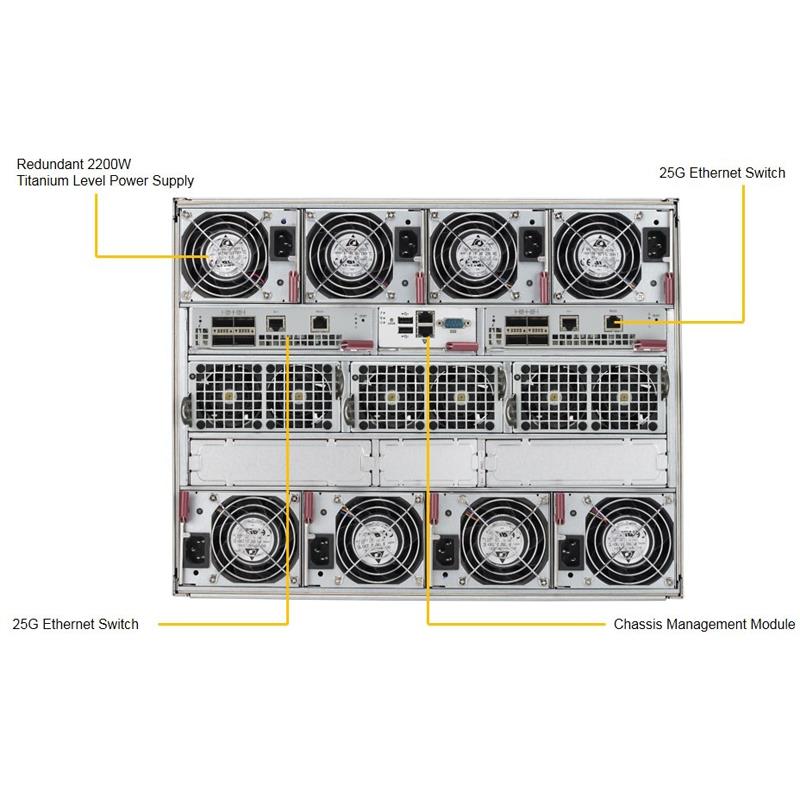

    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    GraphicsAspeed AST2500 BMC
    System BIOS
    BIOS Type128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS FeaturesUSB Keyboard support
    Plug and Play (PnP)
    PCI 2.2
    ACPI up to 3.0
    Dimensions
    Height6.5"
    Width1.75"
    Depth23.5"
    Weight9.5 lbs (4.3 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    Drive Bays
    Hot-swap2 Hot-Plug 2.5" NVMe/SAS3/SATA3 drive bays
    M.22 PCI-E x4 M.2
    Input / Output
    TPM1 TPM Header
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Product SKUs
    Product SKUs
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-BH12SSi-M251Super BH12SSi-M25 Motherboard
    Motherboard / ChassisMCP-680-41006-0N14U 10 SuperBlade Processor Blade chassis
    Add-on Card / ModuleAOM-BPNIO-SCEA-P1AOM card for 4U SuperBlade, 2xSAS/NVMe, RoHS
    Add-on Card / ModuleAOM-BPNIO-FPE-P1AOM-BPNIO-FPE, Front Control I/O module for SuperBlade,RoHS
    Hard Drive TrayMCP-220-00170-0B2Black hot swap tool-less NVMe 2.5" HDD tray with orange button for SuperBlade use
    Air ShroudMCP-310-41006-0N14U 10 SuperBlade AMD Tray Air Shroud - HDD
    SoftwareSFT-OOB-LIC •1OOB Management Package (per node license)
    NamePart NumberPriceAdd to CartQty.Description
    Heat SinkSNK-P1043V$ 59.0011U standard AMD vapor chamber Heat Sink
    TPM security module(optional, not included)AOM-TPM-9665V$ 43.001TPM module (Vertical) TPM 2.0
    TPM security module(optional, not included)AOM-TPM-9655V$ 43.000TPM module (Vertical) TPM 1.2.
    NetworkingAOC-IBH-X4ES-B$ 895.001Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4
    NetworkingAOC-B25G-X4D02-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN)
    NetworkingAOC-IBH-X6HS-B$ 1,549.000SuperBlade InfiniBand HDR one port Mezzanine card,Mellanox ConnectX-6,RoHS
    Battery Backup KitBTR-TFM8G-LSICVM02$ 275.001Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit)
    Battery Backup KitMCP-120-41003-0N$ 39.001BBU bracket for 8U SuperBlade AMD tray
    SoftwareSFT-DCMS-Single1DataCenter Management Package (per node license)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
