- Supermicro SBI-420P-1C2N Blade Barebone Dual Intel Xeon Scalable Processors 3rd Generation

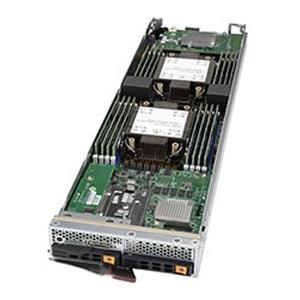

Supermicro SBI-420P-1C2N Blade Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Data center
• High-performance Computing (HPC)
Processor Blade Sled Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, 3 UPI up to 11.2 GT/s, TDP up to 220W. Intel C621A chipset, Up to 4TB in 16 DIMM slots, R/LRDIMM, Broadcom 3108 SAS3 (12Gbps) controller, HW RAID 0/1, SAS3 mezz card, 2x 2.5in NVMe/SAS3/SATA3 drive bays (Hot-Plug), 1x NVMe M.2, Dual 25G Ethernet, 1 Mezzanine expansion slot, Optional: Dual 25G Ethernet/100G EDR/200G HDR - (SBI-420P-1C2N + MBD-B12DPT-6)
1. 200 CPUs per 42U Rack
2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
3. Intel® C621A chipset
4. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe M.2
6. Dual 25G onboard Ethernet
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2600
9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
Extra Specifications for Supermicro SBI-420P-1C2N Blade Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Processor | ||
| CPU | Dual Socket P+ (LGA-4189) | |
| 3rd Gen Intel® Xeon® Scalable Processors, 3 UPI up to 11.2 GT/s | ||
| TDP up to 220W | ||
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Supports Intel® Optane™ Persistent Memory †† | ||
| Memory Type | 3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | †† Please contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621A chipset | |
| SAS | SAS3 mezz card | |
| Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1 support; 2G Cache | ||
| Network Controllers | Onboard Dual 25G Ethernet | |
| 1 Mezzanine expansion slot and 3 different optional Mezzanine card. | ||
| Optional: Dual 25G Ethernet / 100G EDR / 200G HDR | ||
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2600 | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 6.5" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 9.5 lbs (4.3 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 2 Hot-Plug 2.5" NVMe/SAS3/SATA3 drive bays | |
| M.2 | 1 NVMe M.2 | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| KVM | 1 Front Connector for SMCI KVM Card | |
| Cooling | ||
| Heatsink | Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P0077V | $ 74.50 | 0 | Heatsink for Front CPU | ||
| Heatsink / Retention | SNK-P1044V | $ 75.50 | 0 | Heatsink for Rear CPU | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 279.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-120-41001-0N | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | |||
| Networking | AOC-B25G-X4D-B | $ 200.00 | 0 | SuperBlade 2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN) | ||
| Networking | AOC-IBH-X4ES-B | $ 895.00 | 0 | Mezzanine Card for InfiniBand EDR Single Port with mounting bracket | ||
| Networking | AOC-IBH-X6HS-B | $ 1,549.00 | 0 | SuperBlade InfiniBand HDR one port Mezzanine card with mounting bracket | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Add-on Card / Module | AOM-B-4M | $ 70.50 | 1 | 4 x M.2 NVMe mezzanine card, 4x 110(80) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
