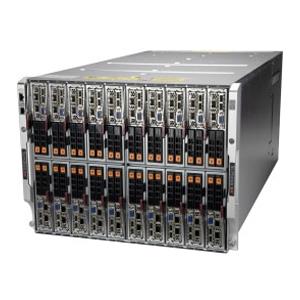

Supermicro SBS-820H-4114S 8U SuperBlade Barebone Single AMD EPYC 7003/7002 Processors

Supermicro SBS-820H-4114S 8U SuperBlade Barebone Single AMD EPYC 7003/7002 Processors

• Cloud Computing
• Scientific Research
• Virtualization
• High-performance Computing (HPC)

A+ SuperBlade Server System 8U High Blade Enclosure Per Node Supports: Single Socket SP3, Supporting Single AMD EPYC 7003/7002 Series Processor (Up to 64 Core) Support CPU TDP up to 280W, System on Chip, Up to 2TB in 8 DIMM slots, R/LRDIMM, SATA/SAS/NVMe Provided via Mezzanine card, 2x 2.5in NVMe/SATA3, 2x PCI-E x4 M.2 1x 200G Mellanox IB HDR, Dual 25G onboard via Mellanox CX4, IPMI v.2.0 via Chassis Management Module (CMM) - (SBS-820H-4114S - MBD-BH12SSi-M25)

1. 20 High performance UP blade servers in a 8U High blade enclosure
2. Blade AIOM Card support
3. PCI-E Gen4 ready for SSD and Network IO
4. InfiniBand 200G HDR support
5. Front Access Design - front-loading nodes, HDD/SSD hot-swap, management and network IO
6. Security enhancement from booting to management

Extra Specifications for Supermicro SBS-820H-4114S 8U SuperBlade Barebone Single AMD EPYC 7003/7002 Processors

Switch Module
SBM-IBS-H4020	8U SuperBlade HDR 200G InfiniBand Switch
	External: 20x 200G HDR IB uplink
	Internal: 1x 200G HDR IB to each node downlink
Details	See Details
Central Management Module (CMM)
MBM-CMM-FIO-V	CMM with Front IO support
Details	See Details
Processor (per node)
CPU	Single AMD EPYC™ 7003/7002 Series Processor
	Socket SP3
	Support CPU TDP up to 280W
Cores	Up to 64 Cores
System Memory (per node)
Memory Capacity	8 DIMM slots
	Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices (per node)
Network Controllers	1x 200G Mellanox IB HDR, Dual 25G onboard via Mellanox CX4
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics	Aspeed AST2500
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	USB Keyboard support
	Plug and Play (PnP)
	PCI 2.2
	ACPI up to 3.0
Dimensions
Height	14"
Width	17.6"
Depth	32"
Weight	340 lbs (154.2 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button
	KVM button
LEDs	Power LED
	UID / KVM LED
	Network Activity LED
	Fault LED
Connector	SUV (Serial/USB/Video) & KVM Connector
Drive Bays (per node)
Hot-swap	2 Hot-Plug 2.5" NVMe/SATA3 drive bays
M.2	2 PCI-E x4 M.2
Input / Output
TPM	1 TPM Header
KVM	1 Front Connector for SMCI KVM Card
Cooling
System Fan	3 optional fan trays with TDP up to 270W
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Product SKUs
Product SKUs

Name	Part Number	Price	Add to Cart	Qty.	Description
	TPM security module(optional, not included)	AOM-TPM-9670V	$ 52.00		1	TPM module (Vertical) TPM 2.0
	TPM security module(optional, not included)	AOM-TPM-9671V	$ 52.00		0	TPM module (Vertical) TPM 1.2.
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SBS-820H-4114S 8U SuperBlade Barebone Single AMD EPYC 7003/7002 Processors

$ 59,781.00$ 59,781.0059781.0USD

$ 59,781.00
