196 UP nodes per 42U Rack
28/14 UP nodes in 6U/3U

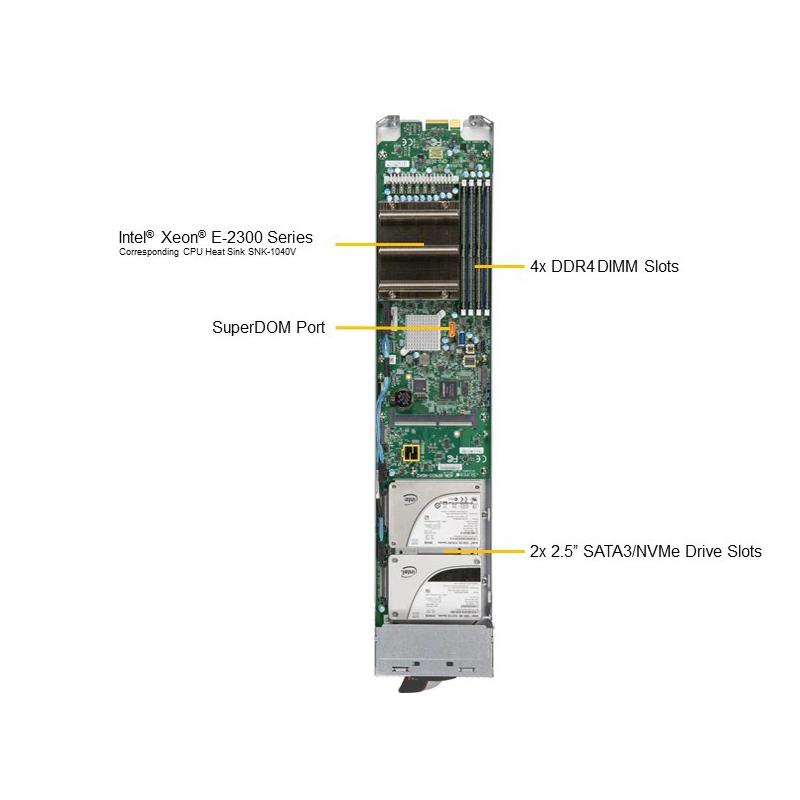

MicroBlade microServer Single Socket H5 (LGA 1200) Support Intel Xeon E-2300 processors, up to 128GB DDR4-3200MHz UDIMM in 4 DIMM slots, onboard C256 chipset, 2x SATA3 (6 Gbps) ports, with RAID 0,1,5,10 via Intel C256 controller, Includes: 2x 2.5in U.2 SATA/NVMe Internal Drive Bays, M.2 Form Factor: 2280/22110, 1x SATA DOM, Dual 10GbE LAN ports via BCM57414, IPMI - BLADE ONLY
1. Socket H5 (LGA 1200) supports Intel Xeon® processor E-2300
2. Up to 128GB ECC VLP UDIMM DDR4-3200MHz in 4 DIMM slots
3. Up to 2x 2.5" U.2 SATA/NVMe drives M.2 Interface: 1 SATA3/NVMe (PCIe 3.0 from PCH) and 1 NVMe (PCIe 4.0) M.2 Form Factor: 2280/22110 M.2 Key: M-Key
4. Dual 10GbE LAN ports via BCM57414 Dedicated LAN supports IPMI 2.0
5. Aspeed AST2500
| Main Specifications | ||
| Device Type | MicroBlade | |
| Built-in Devices | MBD-B3ST1-CPU-001 | |
| Processor | ||
| Compatible Processors | Support Intel Xeon processor E-2300 series | |
| Compatible Socket | Single Socket H5 (LGA 1200), CPU TDP support up to 95W | |
| Cache/Core | Up to 8 cores, 16 threads | |
| System Memory | ||
| Memory Capacity | 4 DDR4 DIMM sockets, Supports up to 128GB DDR4 ECC VLP UDIMM | |
| Memory Type | 3200MHz ECC DDR4 UDIMM | |
| DIMM Sizes | 32GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | Intel C256 chipset | |
| Network Controllers | Dual 10GbE LAN ports | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | 128Mb Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 | |
| Front Panel | ||
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED | |
| Expansion / Connectivity | ||
| Expansion Bays Total (Free) | 1x SATA DOM | |
| 2x Up to 2x 2.5" U.2 SATA/NVMe drives | ||
| M.2 | M.2 Key: M-Key | |
| M.2 Form Factor: 2280/22110 | ||
| M.2 Interface: 1 SATA3/NVMe (PCIe 3.0 from PCH) and 1 NVMe (PCIe 4.0) | ||
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Electromagnetic Compatibility (EMC) | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC | |
| Parts List - (Items Included) | ||
| Motherboard / MicroBlade Sled | MBD-B3ST1-CPU-001 / MCP-680-31408-0N | |
| Micro Blade Module Chassis | 1x MCP-620-31409-0N, 1x MCP-620-31412-0N, 1x MCP-620-31416-0N, 1x MCP-640-31409-0N | |
| Add-On Card | 1x AOM-BPNIO-MSH2-P | |
| System Cooling | ||
| Air Shroud | 1x MCP-310-31407-0N | |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
