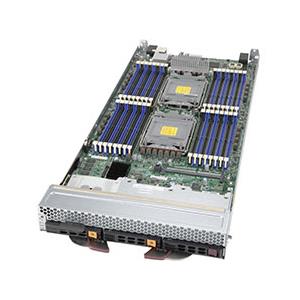

Supermicro SBI-620P-1C3N Blade Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Cloud Service
• Simulation & Modeling
• AI Inferencing
• High-performance Computing (HPC)
Processor Blade Sled Intel Xeon Scalable processors 3rd Generation, Intel C621A chipset, Up to 8TB in 32 DIMM slots, R/LRDIMM, Broadcom 3108 SAS3 (12Gbps) controller, 2x 2.5in NVMe drive bays, 1x SAS3/SATA3 drives or 3 SAS3/SATA3 (Hot-Plug), 2x 25GbE LAN via Mellanox ConnectX-4 Lx EN, Optional: 1x Mezzanine card - (SBI-620P-1C3N + MBD-B12DPE-6)
1. 140 CPUs per 42U Rack
2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
3. Intel® C621A chipset
4. 32 DIMMs; up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
5. 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
6. Dual 25G onboard Ethernet
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2600
9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
10. Broadcom 3108 HW RAID
Extra Specifications for Supermicro SBI-620P-1C3N Blade Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Processor | ||
| CPU | Dual Socket P+ (LGA-4189) | |
| 3rd Gen Intel® Xeon® Scalable Processors, 3 UPI up to 11.2 GT/s | ||
| TDP up to 270W | ||
| System Memory | ||
| Memory Capacity | 32 DIMM slots | |
| Supports Intel® Optane™ Persistent Memory †† | ||
| Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | 3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | †† Please contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621A chipset | |
| SAS | Broadcom 3108 | |
| Network Controllers | Dual 25G Ethernet | |
| 1 optional 25GbE Mezzanine card | ||
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2600 | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 9.75" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 15.2 lbs (6.89 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3 | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Cooling | ||
| Heatsink | Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P0077V | $ 74.50 | 0 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | ||
| Heatsink / Retention | SNK-P1044V | $ 75.50 | 0 | 1U Passive CPU Heat Sink for B12 ICX/CPX CPU | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-240-00127-0N | $ 20.00 | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | ||
| Networking | AOC-B25G-6X4D | $ 174.00 | 0 | Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN) | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
