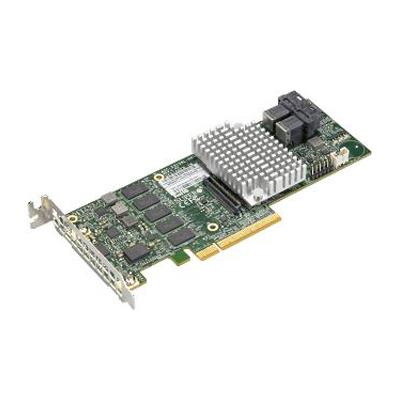

Supermicro AOC-S3108L-H8iR Internal RAID Adapter 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware With RAID - Broadcom 3108
8 Internal Ports SATA/SAS RAID Adapter Card - 12Gb/s per port, LSI SAS 3108 Controller, PCI-E 3.0 x8, Low-Profile, RAID 0, 1, 5, 6, 10, 50, 60 - 2GB DDR3 Onboard Cache (1866MHz)
Broadcom 3108 8-port PCI-E SAS-3 controller
8-port (8 internal) 12Gb/s per port
Supports RAID 0, 1, 5, 6, 10, 50, 60
On board hardware IO Processor
2GB 1866MHz DDR3 on-card cache
Advanced array configuration and management utilities
Automatically negotiates PCI-E link widths
Power management support
Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Optional Supercap/TFM Unit for cached data protection BTR-TFM8G-LSICVM02 (See "Optional Parts List" below for more details)
OS Support : Windows (2012, Server 2016 , Server 2019, 8 and 8.1), Linux RHEL, Ubuntu and SUSE
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 10° to 55°C
Extra Specifications for Supermicro AOC-S3108L-H8iR Internal RAID Adapter 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen4 PCIe x8 Hardware With RAID - Broadcom 3108
| Add-on Card | ||
| Add-on Card | The Supermicro MegaRAID Low Profile features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers storage solutions using SATA drives and with SAS drives. With the option of SuperCap/TFM unit, this provides and allows system builders to protect cached data even during the most catastrophic system failures. Use a Broadcom 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution. Using expander backplanes, the supports up to w/ RAID 0, 1, 5, 6, 10, 50 and 60. The supports up to w/ RAID 0, 1, 5, 6, 10, 50 and 60. This product is only available through Supermicro. X9 motherboards are EOLed and work with FW 4.6800-8290 and older. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Dimensions and Weight | ||
| H x L | 2.71" x 6.6" | |
| Weight | 0.5 lbs | |
| Tested Motherboards and Servers | ||
| Motherboards | X10SRi-F:https://www.supermicro.com/products/motherboard/xeon/c600/X10SRi-F.cfm | |
| X10SRW-F:https://www.supermicro.com/products/motherboard/xeon/c600/X10SRW-F.cfm | ||
| X9SRH-7F *:https://www.supermicro.com/products/motherboard/xeon/c600/X9SRH-7F.cfm | ||
| X9DR3-LN4F+ *:https://www.supermicro.com/products/motherboard/xeon/c600/x9dr3-ln4f_.cfm | ||
| X9DRW-CF31 *:https://www.supermicro.com/products/motherboard/xeon/c600/x9drw-cf31.cfm | ||
| X9DRT-PIBQ *:https://www.supermicro.com/products/motherboard/xeon/c600/X9DRT-PIBQ.cfm | ||
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-S3108L-H8iR.pdf ] | |
| Driver | [ https://www.supermicro.com/wdl/driver/SAS/Broadcom/3108/Driver/ ] | |
| Firmware | [ https://www.supermicro.com/wdl/driver/SAS/Broadcom/3108/Firmware/ ] | |
| Tested Hard Drives | ||
| Tested HDD/SSD | [ Tested HDD List ] Note: System level compatibility is required when installed to systems.:https://www.supermicro.com/en/support/resources/hdd/display?Category=AOC&sz=3.5&ctrl=62 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
