Intel i350 GbE controller with 4 SFP Connectors
Reliable and proven Gigabit Ethernet technology
Asset Management Features with NC-SI for Remote Management

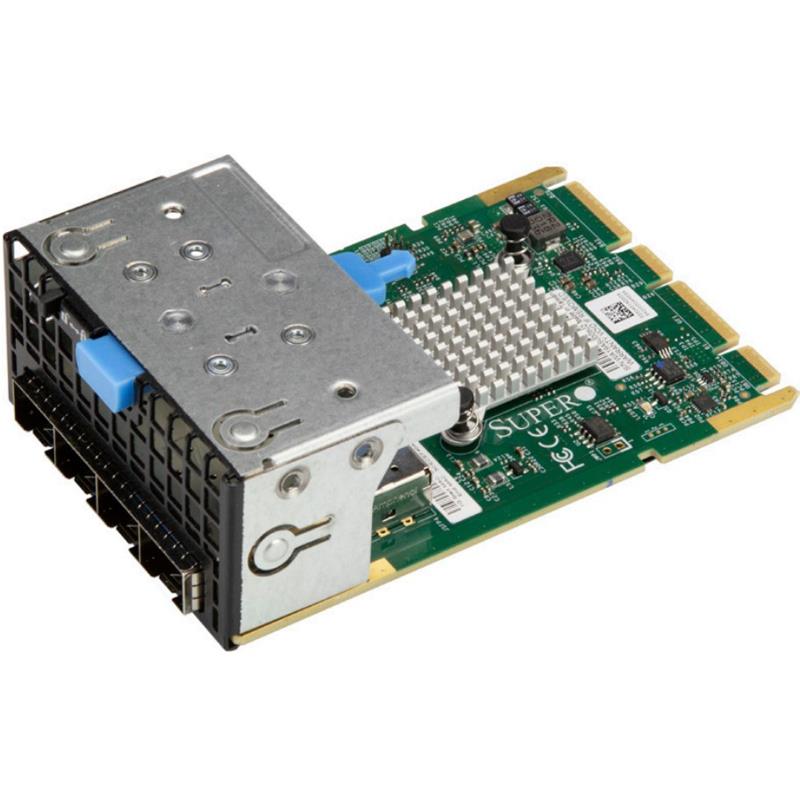

Network Adapter 4x 1 Gigabit SFP Connectors, Base on Intel i350 GbE controller - Form Factor: Advanced I/O Module (AIOM) with a 1U height bracket - RoHS Compliant 6/6
The Supermicro Advanced I/O Module (AIOM) Provides Ultimate Choice In Adapters
The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-AG-I4S is a flexible and scalable GbE controller providing 4 SFP ports. Based on Intel GbE network controller i350.
| Main Specifications | ||
| Device Type | Add-On-Card | |
| Form Factor | Advanced I/O Module (AIOM) | |
| Interface | PCI-E 2.1 x4 | |
| Power (W) | 4.4W | |
| Connectivity | ||
| Connectors | 4x SFP | |
| Performance | ||
| Internal Data Rate | 1Gbps | |
| Networking | ||
| Controller Type | Intel i350-AM4 | |
| Ethernet | IEEE 802.3 auto-negotiation for speed, duplex, and flow control, IEEE 802.3x and 802.3z compliant flow control support, Automatic cross-over detection function (MDI/MDI-X), 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant, IEEE 1588 protocol and 802.1AS implementation | |
| Virtualization Features | PC-SIG SR-IOV support, VM to VM Packet forwarding (Packet Loopback), Flexible Port Partitioning, IEEE 802.1q VLAN support, IEEE 802.1q advanced packet filtering, Jumbo Frames support | |
| Performance | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage, Low Latency Interrupts, Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage, Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments, Intelligent interrupt generation | |
| Management Features | Preboot eXecution Environment (PXE) support, iSCSI Remote Boot Support, Asset Management support on Supermicro® platforms, NC-SI for remote management | |
| Software / System Requirements | ||
| OS Supports | Windows, RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMWare | |
| Environmental | ||
| Operating Environment | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Miscellaneous | ||
| Compliant Standards | RoHS Compliant 6/6 | |
| Bracket Included | 1U height bracket | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
