| Add-on Card |

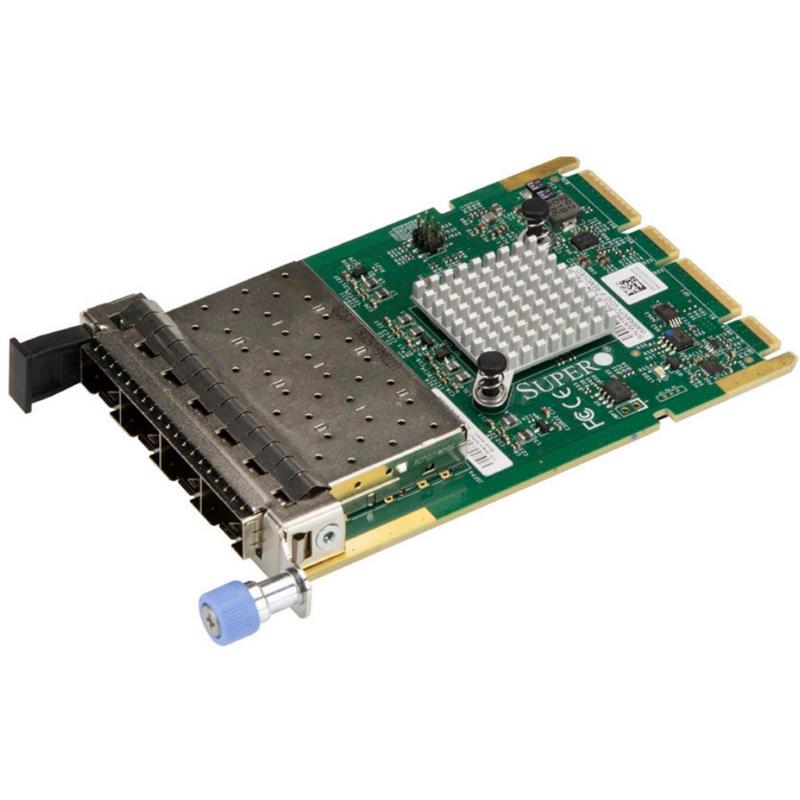

| Add-on Card | The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-AG-i4S is a flexible and scalable GbE controller providing 4 SFP ports. Based on Intel GbE network controller i350, the AOC-AG-i4S is designed with performance enhancing features and power management technologies. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-AG-i4S_i4SM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-AG-i4S_i4SM.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel & folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Specifications |
| Ethernet Features: | IEEE 802.3 auto-negotiation for speed, duplex, and flow control |
| IEEE 802.3x and 802.3z compliant flow control support |
| Automatic cross-over detection function (MDI/MDI-X) |
| 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant |
| IEEE 1588 protocol and 802.1AS implementation |
| Power Management and Efficiency: | Energy Efficient Ethernet (EEE) |
| DMA Coalescing reduces platform power consumption |
| LAN disable function |
| Low Power Link Up – Link Speed Control |
| Active State Power Management (ASPM) support |
| Virtualization Features: | PC-SIG SR-IOV support |
| VM to VM Packet forwarding (Packet Loopback) |
| Flexible Port Partitioning |
| IEEE 802.1q VLAN support |
| IEEE 802.1q advanced packet filtering |
| Jumbo Frames support |
| Performance Features: | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage |
| Low Latency Interrupts |
| Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage |
| Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments |
| Intelligent interrupt generation |
| Management Features: | Preboot eXecution Environment (PXE) support |
| iSCSI Remote Boot Support |
| Asset Management support on Supermicro® platforms |
| NC-SI for remote management |
| OS Support: | RedHat Linux |
| SUSE Linux |
| FreeBSD |
| UEFI |
| VMWare |
| Windows |
| Power Consumption: | Typical 3.7W; Maximum 4.4W |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Physical Dimensions: | Advanced I/O Module (AIOM) Form Factor |
| Card PCB dimensions: 115mm (4.528in) x 76mm (2.992in) (D x W) |
