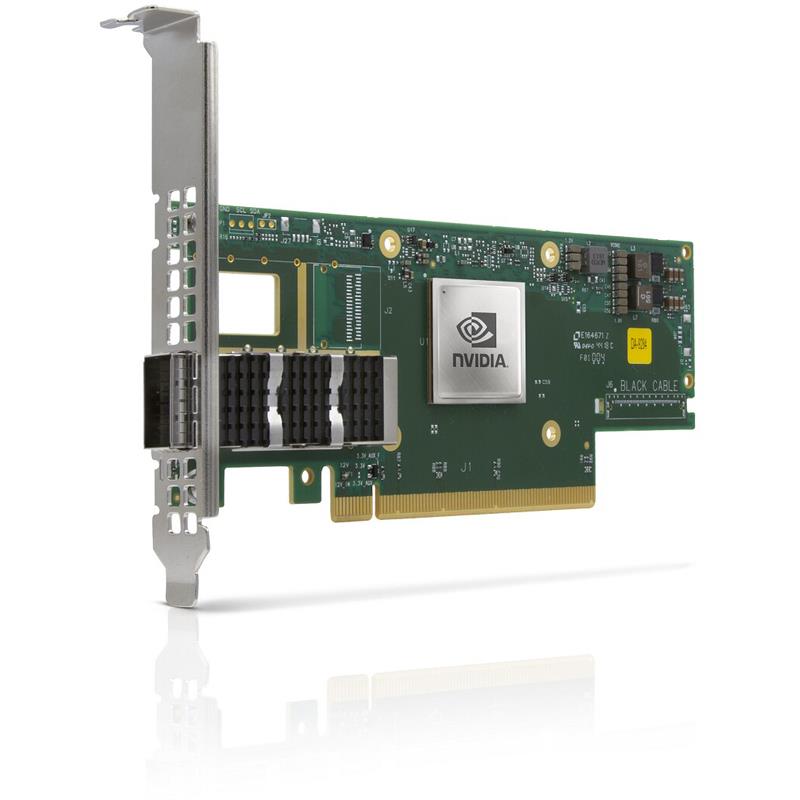

  2. Supermicro AOC-653105A-ECAT ConnectX-6 100Gb/s InfiniBand Ethernet Adapter Card Gen 4 PCIe x16 (16GT/s) Single-Port QSFP56 Connectors
Supermicro AOC-653105A-ECAT ConnectX-6 100Gb/s InfiniBand Ethernet Adapter Card Gen 4 PCIe x16 (16GT/s) Single-Port QSFP56 Connectors

Supermicro AOC-653105A-ECAT ConnectX-6 100Gb/s InfiniBand Ethernet Adapter Card Gen 4 PCIe x16 (16GT/s) Single-Port QSFP56 Connectors

  • Block-level XTS-AES mode hardware encryption

  • Single-port QSFP56 - PCIe Gen 3.0 and Gen 4.0 support

  • Best-in-class packet pacing with sub-nanosecond accuracy

  • Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports

Network Adapter Mellanox ConnectX-6 VPI PCI-E 4.0 x16, 1-port QSFP56 of 100Gb IB or 100GbE, InfiniBand and Ethernet connectivity: HDR100, EDR, FDR, QDR, DDR, SDR

Benefits


  • Industry-leading throughput, low CPU utilization, and high message rate

  • Highest performance and most intelligent fabric for computing and storage infrastructures

  • Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)

  • Mellanox Host Chaining technology for economical rack design

  • Smart interconnect for x86, Power, Arm, GPU, and FPGA-based compute and storage platforms

  • Flexible programmable pipeline for new network flows

  • Efficient service chaining enablement

  • Increased I/O consolidation efficiencies, reducing data center costs & complexity

Extra Specifications for Supermicro AOC-653105A-ECAT ConnectX-6 100Gb/s InfiniBand Ethernet Adapter Card Gen 4 PCIe x16 (16GT/s) Single-Port QSFP56 Connectors

Main Specifications
Device TypeNetwork adapter - 1 port
Form FactorLow Profile
InterfacePCI-E 3.0/4.0 x16
Port100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
Networking
Data Link ProtocolGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate100 Gbps
Network / Transport ProtocolTCP/IP, UDP/IP, iSCSI
Expansion / Connectivity
Interfaces & Connections1 x 100Gb Ethernet / 100Gb Infiniband - QSFP28
Software / System Requirements
OS RequiredFreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Miscellaneous
Compliant StandardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
FeaturesAuto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support

Warranty:3 years, 120 days advance replacement (doa)
Coverage:Replacement or repair
Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
