  2. Supermicro AOC-E810-2CQDA2 Ethernet Network Adapter Plug-in card Dual-Port 100GbE

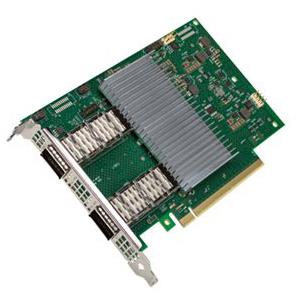

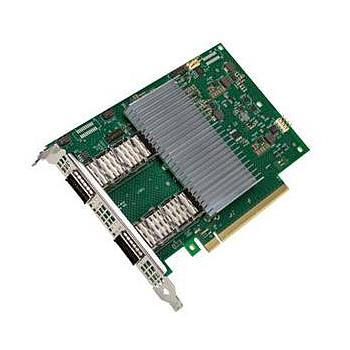

Supermicro AOC-E810-2CQDA2 Ethernet Network Adapter Plug-in card Dual-Port 100GbE

Supermicro AOC-E810-2CQDA2 Ethernet Network Adapter Plug-in card Dual-Port 100GbE

  • Supports both RDMA iWARP and RoCEv2

  • Each QSFP28 port supports up to 100Gbps

  • Designed with Intel Ethernet Controller E810

  • Optimizations for Communications Workloads

Ethernet Network Adapter, Dual-Port QSFP28, Up to 100GbE for bandwidth-intensive workloads, Base on Intel E810, PCI-E 4.0 x16, Full height Bracket, RoHS Compliant - Intel Ethernet 800 Series

$ 1,272.00$ 1,272.001272.0USD

$ 1,272.00

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Meet the demanding bandwidth needs of advanced Communications, Cloud, and Storage deployments and improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads.


    The Intel Ethernet Network Adapter E810-2CQDA2 delivers up to 200Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100Gbps, providing the functionality and throughput of two 100Gbps adapters in a single bifurcated PCIe 4.0 x16 slot.


    Intel Virtualization Technology for Connectivity


    • On-chip QoS and Traffic Management

    • Flexible Port Partitioning

    • Virtual Machine Device Queues (VMDq)

    • PCI-SIG* SR-IOV Capable


    Advanced Technologies


    • iWARP/RDMA

    • RoCEv2/RDMA

    • Intel Data Direct I/O Technology

    • Intelligent Offloads

    • Storage Over Ethernet: iSCSI, NFS

    Extra Specifications for Supermicro AOC-E810-2CQDA2 Ethernet Network Adapter Plug-in card Dual-Port 100GbE

    Main Specifications
    Device TypeNetwork adapter - 2 ports
    Form FactorPlug-in card - Full-height
    Interface (Bus) TypePCI Express 4.0 x16
    PCI Specification RevisionPCIe 4.0
    Dimensions (WxDxH)6.6 in x 4.4 in
    Connector
    ExternalDual-Port QSFP28
    Networking
    Data Link ProtocolGigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
    Data Transfer Rate200 Gbps
    Network / Transport ProtocolDDP, iWARP
    Remote Management ProtocolSNMP, RMON
    Miscellaneous
    Compliant StandardsUL, VCCI, BSMI, FCC, RoHS, KCC, Directive 2011/65/EU, RCM
    Environmental
    Operating EnvironmentMax Operating Temperature: 140 °F
    Min Operating Temperature: 32 °F
    Humidity Range Operating: 0 - 90% (non-condensing)

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
