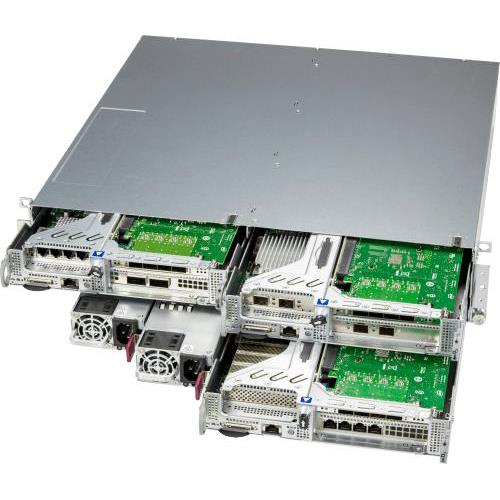

Supermicro SYS-210SE-31A IoT Server 2U Barebone Single Intel Xeon Scalable Processors 3rd Generation
• Multi-Access Edge Computing
• Flex-RAN, Open-RAN vBBU
• Telecom DRAN, CRAN, and Edge Core Application
• Enterprise Edge Computing
Barebone 2U Rackmount SuperServer, Three Nodes, Each Node Supports: Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 32C/64T, Up to 48MB Cache) Supports 85W - 270W TDP CPUs (Air Cooled), Intel C621A chipset, Supports Up to 2TB DDR4-3200MHz RDIMM/LRDIMM in 8 DIMM slots, Intel Optane Persistent Memory 200 Series - 2x NVMe M.2 2280/22110, 1x 1GbE BaseT port, 1 VGA port, 1 COM Port, 1 KVM dongle, 2000W AC Redundant Power Supply, (SYS-210SE-31A + Super X12SPED-F)
1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
2. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
3. 2 PCIe Gen4 x16 FHHL slot and 1 PCIe Gen4 x16 HHHL slot (per node)
4. 2 NVMe M.2 2280/22110 (per node)
5. 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
6. Front-access 2000W AC Redundant Power Supplies (per system)
Extra Specifications for Supermicro SYS-210SE-31A IoT Server 2U Barebone Single Intel Xeon Scalable Processors 3rd Generation
| Management | ||
| Software | SuperDoctor® 5 | |
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | Power status | |
| LAN1 activity | ||
| System information | ||
| Motherboard | ||
| Motherboard | Super X12SPED-F | |
| Processor (per Node) | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Single Socket P+ (LGA-4189) | ||
| Support CPU TDP 85-270W | ||
| Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors. | ||
| Cores | Up to 32C/64T; Up to 48MB Cache | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 1x 1GbE BaseT port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 GbE LAN port (Shared NIC | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 COM) | |
| Others | 1 KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable) | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support, PEPI | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-SE201-R2K07P | |
| Note | 16.9” (430mm) chassis depth | |
| Front access IO design, and tool less serviceability | ||
| Three front hot-swappable nodes with single CPU socket and 8 DIMM design | ||
| Dimensions and Weight | ||
| Height | 3.5" (88mm) | |
| Width | 17.7" (449mm) | |
| Depth | 16.9" (430mm) | |
| Package | 9.5" (H) x 29.5" (W) x 23.2" (D) | |
| Weight | Net Weight: 55.1 lbs (25 kg) | |
| Gross Weight: 70.6 lbs (32 kg) | ||
| Available Color | Silver | |
| Drive Bays / Storage (per Node) | ||
| Drive Bays | N/A | |
| M.2 | 2 M.2 NVMe | |
| M-Key, 2280/22110 | ||
| System Cooling | ||
| Air Shroud | 3 Air Shroud(s) Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 1800W: 200-220Vac / 9.8A-10A / 50-60Hz | |
| 1000W: 100-127Vac / 9A-12A / 50-60Hz | ||
| 2000W: 220-240Vac / 10A-11A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 166A / Min: 0A (220Vac-240Vac) | ||
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Note | Operating Temperature (CPU TDP up to 270W) : Continuous0°C to 35°C (32°F to 95°F) | |
| Operating Temperature(CPU TDP up to 205W): Continuous 0°C ~ 35°C (32°F ~ 95°F), Short term -5°C ~ 55°C (23°F ~ 131°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-210SE-31A | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x16 FHHL slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPED-F | 3 | Super X12SPED-F Motherboard | |
| Motherboard / Chassis | CSE-SE201-R2K07P | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-BPN-SE3N-P | 1 | Backplane for SuperEdge 2U3N,RoHS | |
| Cable | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB | |
| Riser Card | RSC-W-66G4 | 3 | 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS | |
| Riser Card | RSC-WR-6 | 3 | 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 3 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077V | 3 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| *Power Supply | PWS-2K07F-1R | 2 | 1U 2000W 90-264Vac/47-63Hz, wide DC input 180Vdc-300Vdc, 12V | |
| *Power Distributor | PDB-PT201-DSG | 2 | Super Edge pass through board support Ultra powers up to 6KW |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Optional sliding rail kit | MCP-290-00144-1N | $ 92.50 | 0 | 2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5"-33.5" D | ||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 0 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
