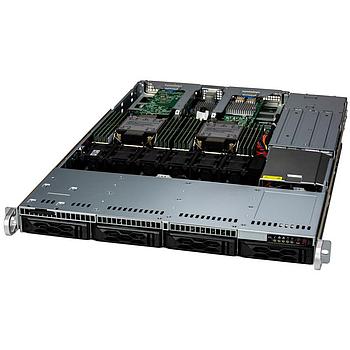

- Supermicro SYS-611C-TN4R CloudDC 1U Barebone Dual 4th Generation Intel Xeon Scalable Processors
Supermicro SYS-611C-TN4R CloudDC 1U Barebone Dual 4th Generation Intel Xeon Scalable Processors
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 1U Rackmount SuperServer 4th Generation Intel Xeon Scalable Processors, Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : Controller SATA3 (6Gbps), RAID 0/1/5/10 support, NVMe, 4x 3.5in Hot-swap NVMe/SATA/SAS drive bays (4x 3.5in NVMe Hybrid), 2x M.2 NVMe (M-Key 2280), Network Connectivity : 1 Dedicated IPMI LAN port, 1 SuperDOM Port, 800W/860W Power Supply - (SYS-611C-TN4R + X13DDW-A)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC). NIC requirement can either be AIOM or PCIe card.

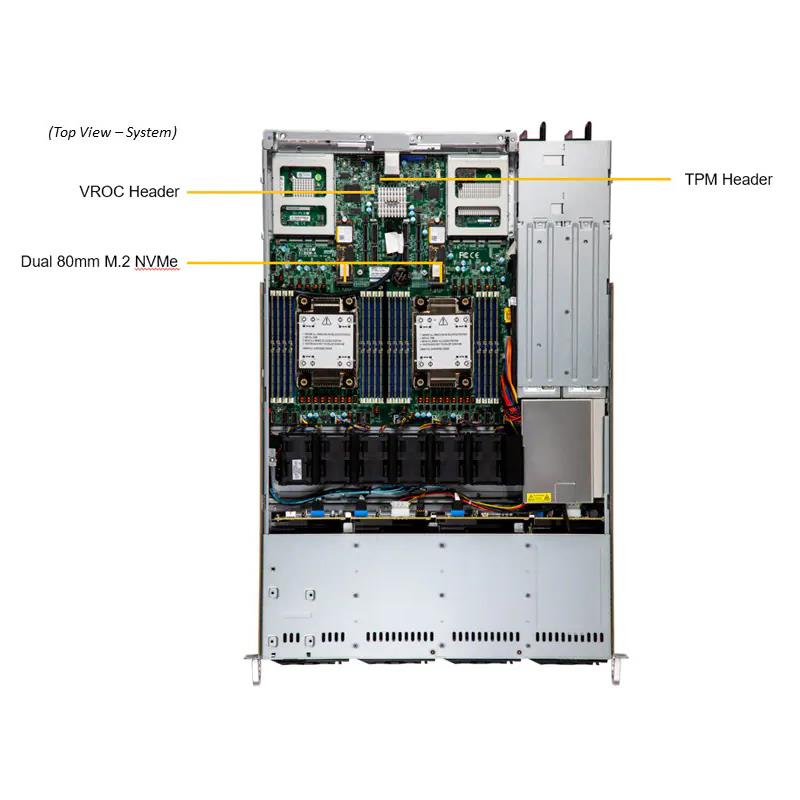

1. Dual sockets E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
2. 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
3. 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2
4. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

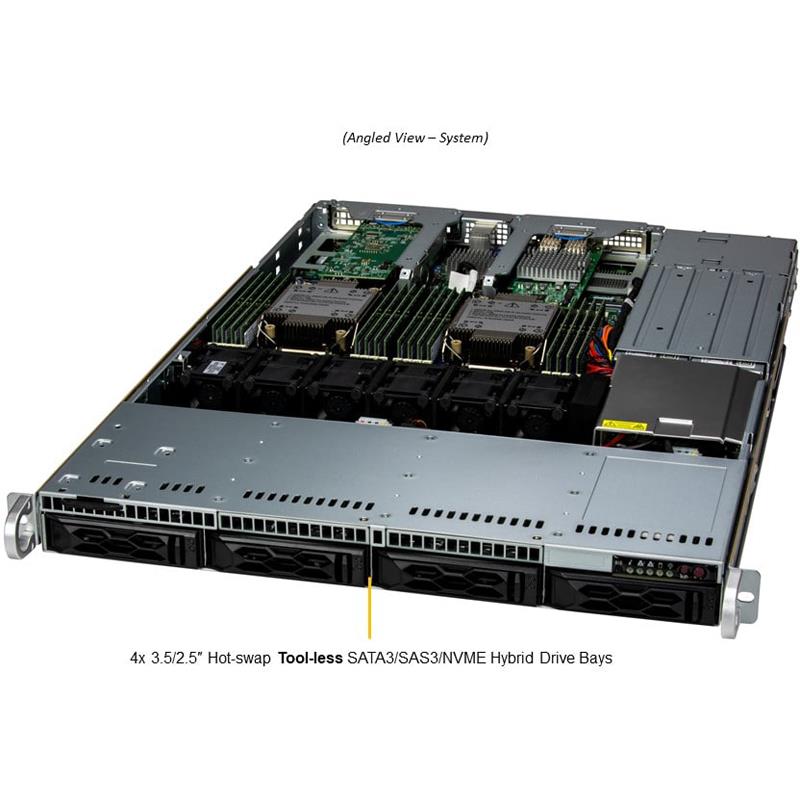

5. 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
6. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
7. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies

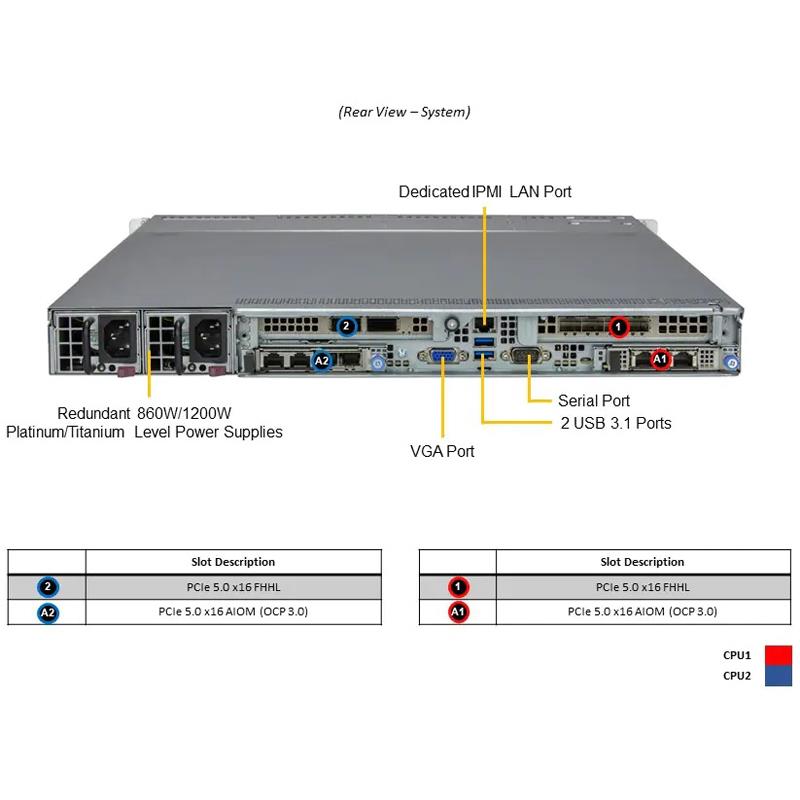

8. 1 VGA, 1 COM, 2 USB 3.0 (rear)
Extra Specifications for Supermicro SYS-611C-TN4R CloudDC 1U Barebone Dual 4th Generation Intel Xeon Scalable Processors
| Product SKUs | ||
| Product SKUs | SYS-611C-TN4R | |
| Motherboard | ||
| Motherboard | Super X13DDW-A | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Certain high TDP CPUs have support conditions. Contact Technical Support or Representative for details | |
| Supports up to 270W TDP CPUs (Air Cooled) | ||
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe; RAID 0/1/5/10 support (*VROC is required) | |
| Chipset | Intel® C741 | |
| Network Connectivity | with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Note | High TDP 200-400G NICs have support conditions due to thermal requirements. | |
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| SCC | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 8 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-LA15TQC-R860AW2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 7.8" (H) x 23.8" (W) x 34.6" (D) | |
| Weight | Net Weight: 25.5 lbs (11.6 kg) | |
| Gross Weight: 41.5 lbs (18.8 kg) | ||
| Available Color | Black front & silver body | |
| Front Panel | ||
| Buttons | Power On/Off | |
| Reset button | ||
| Unit Identifier (UID) | ||
| LEDs | Power status | |
| Network activity | ||
| Drive activity | ||
| Universal Information | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) | |
| Drive Bays / Storage | ||
| Hot-swap | 4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 3.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.) | |
| M.2 | M-Key, 2280 | |
| 2x PCIe 5.0 x4 | ||
| Peripheral Bays | 2x 2.5" 7mm fixed drive bays (optional) | |
| System Cooling | ||
| Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
| 860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
| Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DDW-A | 1 | Super X13DDW-A Motherboard | |
| Motherboard / Chassis | CSE-LA15TQC-R860AW2 | 1 | 1U Chassis | |
| Backplane | BPN-NVME5-LA15-S4 | 1 | 1U 4-Slot 3.5 | |
| Fan | FAN-0163L4 | 6 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| Parts | MCP-150-00015-0B | 4 | Rubber pad, 3.0mm H, 10x10mm | |
| Parts | MCP-160-00028-0B | 1 | Mylar Cable Channel for Cloud-DC, X12 DDW | |
| Parts | MCP-320-00067-0B | 1 | Chassis base Air Foam block set (L+R) for Cloud-DC | |
| Front Panel | MCP-280-00033-0N | 1 | Universal Thermal sensor kit with 80cm I2C cable | |
| Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) | |
| Air Shroud | MCP-310-00105-0B | 2 | Mylar Air Shroud for LA15-AW,LB13-AW,LB16-AW + X12DDW | |
| Manual | MNL-2528-QRG | 1 | 611C-TN4R Quick Reference Guide | |
| Riser Card | RSC-D-6G5 | 1 | 1U LHS DCO Riser card with one PIC-E 5.0 X16 slot,HF,RoH | |
| Riser Card | RSC-DR-6G5 | 1 | 1U RHS DCO Riser card with one PCIe 5.0 X16 slot,HF,Ro | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0087P | 2 | 1U Passive CPU HS for X13 Intel Eagle Stream Platform | |
| *Power Supply | PWS-860P-1R2 | 2 | 1U 860W, Redundant power supply, 54.5mm width, Platinum with | |
| *Power Supply | MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover | |
| *Power Distributor | PDB-PT116-SL8824 | 1 | Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths | |
| *Cable | CBL-CDAT-0680-55 | 1 | NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS | |
| *Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| *Drive Tray(s) | MCP-220-00184-0B | 4 | Black gen-9 tool-less cost-effective 3.5 | |
| *Rear Window | MCP-240-00173-0N | 1 | 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS | |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N | |
| *Rail Set | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 | |
| *Fan Holder | MCP-320-00056-0B | 24 | 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH | |
| *Fan Holder | MCP-320-00066-0B | 1 | Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13 | |
| *Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108/3908/3916 SuperCap Mount | MCP-240-00203-0N | $ 21.00 | 1 | SuperCap mounting bracket for PCIe location | ||
| 3108/3908/3916 SuperCap Mount | MCP-240-21747-0N | 1 | SuperCap mounting card for AIOM location | |||
| 3108/3908/3916 SuperCap Mount | MCP-240-00127-0N | $ 14.50 | 1 | SuperCap mounting tray for 2.5" drive location | ||
| 3808 HBA Card | AOC-S3808L-L8IT | $ 405.50 | 1 | Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA; | ||
| 3808 HBA Card | CBL-SAST-1275A-100 | $ 29.50 | 1 | Slimline x8 (STR) to 4x SATA, 75/75/90/90CM,75CM SB | ||
| 3908 RAID Card | AOC-S3908L-H8IR-16DD | $ 712.00 | 1 | Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60; | ||
| 3908 RAID Card | CBL-SAST-1275A-100 | $ 29.50 | 1 | Slimline x8 (STR) to 4x SATA, 75/75/90/90CM,75CM SB | ||
| 3908/3916 CacheVault | BTR-CVPM05 | 1 | CacheVault for Broadcom 3908/3916 (requires a SuperCap mount) | |||
| Add-on card for additional M.2 | AOC-SLG4-2H8M2 | $ 227.50 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules; RAID 0,1 | ||
| AIOM Network Card(s) | AOC-AG-i2M | 0 | OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM2 | |||
| AIOM Network Card(s) | AOC-A25G-i4SM | 0 | OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Intel® E810-CAM1 | |||
| AIOM Network Card(s) | AOC-ATG-i4SM | 0 | OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCIe 3.0 x8, Intel® XL710-BM1 | |||
| AIOM Network Card(s) | AOC-A25G-m2SM | 0 | OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Mellanox® CX-6 LX | |||
| AIOM Network Card(s) | AOC-AH25G-m2S2TM | 0 | OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCIe x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2 | |||
| AIOM Network Card(s) | - | 0 | (Add 1x MCP-310-00107-0B per card to support this NIC) | |||
| AIOM Network Card(s) | AOC-ATG-i2TM | 0 | OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel® X550-AT2 | |||
| AIOM Network Card(s) | AOC-A25G-b2SM | 0 | OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Broadcom® BCM57414 | |||
| AIOM Network Card(s) | AOC-ATG-i2T2SM | 0 | OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCIe x8, Intel® X710-TM4 | |||
| AIOM Network Card(s) | AOC-A100G-b2CM | 0 | OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Broadcom® BCM57508 | |||
| AIOM Network Card(s) | AOC-ATG-i2SM | 0 | OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCIe 3.0 x8, Intel® X710-BM2 | |||
| AIOM Network Card(s) | AOC-ATGC-i2TM | 0 | OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel® X710-AT2 | |||
| AIOM Network Card(s) | AOC-AG-i4SM | 0 | OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCIe 2.1 x4, Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-ATG-b2TM | 0 | OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Broadcom® BCM57416 | |||
| AIOM Network Card(s) | AOC-AG-i4M | 0 | OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-A25G-i2SM | 0 | OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8,Intel® E810-XXVAM2 | |||
| Cable Management Arm | MCP-290-00152-0N • | 1 | 1U Supermicro Cable Management Arm 2nd Gen | |||
| Fixed 2.5" Drive Kit | CBL-0234L • | 1 | Y split power cable for big 4 pin | |||
| Fixed 2.5" Drive Kit | CBL-SAST-1295LP-100 | $ 31.00 | 1 | SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM | ||
| Fixed 2.5" Drive Kit | CBL-0211L • | 1 | 4PIN-TO-3X SATA POWER CABLE | |||
| Fixed 2.5" Drive Kit | MCP-220-81511-0N | $ 20.00 | 2 | FDD-size tray support for 1x 2.5" 7mm drive | ||
| Intel VROC Key | AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 | |||
| Intel VROC Key | AOC-VROCPREMOD • | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | |||
| Intel VROC Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| NC-SI Cable | CBL-PWEX-1099-34 | 1 | FLAT,IDC 2X11F/P1.27 TO IDC 2X11F/P1.27,NCSI,0.5A,35CM | |||
| NVMe Cables | CBL-MCIO-1228QQM5F-B | 4 | MCIO x4 (STR to STR),28CM,FFC, 30AWG,85OHM,RoHS | |||
| Power Supply Upgrade | PWS-1K27A-1R • | 2 | 1200W 1U 54.5Wx322Lx40H mm redundant Titanium | |||
| SATA Cables | CBL-SAST-1295LP-100 | $ 31.00 | 1 | SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM | ||
| Software | SFT-SDDC-SINGLE | $ 281.00 | 1 | Supermicro Data Center Monitor License | ||
| Software | SFT-DCMS-Single | 1 | Supermicro System Managment Software License | |||
| TPM security module | AOM-TPM-9670V | $ 52.00 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor | ||
| TPM security module | AOM-TPM-9672V-FIPS | $ 74.50 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS; vertical form factor | ||
| TPM security module | AOM-TPM-9672V | $ 68.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller; vertical form factor | ||
| TPM security module | AOM-TPM-9670V-S-FIPS | 1 | SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
